Rich Solar All in One Home Battery Backup System

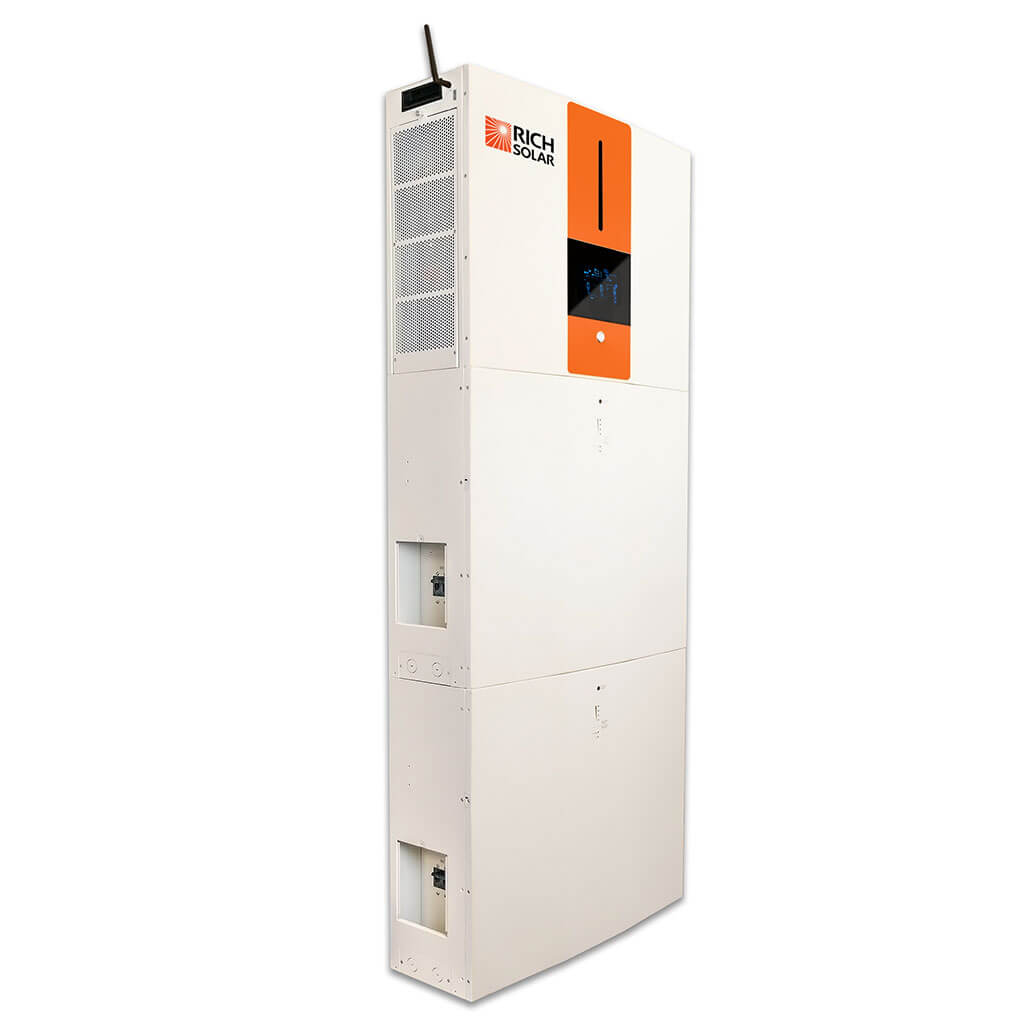

RICH SOLAR All-in-One Energy Storage System

Overview

A compact, integrated solar energy solution that combines inverter, battery, charge controller and smart connectivity in a single cabinet. Designed for clean, reliable off-grid or backup power with straightforward installation and real-time monitoring.

Benefits

• Reduce energy interruptions with dependable battery backup when the grid fails.
• Save space and simplify installation by using a single, self-contained unit instead of separate components.
• Lower utility costs by prioritizing solar and battery power before drawing from the grid.
• Monitor and control the system remotely to save time and avoid unnecessary site visits.
• Scale storage capacity as needs grow using compatible Li?Ion expansion modules.

Features

• Pure sine wave AC output for safe operation with sensitive electronics.
• Works off-grid and supports generator and utility connections.
• Programmable supply priority: PV, Battery or Grid.
• User-adjustable battery charging current and battery-independent design.
• Dual MPPT trackers with up to 120 A solar/AC charging capability.
• Multiple communications: USB, RS232, SNMP, Modbus, GPRS and Wi?Fi.

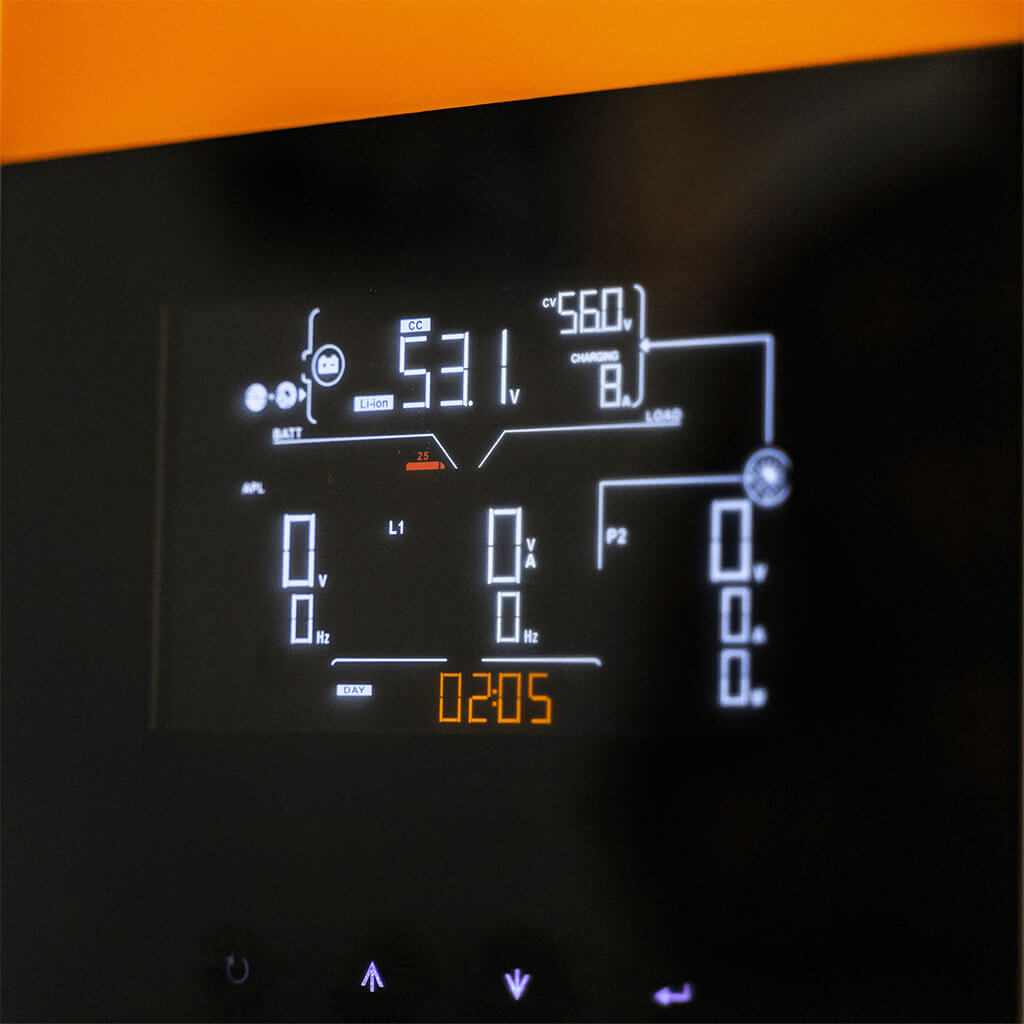

• Mobile monitoring app (Android & iOS) for real-time status and control.
• Scalable Li?Ion battery expansion compatible for larger capacity needs.

Specifications

• Model: RS-A10
• Maximum PV input power: 8000 W
• Rated output power: 6500 W
• Maximum charging power: 6500 W
• MPPT operating range (DC): 90 – 230 VDC
• Maximum PV array open circuit voltage: 250 VDC
• Maximum solar charge current: 120 A
• Number of MPP trackers: 2
• Maximum input current per MPP: 2 × 18 A
• AC input acceptable voltage range: 90–140 VAC (computers); 80–140 VAC (home appliances)
• Maximum AC input current: 60 A
• Battery mode nominal output voltage: 120 VAC
• Maximum conversion efficiency (DC?AC): 93%
• Battery nominal DC voltage: 48 VDC
• Battery maximum charging current: 120 A
• Battery dimensions (D × W × H): 8.4" × 24.4" × 19.7"
• Battery net weight: 99 lb
• Battery capacity: 5120 Wh
• Battery nominal voltage: 51.2 VDC
• Battery full charge voltage (FC): 56 V
• Battery full discharge voltage (FD): 42 V
• Typical battery capacity: 100 Ah
• Max continuous discharging current: 120 A
• Max discharging current: 192 A (1 min)
• Battery protection: Battery Management System (BMS) and breaker
• Float charge voltage: 52.5 V
• Battery charge current (standard): 20 A (0.2 C)
• Battery maximum charge current: 50 A (0.5 C)
• Standard charge method: 0.2 C CC to FC, then CV until current < 0.05 C
• Inner resistance: ? 20 m?
• All-in-one system dimensions (D × W × H): 19.7" × 26" × 49.2"
• All-in-one system net weight: 287 lb
• Compliance & safety standards: IEC 62619; EN 61000?6?3; EN 61000?6?1; UKCA; UN38.3; UL 1741; CSA C22.2 No.107.1?16; FCC Part 15B
