Description

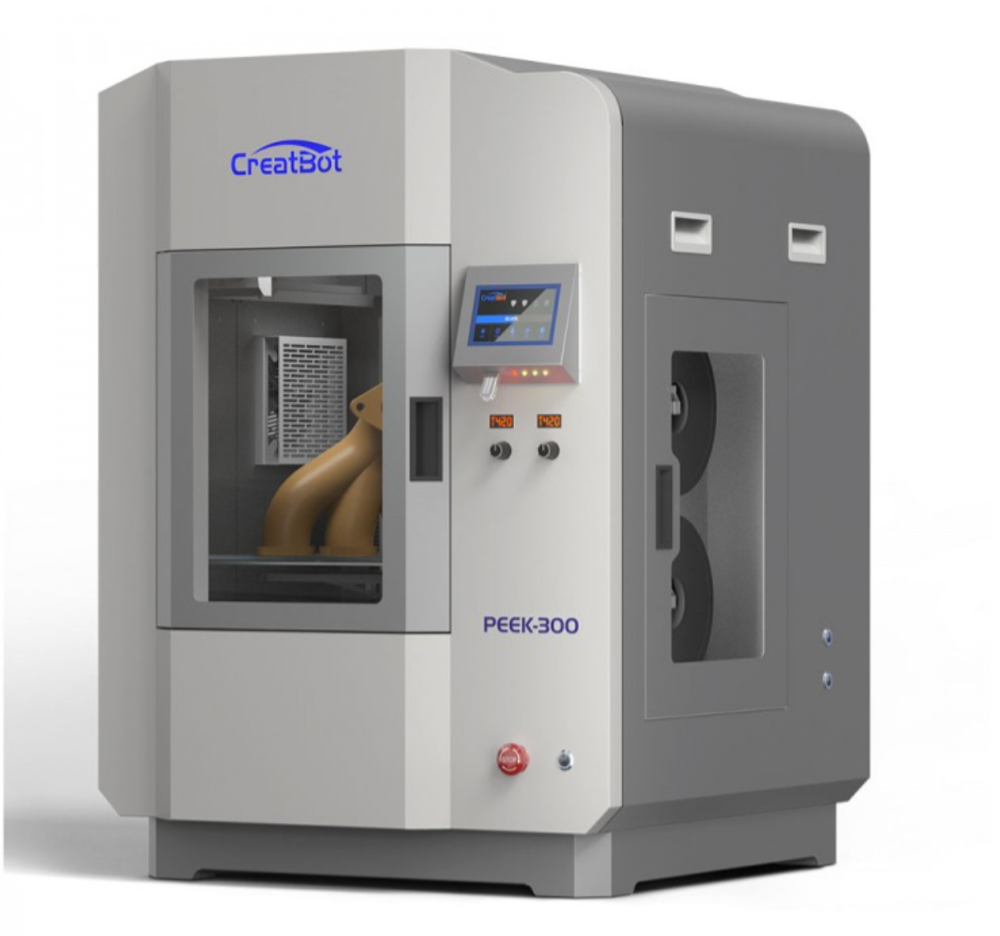

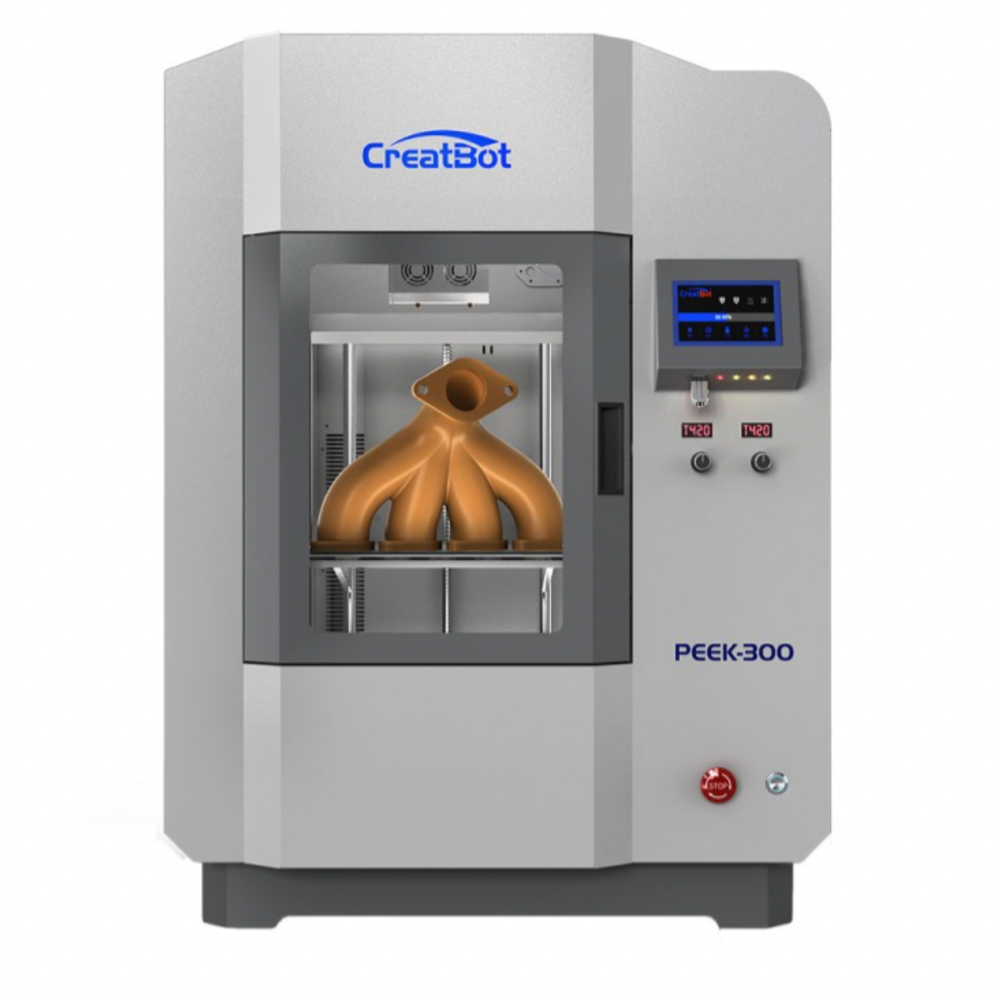

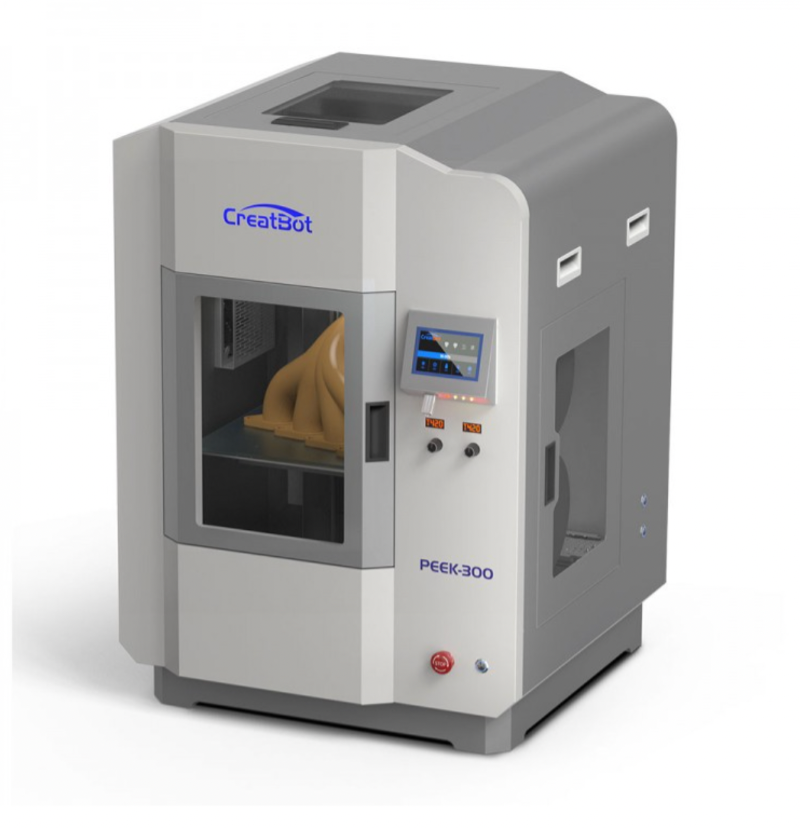

CREATBOT PEEK-300 2ND GENERATION ULTRA HIGH PERFORMANCE HIGH TEMPERATURE Peak Ultra 3D PRINTER
- Ultra-high temp. nozzle/bed
- Advanced Thermal System
- Direct Annealing System
- Water Cooling/Heat Isolation System
- Medical/Industry Application
Direct Annealing Temperature: 0-400°C

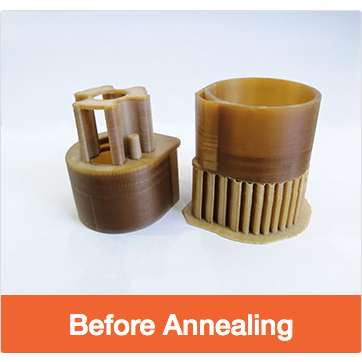

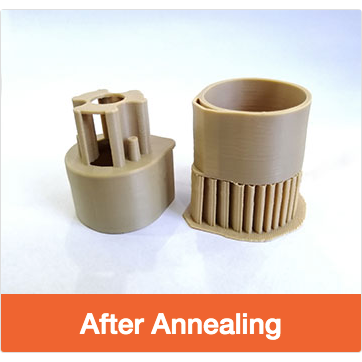

Direct Annealing System (DAS), the world's first and extraordinary technology by CreatBot. The annealing process is instant controllable during printing. It aims to provide the best quality parts in one time without warping and cracking printing of large functional materials. (The technology is patent protected and available by CreatBot only.)
Smart Auto-rising dual extruders 500 °C
The PEEK-300 is equipped with CreatBots new technology smart Auto-rising dual extruders. Water cooling, DAS system, Auto-rising extruders. The dual nozzle temperature up to 500°C. You can print any 3D printer materials in the world.
Hotbed 200 °C
Common but necessary.
Base of printing big models with no warping.
Hot Chamber 120°C
Outstanding and important.
The protector of no cracking printing.

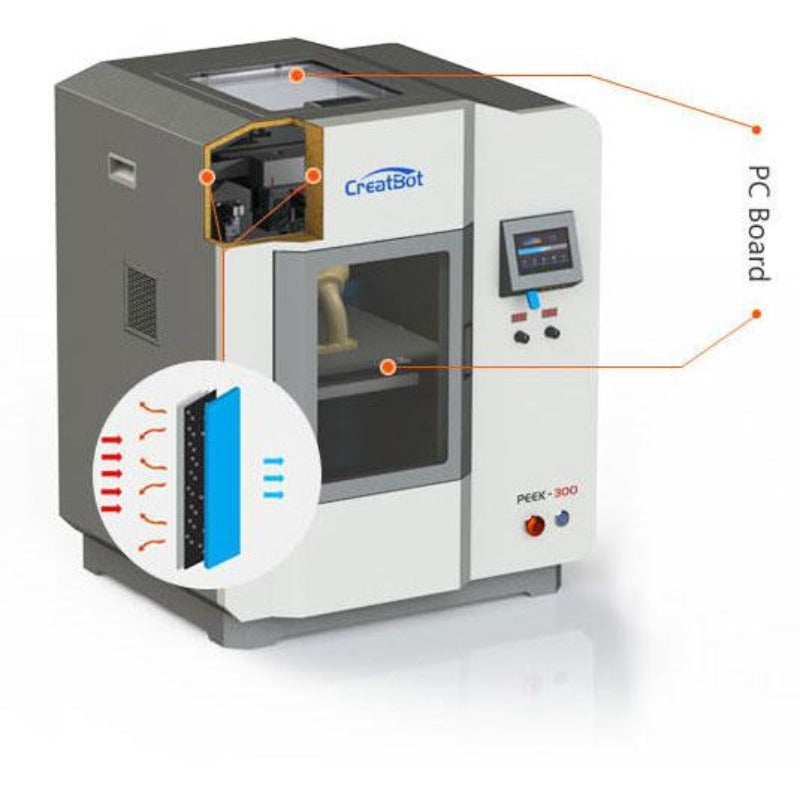

Triple Heat Isolation
Triple heat isolation is made of a double insulation chamber, advanced insulation materials, and vacuum double PC boards. It is a guarantee of ultraperformance and safety.

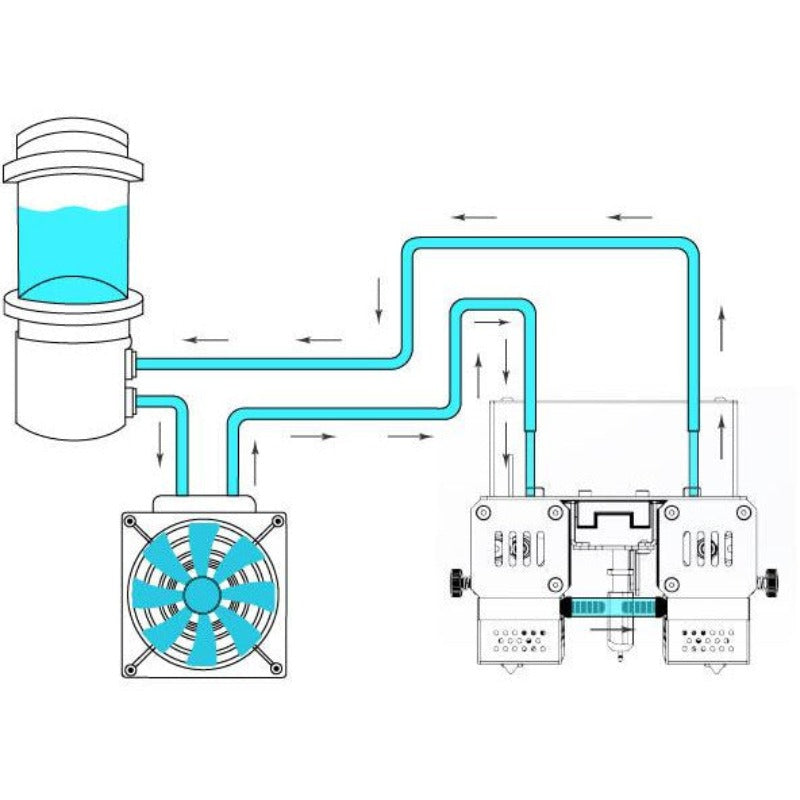

Cooling System
The cooling system is one of the important parts to constitute the whole thermal system. It is made of
(1) liquid cooling. Circulating liquid can be used effectively for a long time.
(2) Air pump cooling. Air pumps provide cold air from outside instead of hot air inside the chamber.
HEPA Air Filtration
The air filter system can absorb impurities and gases that are generated by printing special filament, safer and more environmental protection, which is more suitable for houses, schools, and office spaces.
Resolution 0.04mm
0.04mm is an available resolution for normal plastics, but it is an extraordinary resolution for high warping and high deformation materials. 3D printing high-performance material needs not only high temperature but also better cooling. For high resolution with high small details, high temperature will ruin layers to a mess if heat and cooling are not in a balance.

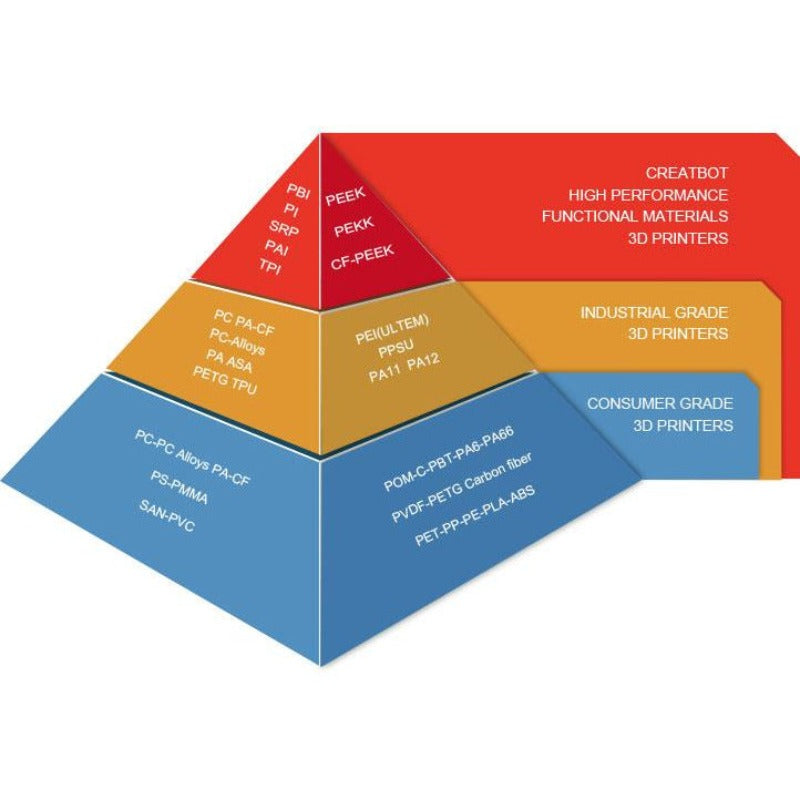

Material Performance Comparison Chart
Printing |
|
| Build Volume | Single Extrusion: 300*300*400 mm Dual Extrusion: 240*300*400 mm |
| Filament Diameter | 1.75mm |
| Number of Nozzles | Dual Extruder |
| Print Speed | 10-150mm/s |
| Nozzle Diameter | 0.4mm (0.3~1.0mm optional) |
| Filament Compatibility | Engineering Plastics: PLA, ABS, ASA, PC, Nylon, PETG, PVDF, TPU, Carbon Fiber； High temperature material: UltraPA, UltraPA-GF, UltraPA-CF, PPSU, PEI (ULTEM) Ultra-performance material: PEEK, CF-PEEK (Carbon fiber), GF-PEEK (glass fiber), PEKK, etc. |
Software |
|
| Software | Creatware, Simplify3D, Cura, Slic3r |
| Operating Systems | Win7/8/10 |
| Print File Type | STL, OBJ, AMF, Gcode |
Special Function |
|
| Outage Restored | Save data when power is off |
| Filament Detection | Pause printing when filament runs out |
| Direct Annealing System (DAS) | The annealing process is instantly controllable during printing. It aims to provide the best quality parts in one time without warping and cracking printing of large, functional materials. |
| Heat insulation | Triple heat insulation |
| Emergency stop switch | Support emergency stop |
| High-temperature accessories | High-temperature resistance motors, linear rails, belts, and circuits to ensure long high-temperature printing. |
Temperature |
|
| Nozzle Max. Temperature | 500℃ |
| Chamber Temperature | 120℃ |
| Platform Max. Temperature | 200℃ |
| Direct Annealing Temperature | 0~400℃ |
Mechanical |
|
| Cooling | Air pump cooling & water cooling |
| Platform | PCB aluminum + PEEK print board |
| Positioning Precision | X Y axis 0.0127mm, Z axis 0.00125mm |
| Extruder | Directly Drive |
| Machine Construction | Fully enclosed hot chamber |
| Bed Leveling | Manually/Automatic |
Electrical |
|
| Input Power | 200V~240V, 20A |
| Rated Power | 4600W |
| Screen | 4.3'' full-color touch screen, multi-language |
| Print Method | USB Connectivity/USB Disk |
Size & Weight |
|
| Machine Size | 650*600*750 mm |
| G.W | 100 kg |
| Packing Size | 820*720*1080mm |
| N.W | 130 kg |
