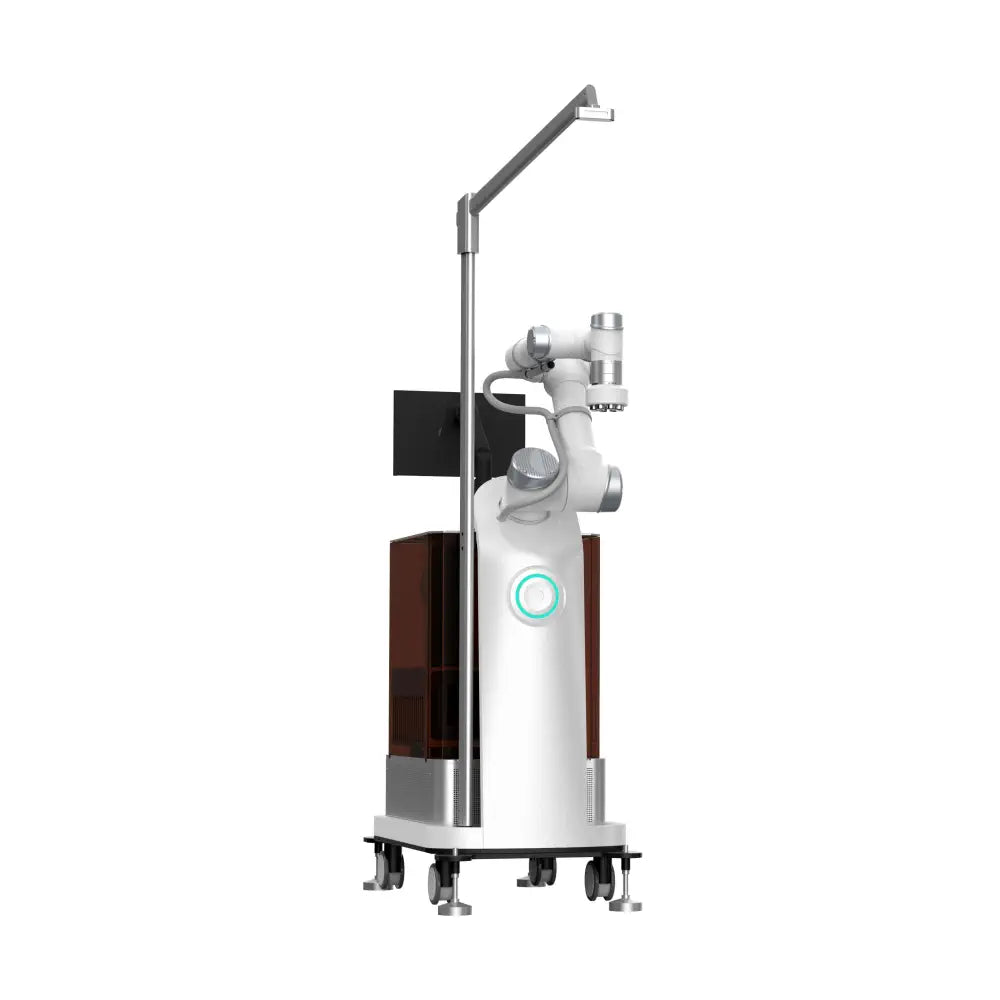

ATEAGO M2 RF Therapy Massage Cobot

Overview

The ATEAGO M2 is a six-joint collaborative robotic arm designed for RF-assisted massage, skin tightening and physiotherapy applications. It combines an independent end-force sensor, a constant-force control algorithm and an AI vision system to deliver repeatable, adjustable treatments while providing built-in safety and customizable treatment options.

Benefits

• Saves clinician time by automating repetitive massage and positioning tasks.
• Delivers consistent pressure and motion so treatments are more uniform session-to-session.
• Reduces practitioner fatigue by handling sustained or precise force delivery.
• Improves patient safety with vision-based monitoring, dynamic tracking and an emergency stop.
• Offers flexible treatment protocols so sessions can be tailored to different body areas and therapeutic goals.

Features

• Six-joint electric-drive collaborative robotic arm with flexible constant-force control.
• Independent end-force sensor for real-time force feedback and automatic adjustment.
• Advanced AI vision system with multi-view protection for object/body recognition and tracking.
• RF treatment capability with multiple tip types: single-polar RF, multi-polar RF, sole and gun.
• Interchangeable treatment heads (up to four types) to support subcutaneous treatment and skin tightening.
• Precise navigation and dynamic tracking for automated path following and target maintenance.
• Customizable parameters: choice of massage head, treatment area, path, duration, strength and speed.
• Safety features including RF protection mechanisms and an emergency stop switch.
• Program memory supporting long single-track sequences (up to 25,000 nodes).

Specifications

• Robotic arm: 6-joint electric drive
• Working radius: ? 0.92 m
• Standard load capacity: ? 5 kg (towing); downward pressure ? 7 kg
• Limit load capacity: ? 7 kg (towing); downward pressure ? 8 kg
• Force sensing range: up to ±10 kg; resolution < 0.1 kg
• Single-track capacity: 25,000 nodes (runtime > 3 minutes for long tracks)
• Maximum running speed: ? 0.5 m/s
• Tip types: single-polar RF, multi-polar RF, sole, gun
• Tip sizes (examples): 70 × 70 × 55 mm; 100 × 70 × 60 mm; 100 × 75 × 80 mm; 138 × 55 × 150 mm
• RF frequency: 470 kHz
• RF power: 200 W
• Mainframe dimensions: 1000 × 500 × 1300 mm
• Net weight: 130 kg
• Included accessories (standard): robot body, long support rod, short support rod component, power cord, top camera, four types of hand tools, negative plate bottom box, magnetic switch pull cord, screw kit, M8 hex wrench
• Support: online technical support available
