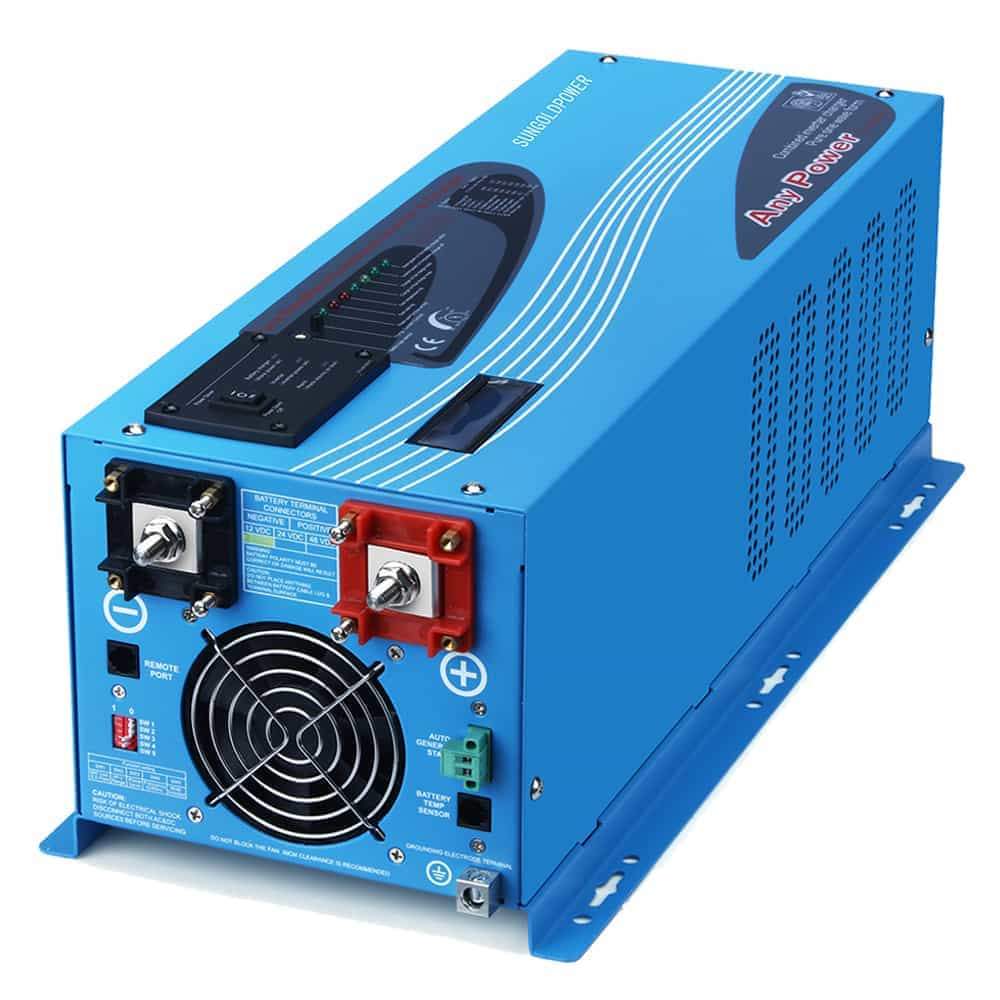

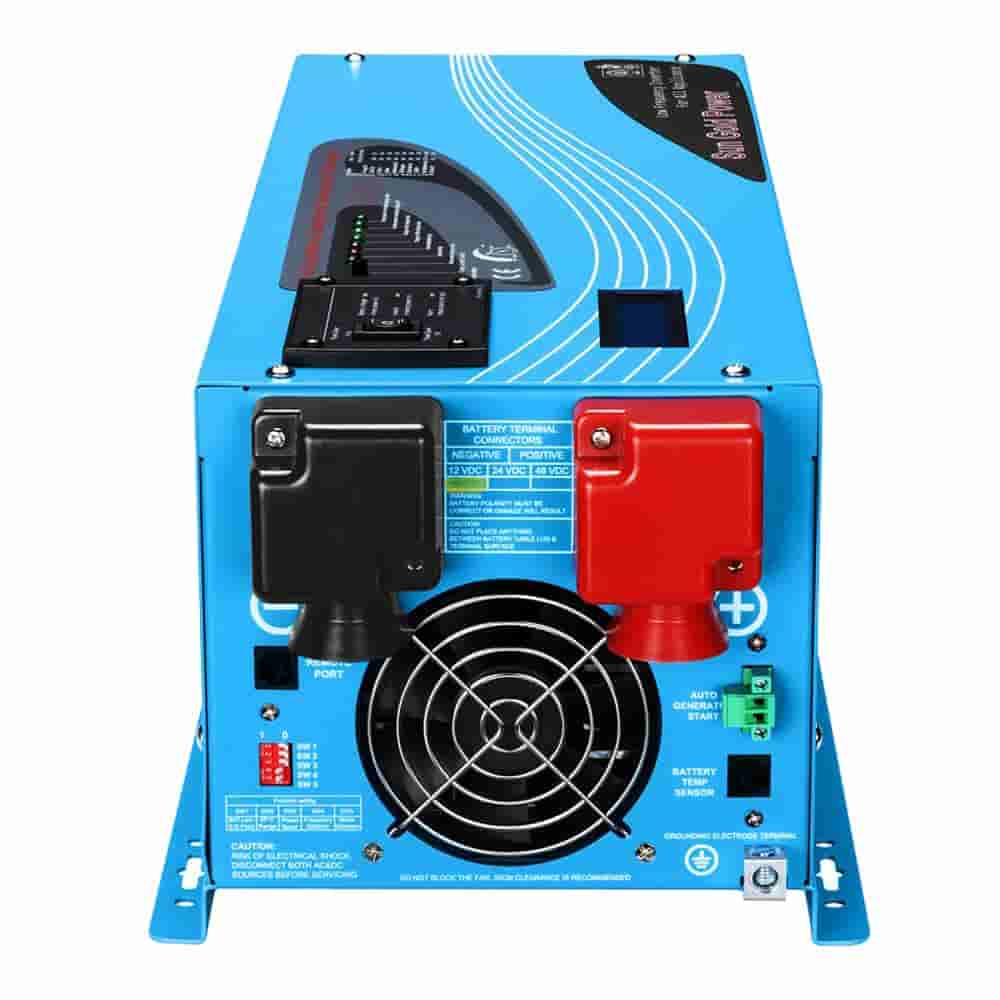

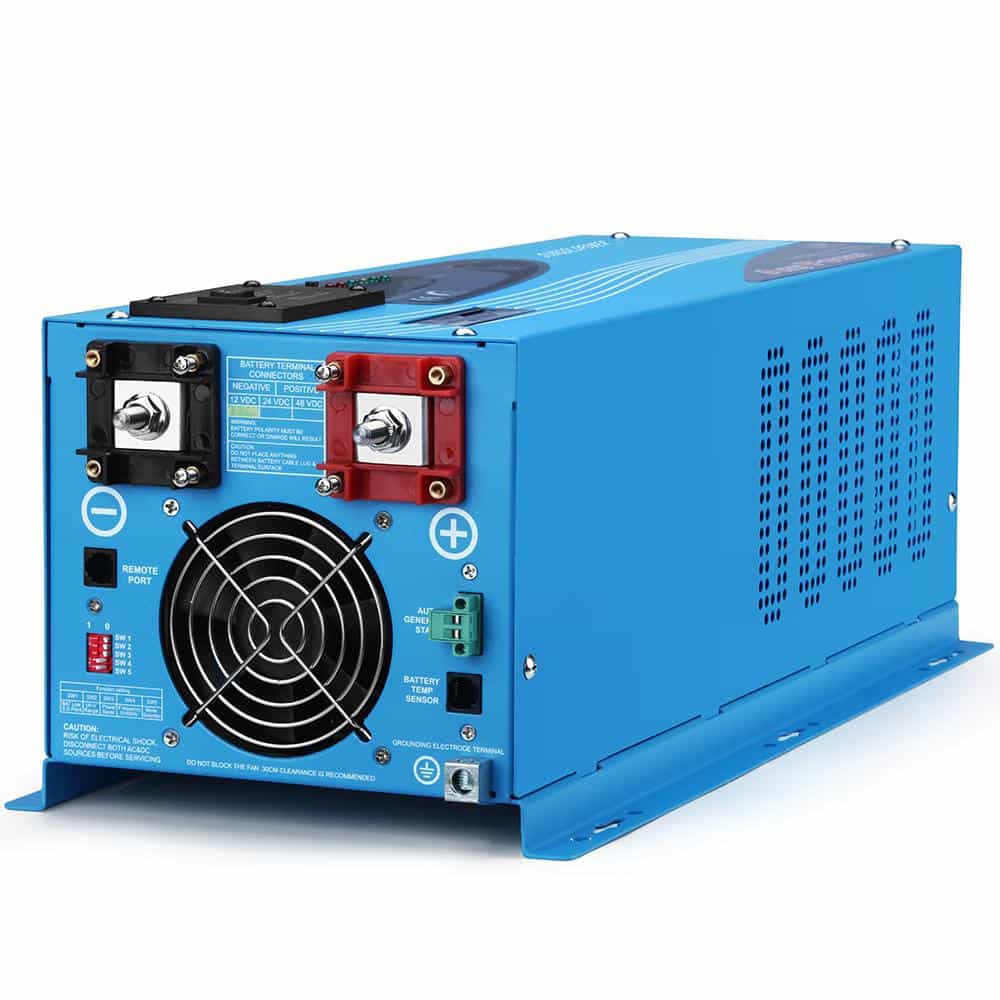

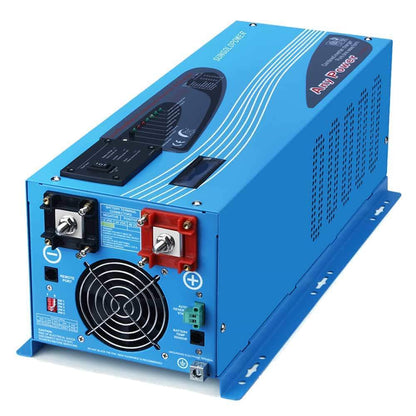

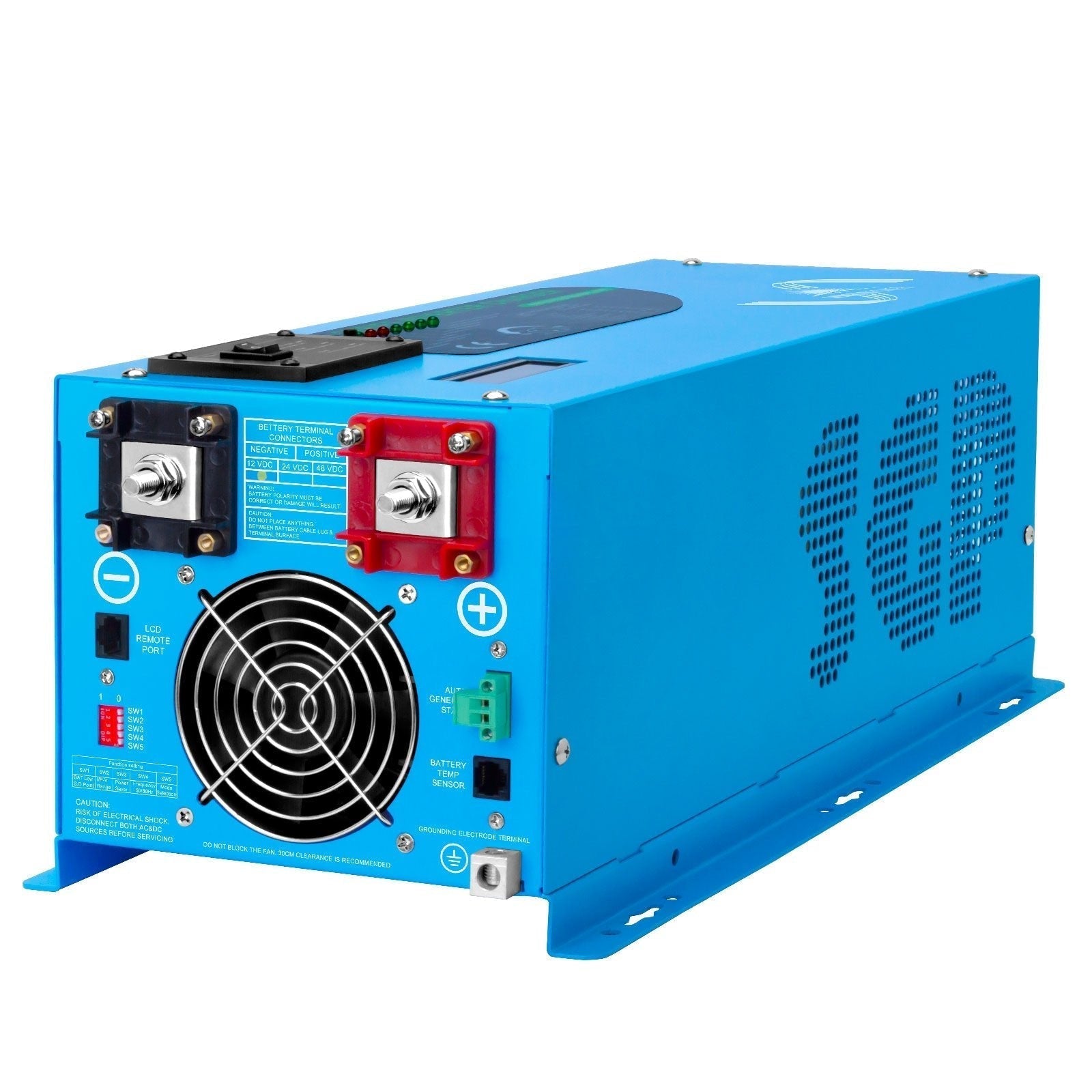

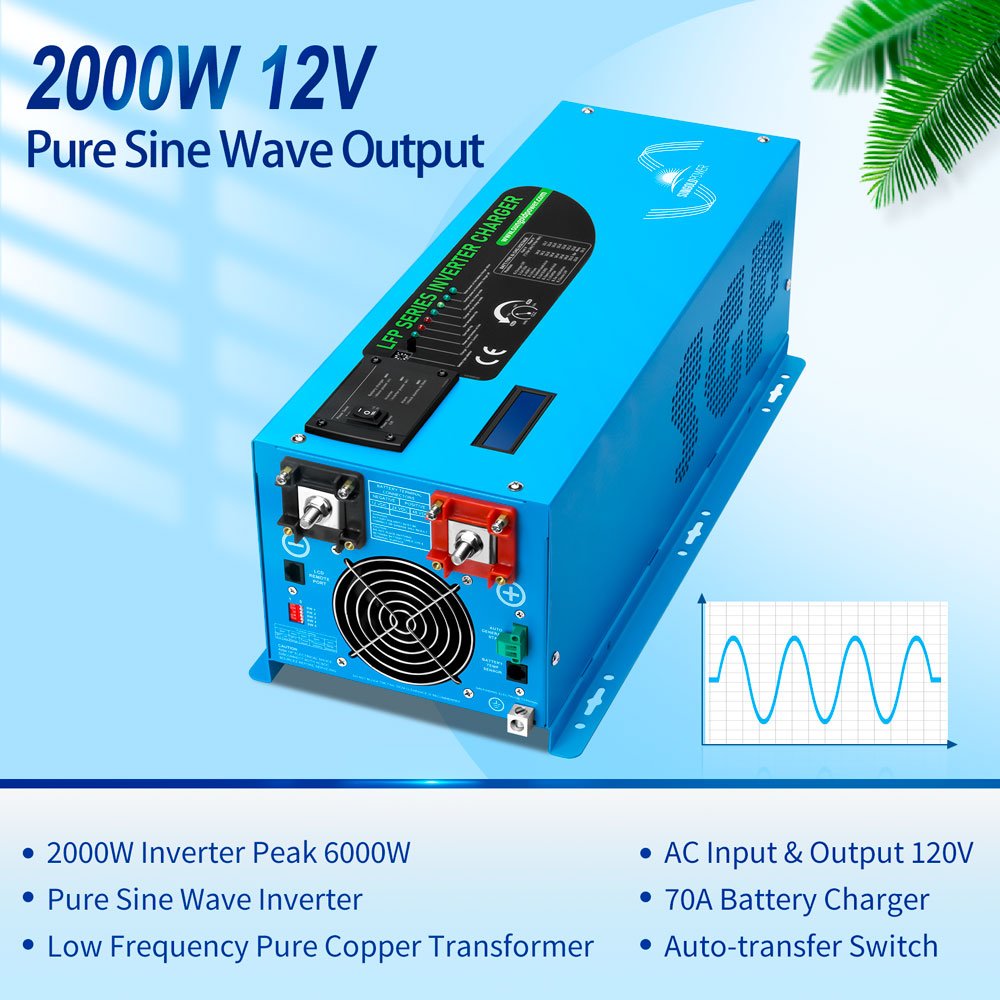

2000W 12V Pure Sine Wave Inverter with Charger - LFP Series

Overview

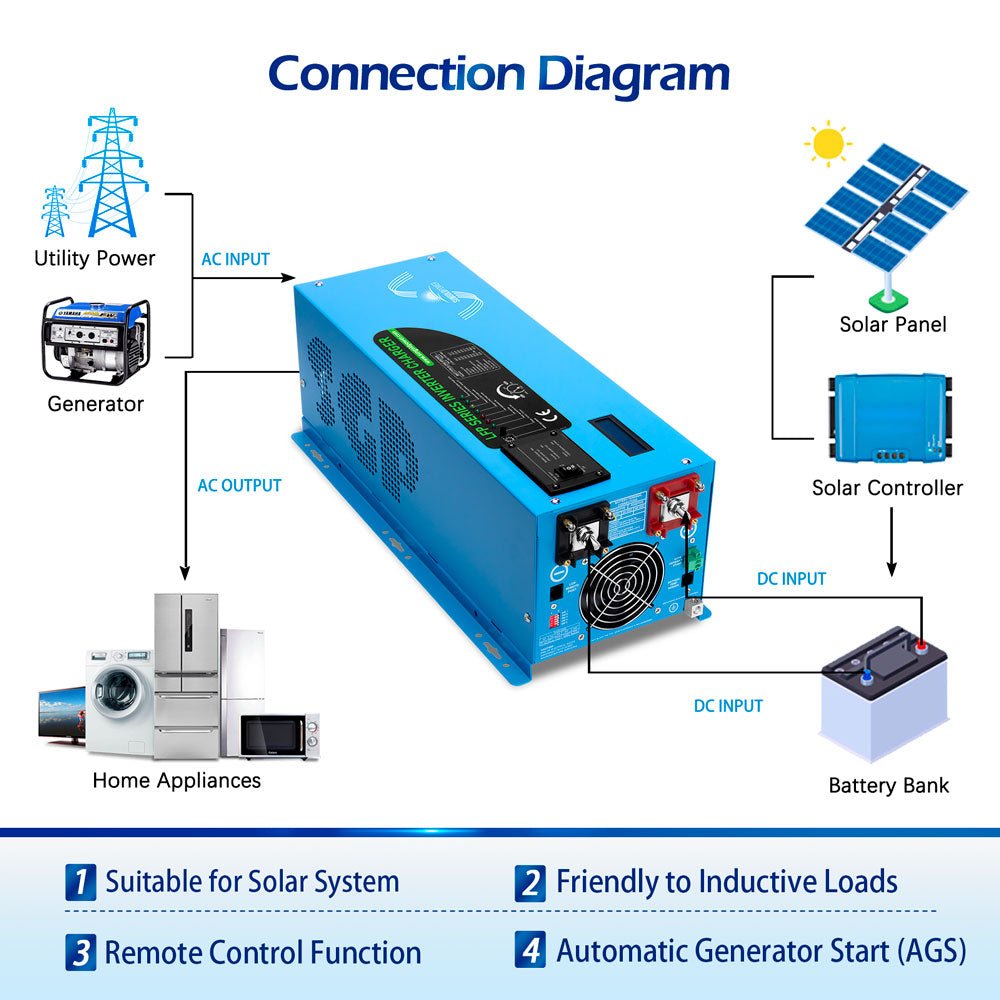

The LFP Series 2000W Pure Sine Wave Inverter is a versatile solution that integrates an inverter, an AC charger, and an automatic transfer switch into a single, efficient system. Its low-frequency design and minimal idle current provide consistent 120VAC power for your appliances while offering smart control features for ease of use.

Benefits

• Maintain the functionality of your household appliances with reliable 120V power.
• Enjoy a continuous power supply thanks to automatic AC/Battery priority management.
• Monitor and control operations remotely for added convenience.
• Optimize battery management with adjustable charging current options.
• Experience minimized downtime with automatic generator start when battery levels are low.

Features

• 2000W Low-Frequency Pure Sine Inverter with built-in charger.
• AC/Battery Priority Selector facilitates flexible energy use.
• Automatic Generator Start ensures reliable backup power.
• Includes GFCI socket for enhanced safety and convenience.
• Compatible with various household appliances.

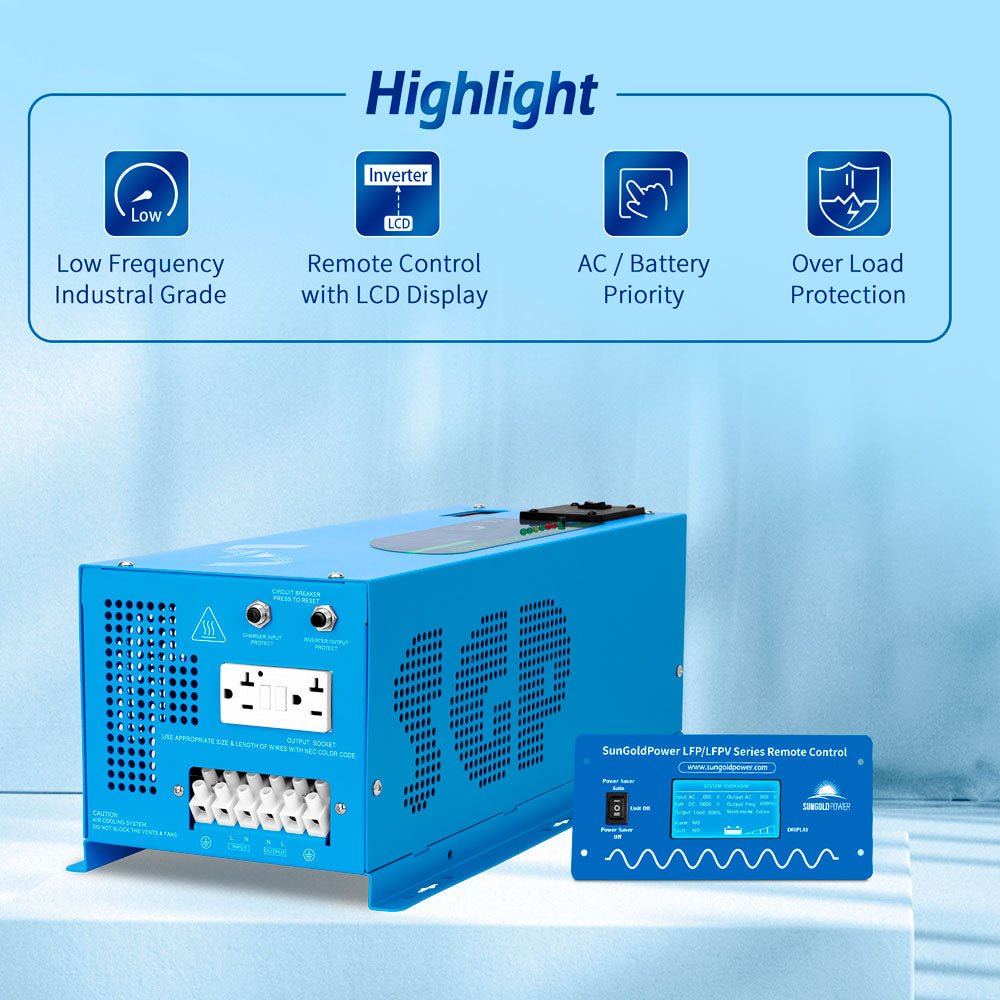

• Comes with an LCD display, remote control, and BTS cable.
• Designed for low idle consumption to promote energy savings.

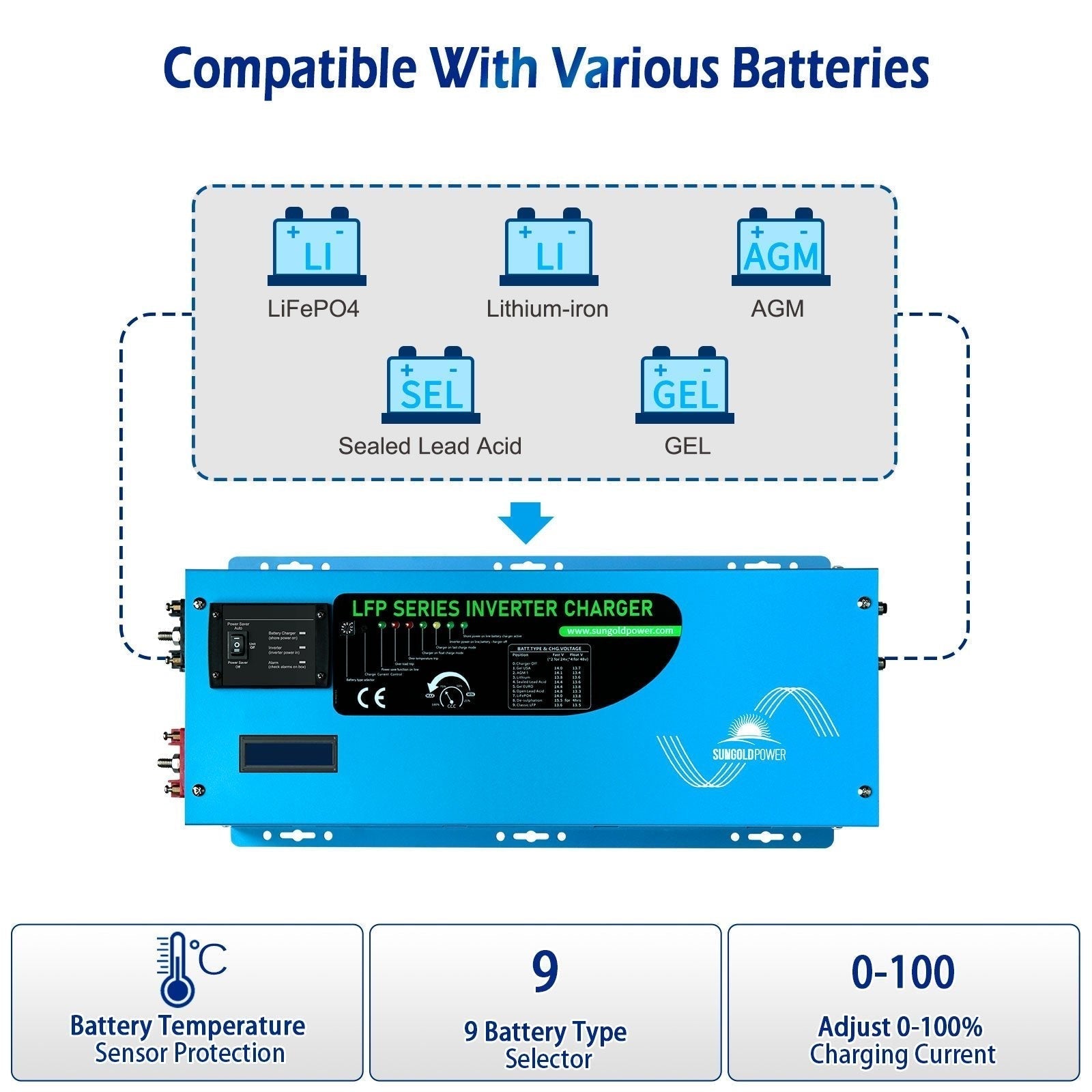

• Seven battery type settings for tailored charging options.
• Multi-stage smart charger with an adjustable output of 70±5A.
• Rapid transfer time of 10ms for seamless switching between power sources.

Specifications

Inverter Output

• Continuous Output Power: 2000W
• Surge Rating: 6000W for 20 Seconds
• Output Voltage: 120VAC, 60Hz
• Output Waveform: Pure Sine Wave (bypass mode)
• Typical Transfer Time: 10ms maximum
• Nominal Efficiency: greater than 88%

DC Input

• Nominal Input Voltage: 12Vdc
• Minimum Start Voltage: 10Vdc
• Low Battery Alarm Range: 10.5–11.0Vdc

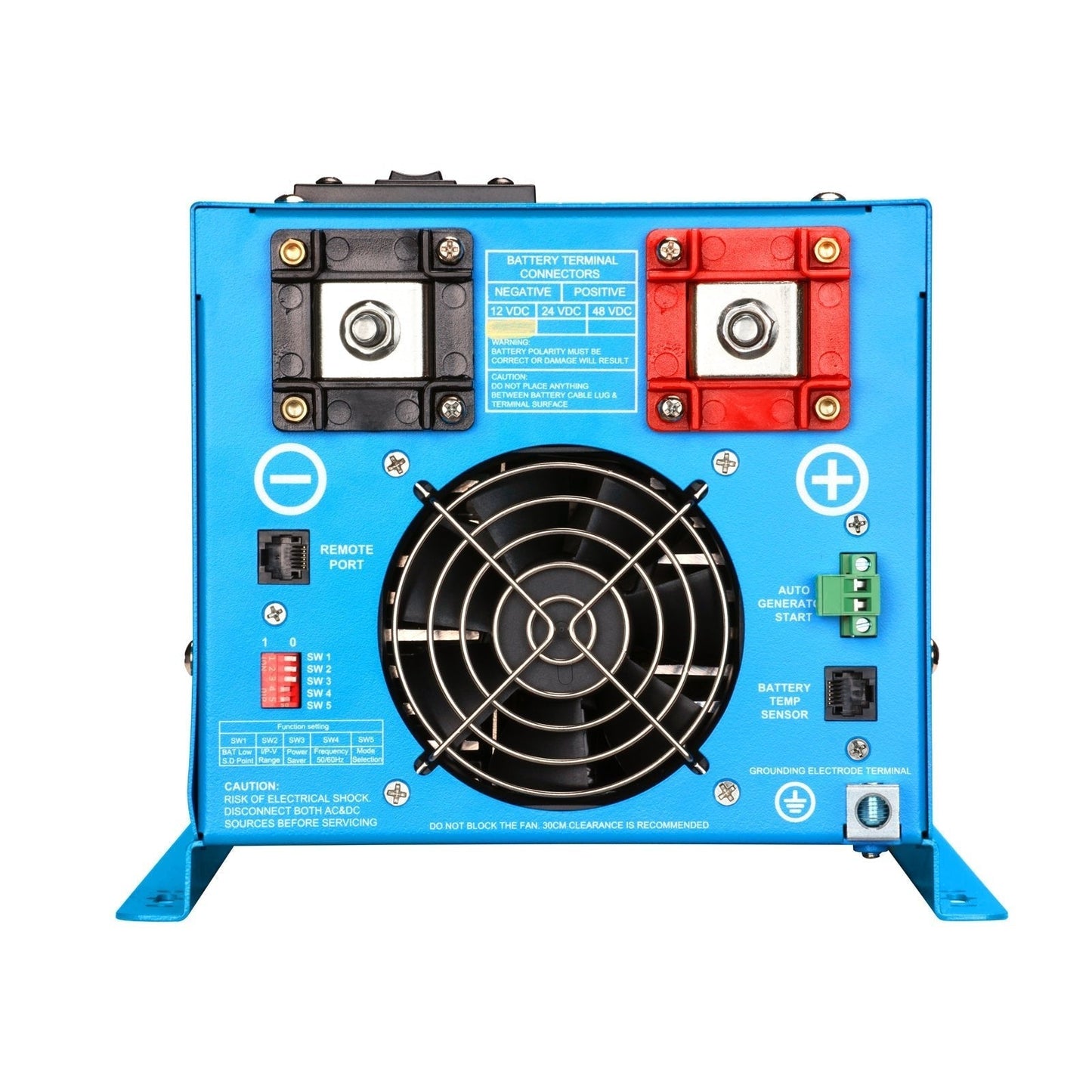

• Low Battery Trip Point: 10–10.5Vdc (selectable via SW1)
• High Voltage Alarm: 16Vdc
• Low Battery Voltage Restart: 13Vdc
• Idle Consumption: 25W
• Power Saver Mode Idle Consumption: 12W

AC Charger

• Charger Rate: 70±5A
• AC Input Range (Grid or Generator): 90–135VAC / 100–135VAC (selectable via SW2)
• Overcharge Protection Shutdown: 15.7V
• Selectable Charge Setting: adjustable from 0–100%
• Three-step intelligent battery charger included.

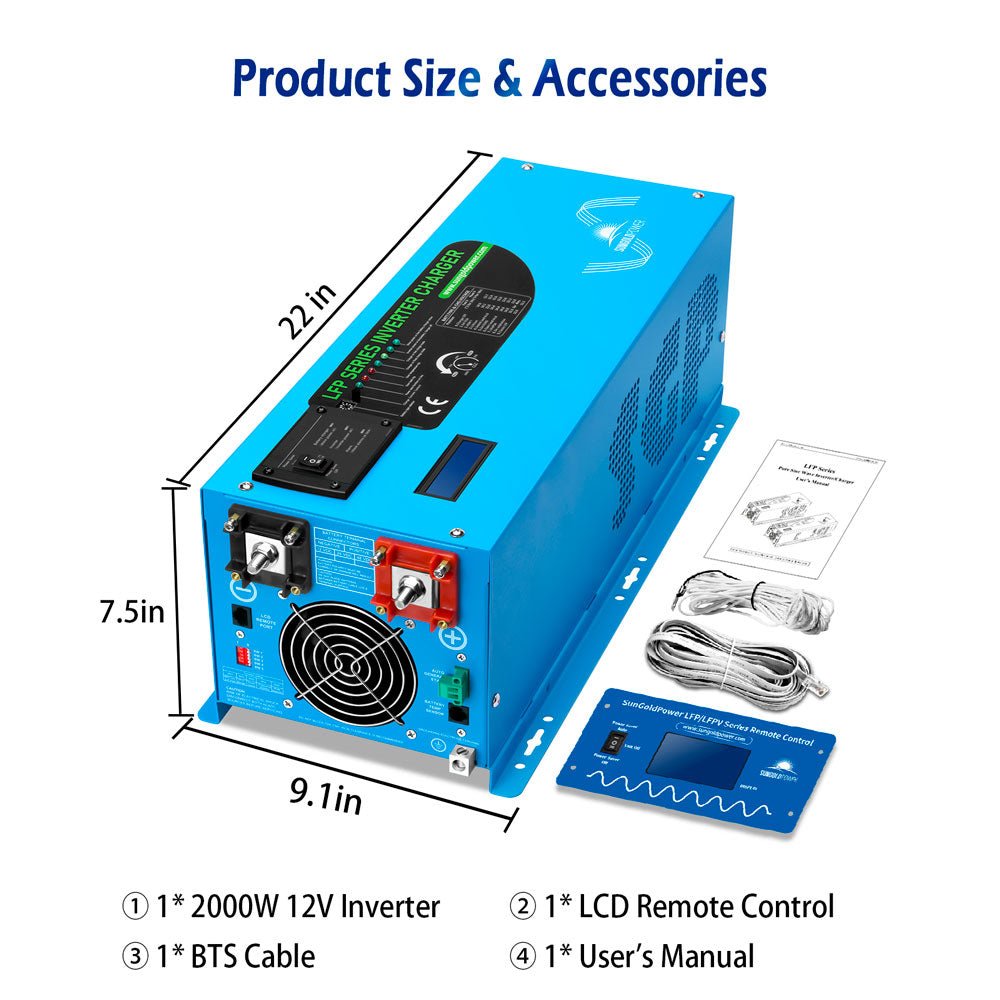

Packaging

• 2000W 12V Low-Frequency Pure Sine Inverter
• User Manual in English
• Remote Control Unit
• BTS Cable
• Product Weight: 53LB
• Product Dimensions: 17.4 × 9.5 × 7.8 inches
• Shipping Weight: 57LB
• Shipping Dimensions: 23 × 12.6 × 12.0 inches

FAQ

• What is the standby/idle current draw on 12V?
  Normal mode draws 2A, while power saver mode uses 12W.
• What gauge wire should be used for the chassis ground?
  AWG 1/0 wire is recommended for optimal safety.
• In battery priority mode, does it switch to AC/charger when battery is depleted?
  Yes, it automatically switches to AC/charger and returns to battery/inverter mode once charging resumes.
