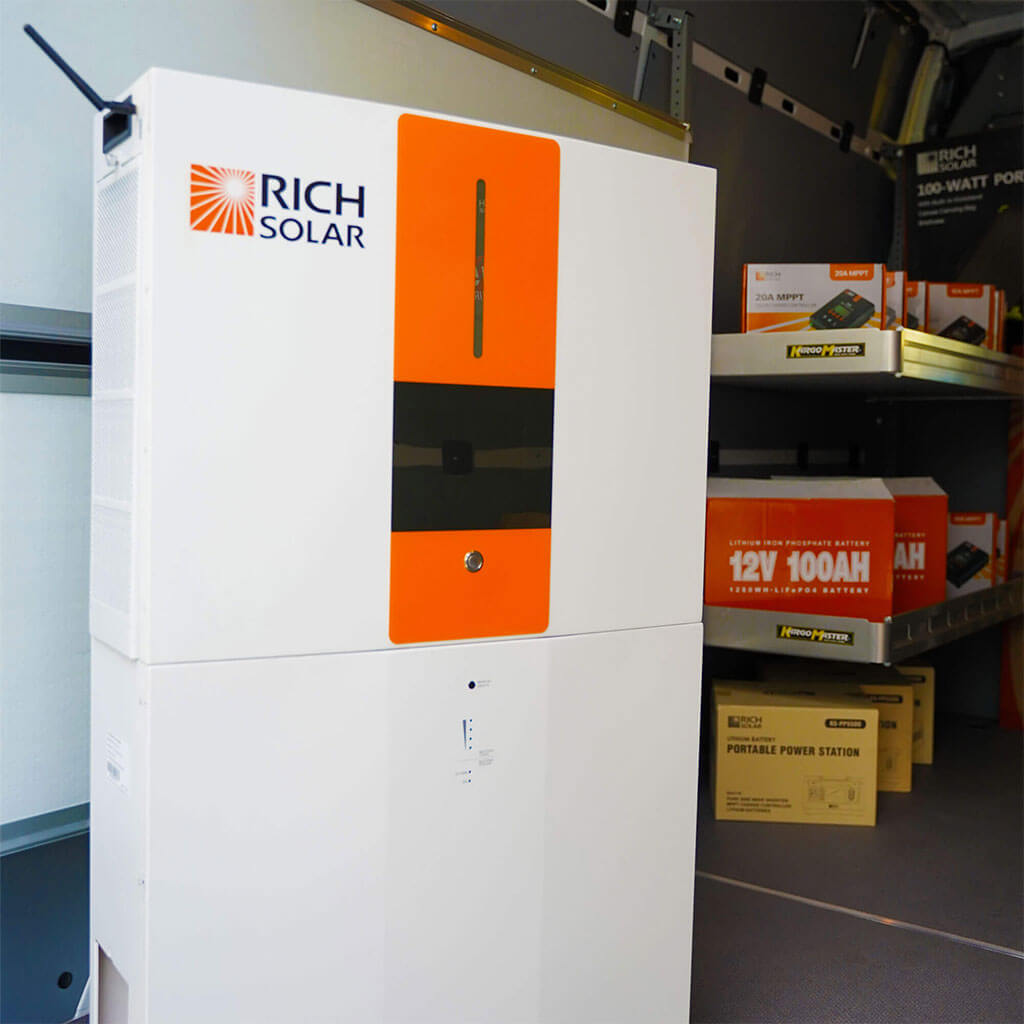

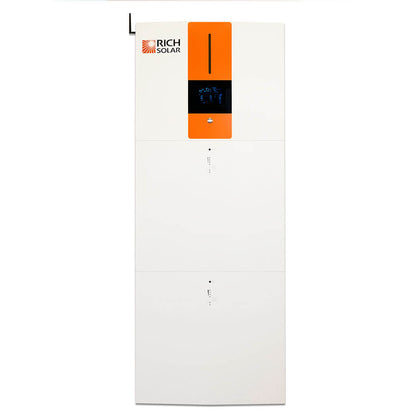

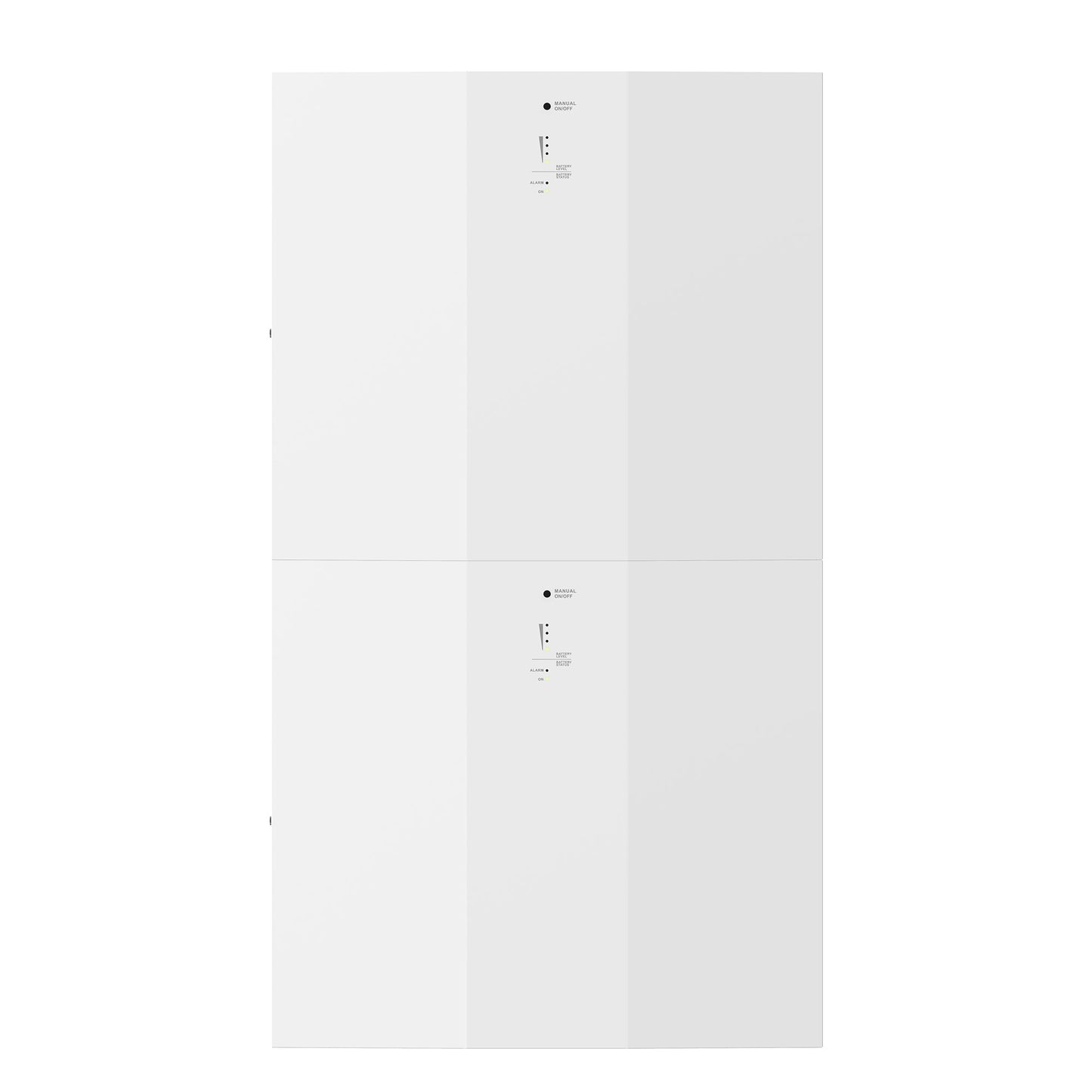

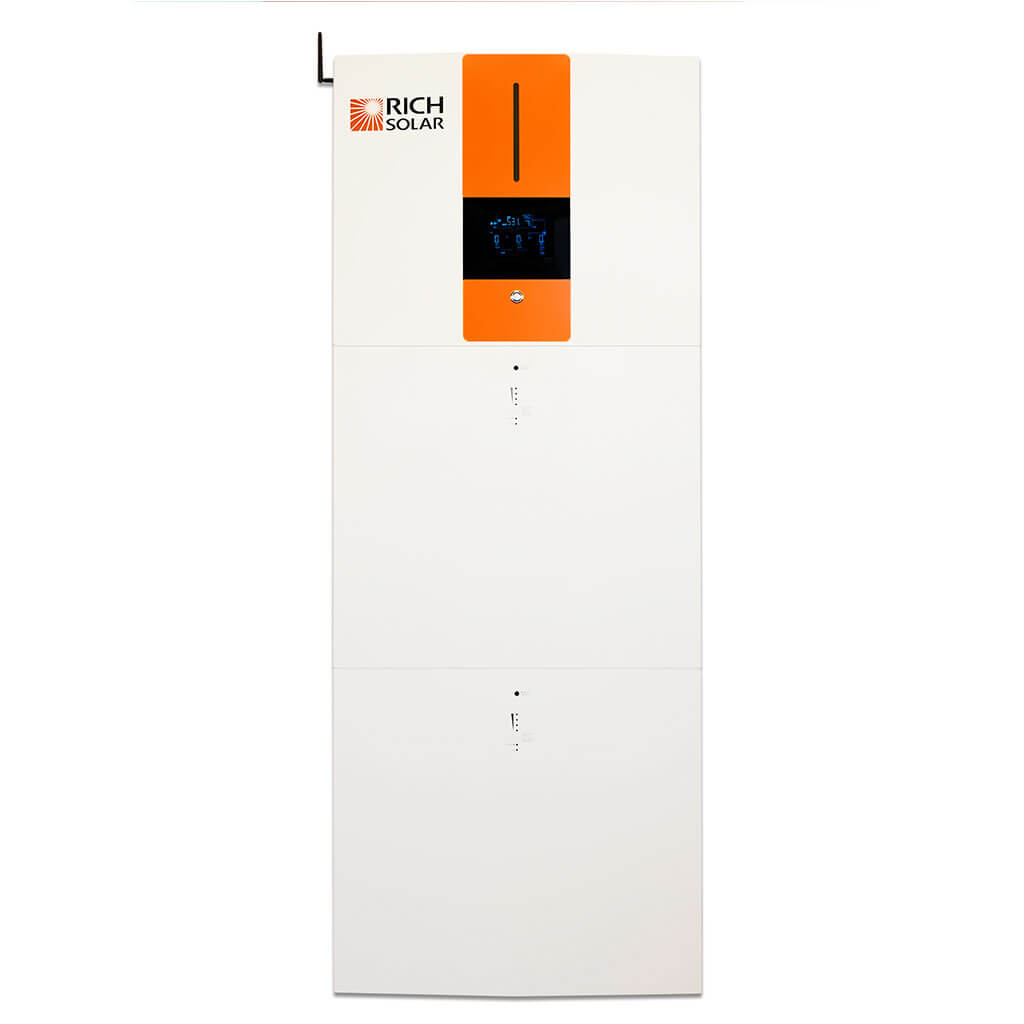

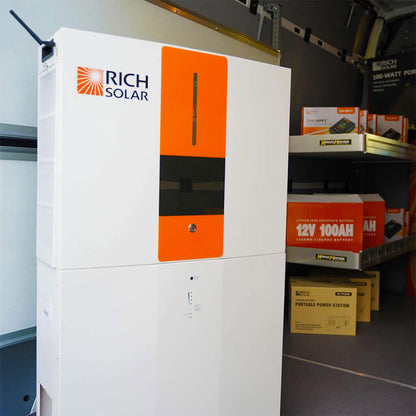

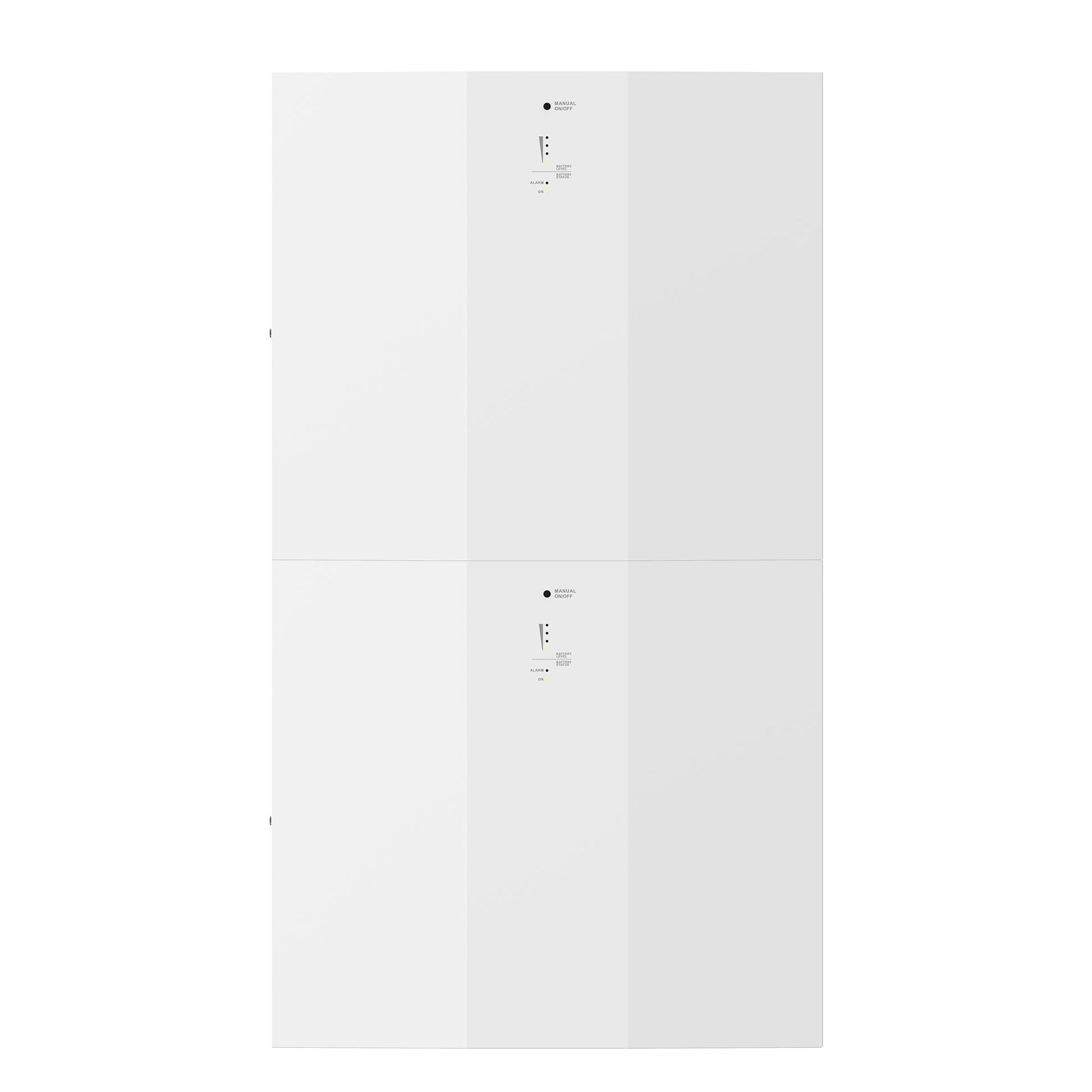

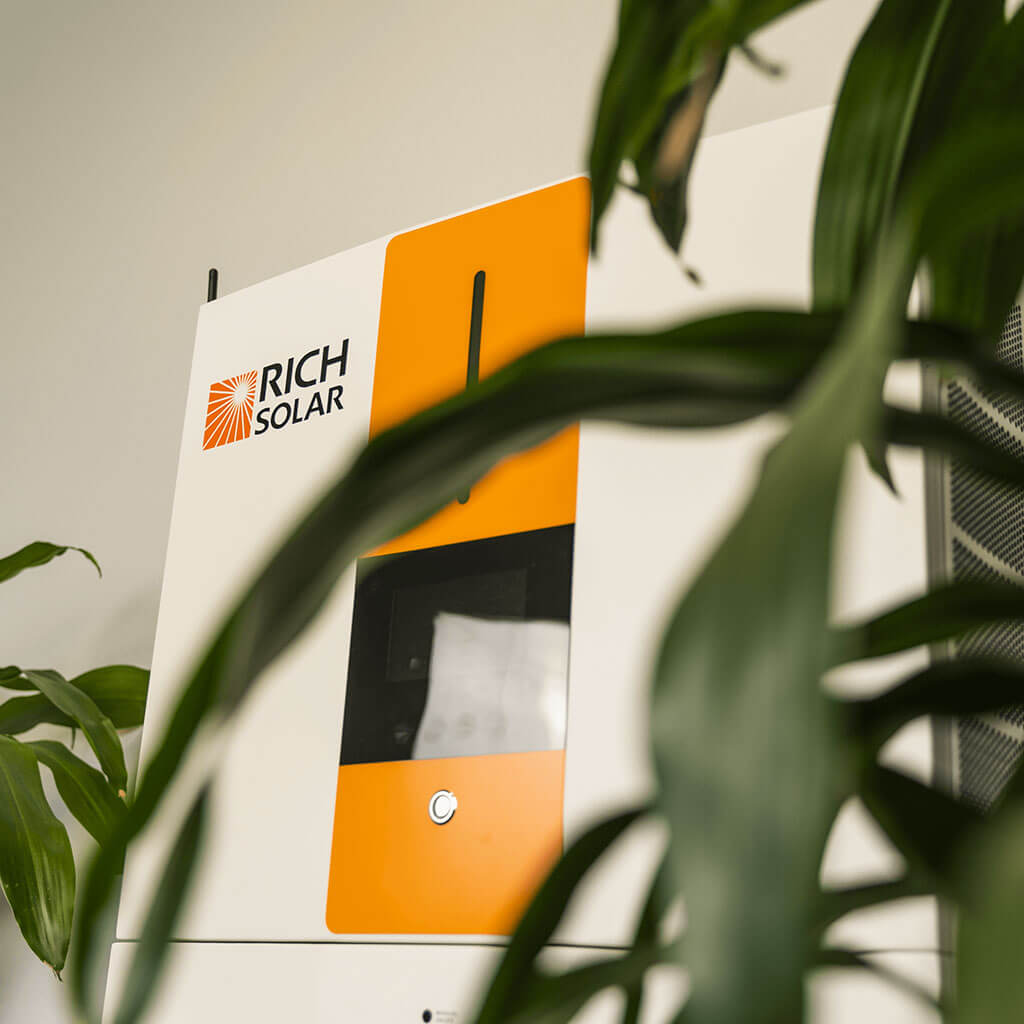

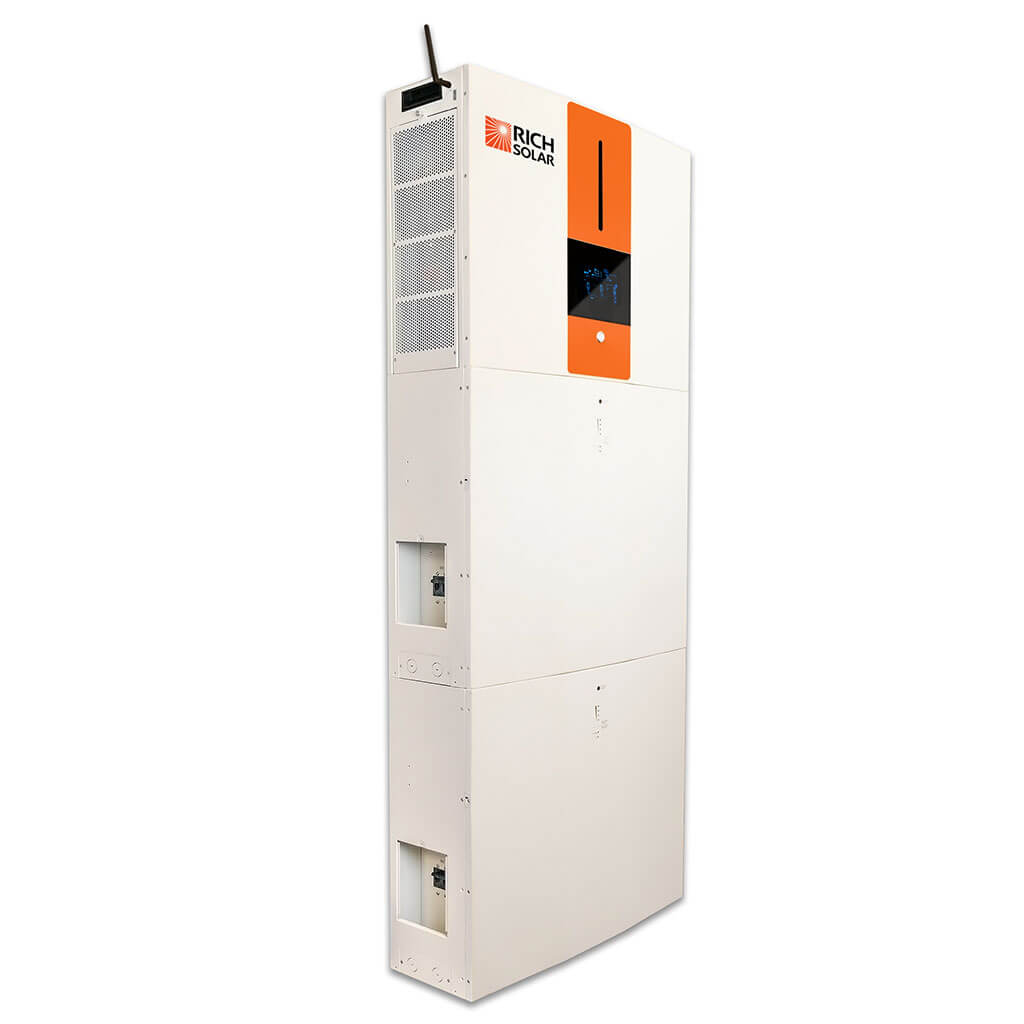

RICH SOLAR All-in-One Energy Storage System

Overview

Discover a compact and integrated solar energy solution that packs an inverter, battery, charge controller, and smart connectivity into one unit. Perfect for providing clean and reliable power off-grid or as a backup, its easy installation and real-time monitoring makes it user-friendly.

Benefits

• Experience uninterrupted power supply with reliable battery backup during grid failures
• Enjoy a space-saving design and simplified setup with a single, self-contained unit
• Reduce utility costs by utilizing solar and battery power before relying on the grid
• Manage the system remotely, saving time and cutting down on unnecessary site visits
• Expand storage capacity easily with compatible Li-Ion modules as your needs grow

Features

• Pure sine wave AC output ensures safe operation for sensitive electronics
• Operates off-grid with support for generator and utility connections
• Programmable supply priority for PV, Battery, or Grid
• User-friendly adjustable battery charging current and battery-independent design
• Dual MPPT trackers facilitate up to 120 A solar and AC charging
• Diverse communication options including USB, RS232, SNMP, Modbus, GPRS, and Wi-Fi

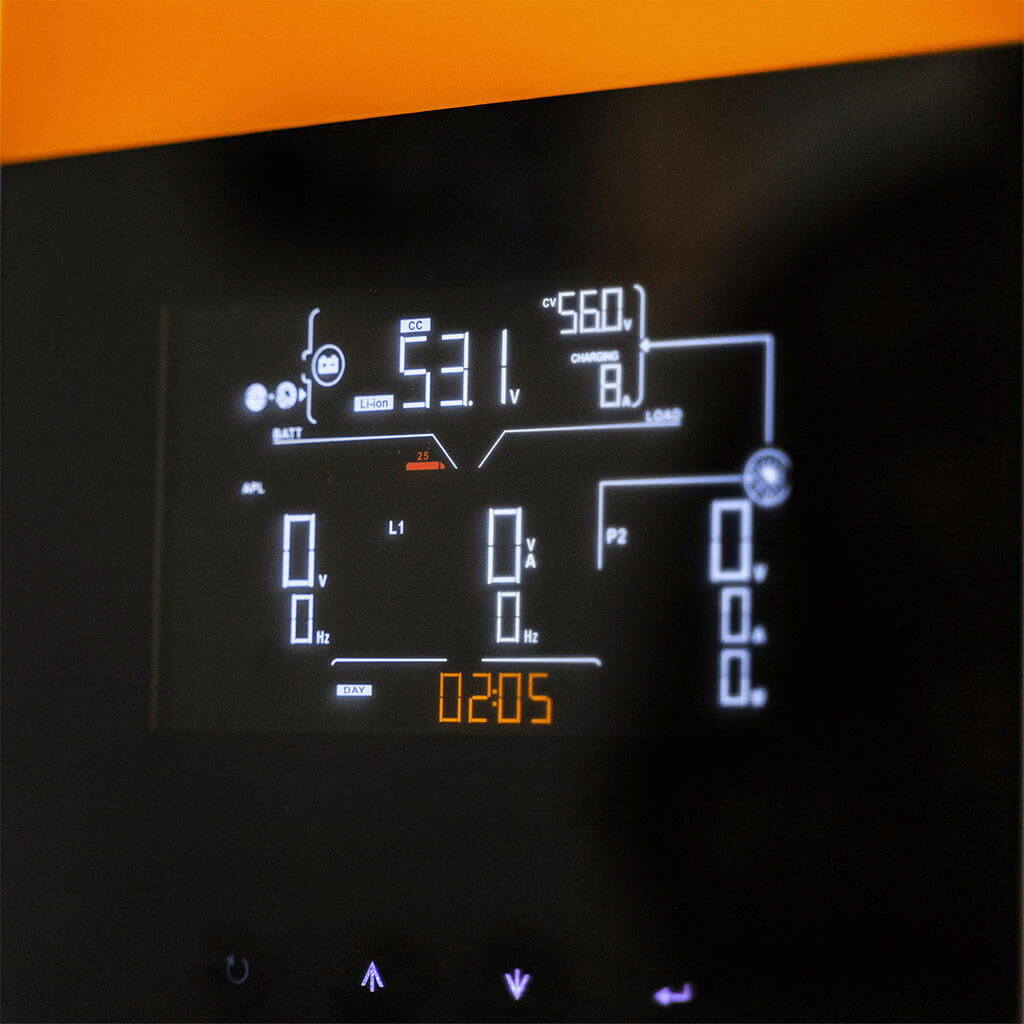

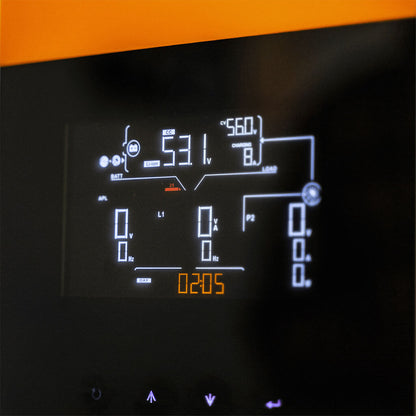

• Mobile app for iOS and Android for real-time monitoring and control
• Easily scalable with compatible Li-Ion battery expansions for increased capacity

Specifications

• Model: RS-A10
• Maximum PV Input Power: 8000 W
• Rated Output Power: 6500 W
• Maximum Charging Power: 6500 W
• MPPT Operating Range (DC): 90 to 230 VDC
• Maximum PV Array Open Circuit Voltage: 250 VDC
• Maximum Solar Charge Current: 120 A
• Number of MPPT Trackers: 2
• Maximum Input Current per MPP: 2 times 18 A
• AC Input Acceptable Voltage Range: 90 to 140 VAC (computers); 80 to 140 VAC (home appliances)
• Maximum AC Input Current: 60 A
• Battery Mode Nominal Output Voltage: 120 VAC
• Maximum Conversion Efficiency (DC to AC): 93%
• Battery Nominal DC Voltage: 48 VDC
• Battery Maximum Charging Current: 120 A

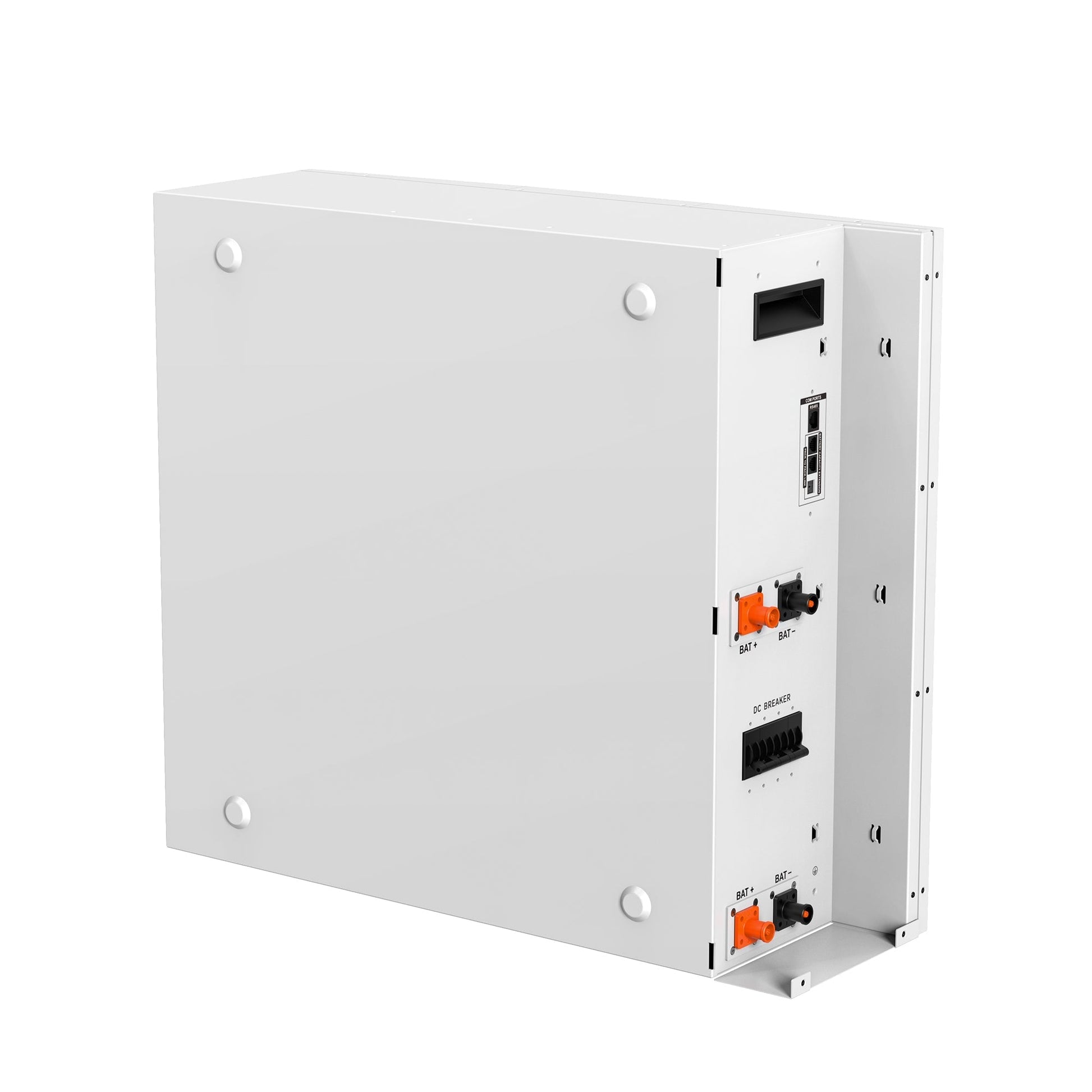

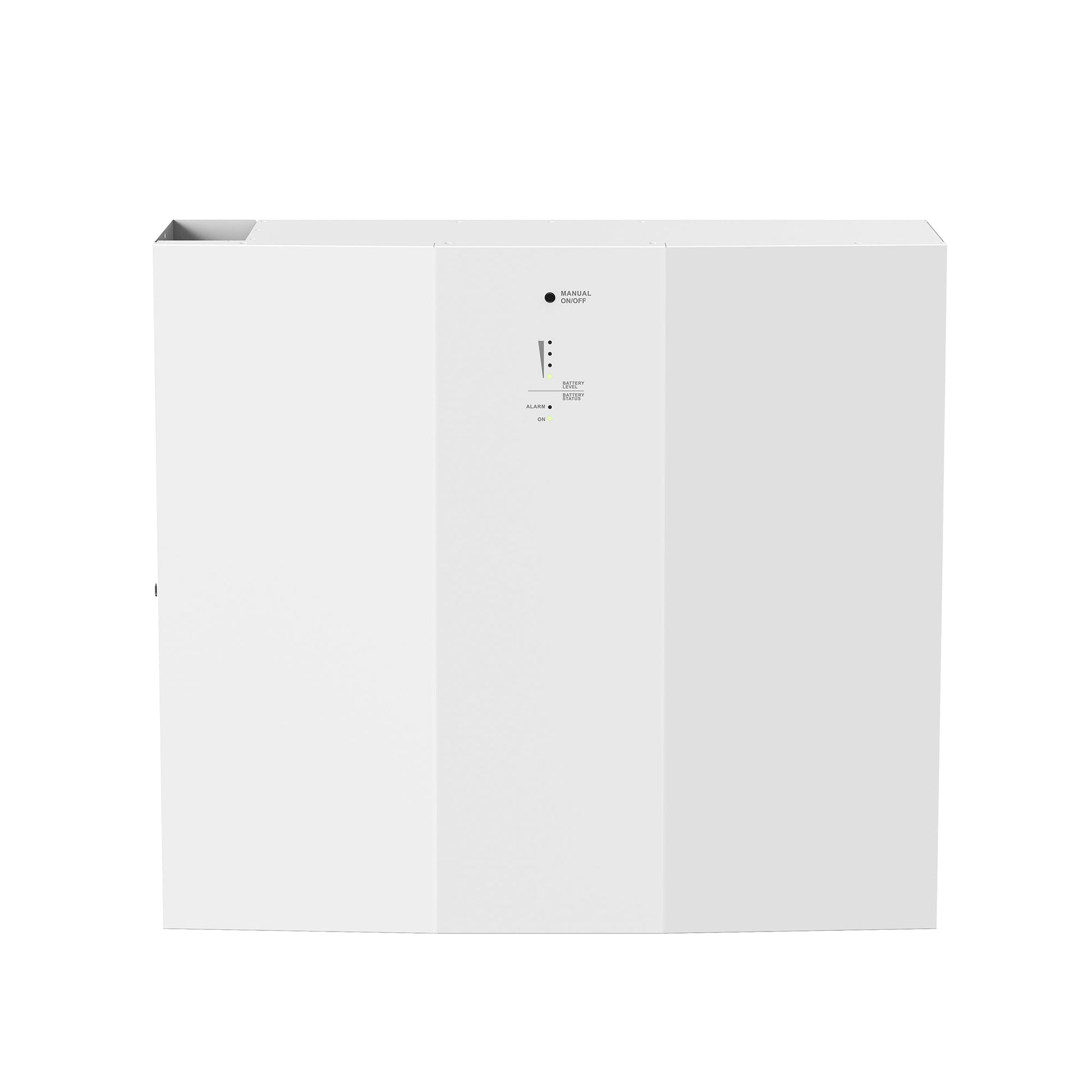

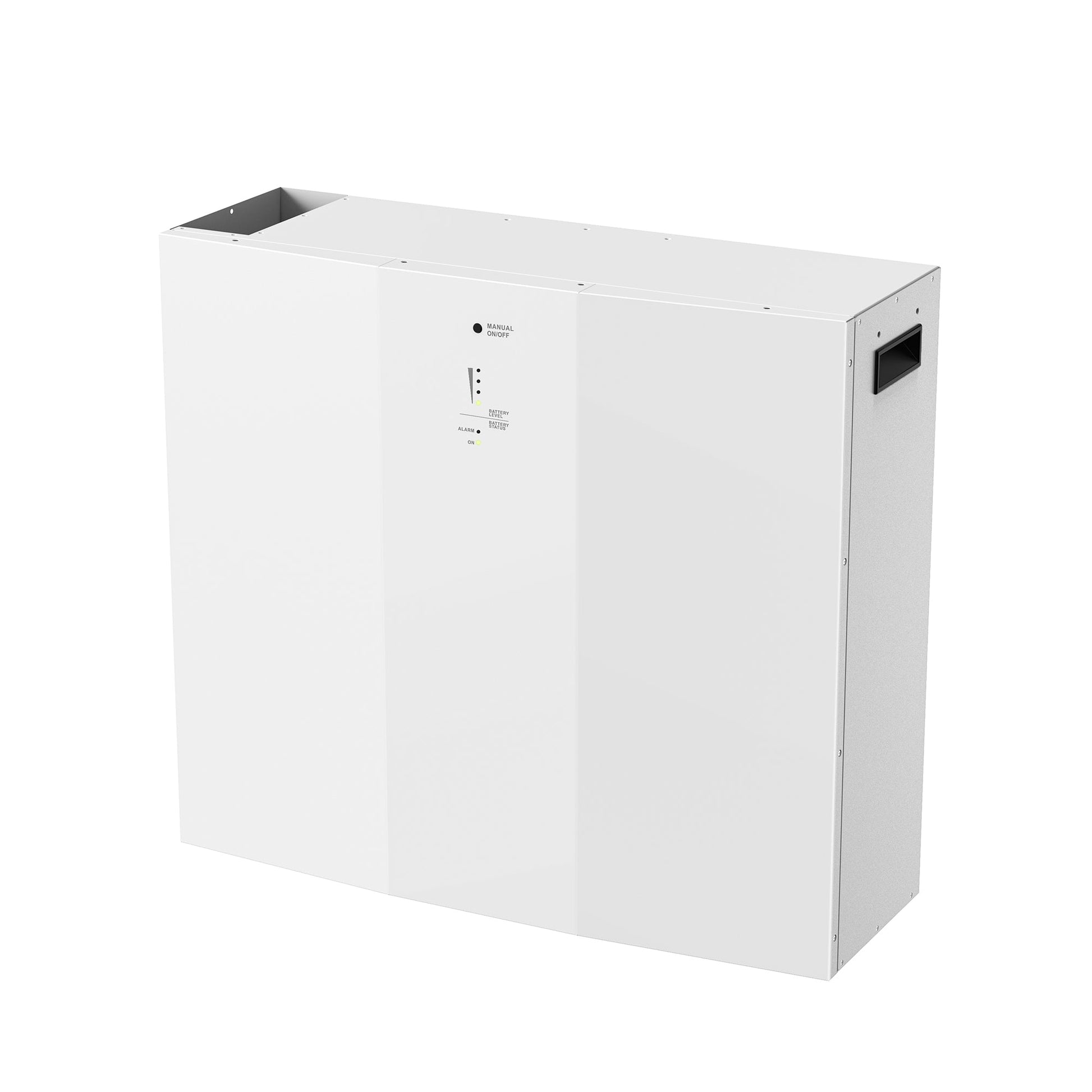

• Battery Dimensions (D times W times H): 8.4" times 24.4" times 19.7"
• Battery Net Weight: 99 lb
• Battery Capacity: 5120 Wh
• Battery Nominal Voltage: 51.2 VDC
• Battery Full Charge Voltage: 56 V
• Battery Full Discharge Voltage: 42 V
• Typical Battery Capacity: 100 Ah
• Max Continuous Discharging Current: 120 A
• Max Discharging Current: 192 A (1 minute)

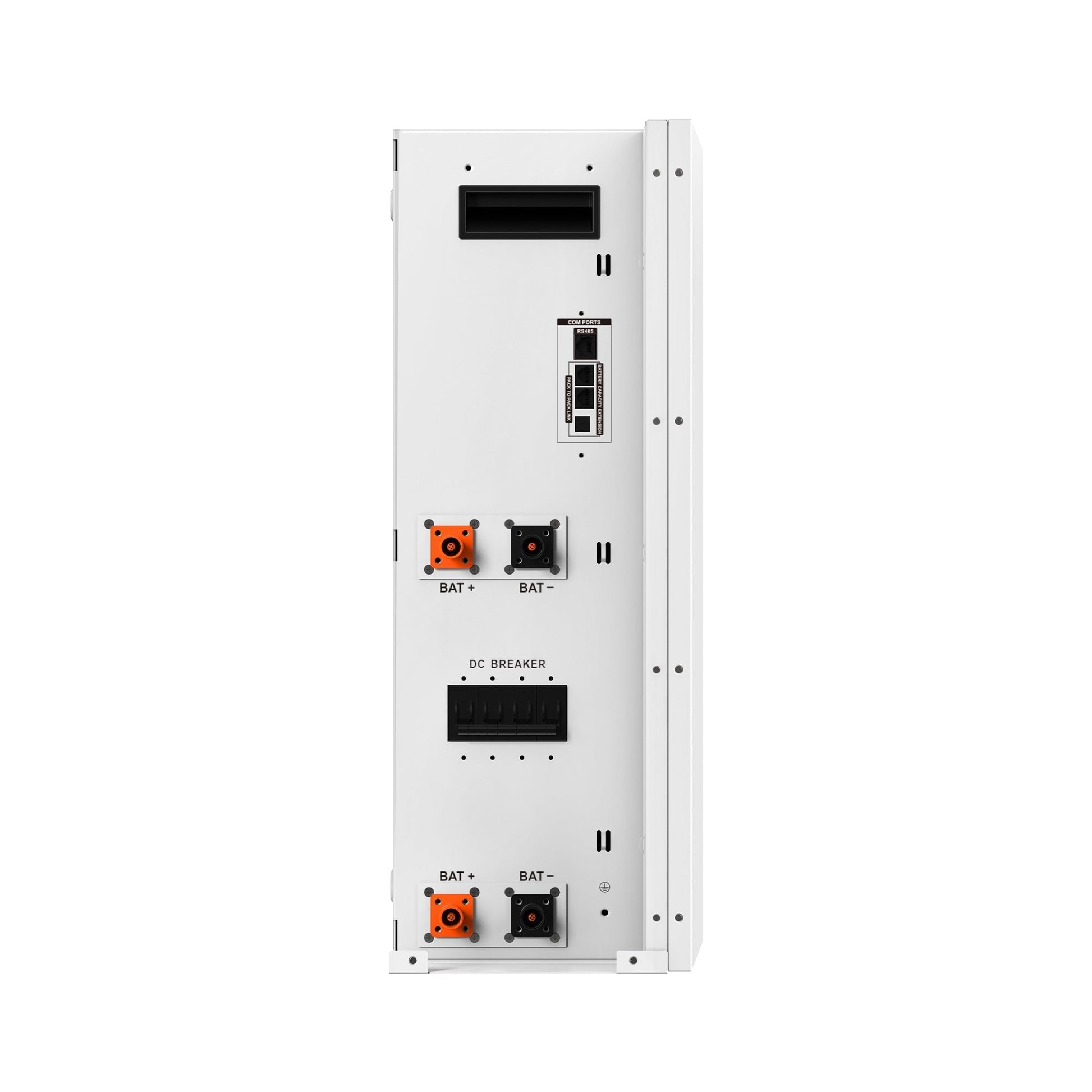

• Battery Protection: Battery Management System and breaker
• Float Charge Voltage: 52.5 V
• Battery Charge Current (Standard): 20 A (0.2 C)
• Battery Maximum Charge Current: 50 A (0.5 C)
• Standard Charge Method: 0.2 C CC to FC, then CV until current is less than 0.05 C
• Inner Resistance: less than or equal to 20 m?
• All-in-One System Dimensions (D times W times H): 19.7" times 26" times 49.2"
• All-in-One System Net Weight: 287 lb
• Compliance and Safety Standards: IEC 62619; EN 61000-6-3; EN 61000-6-1; UKCA; UN38.3; UL 1741; CSA C22.2 No.107.1-16; FCC Part 15B
