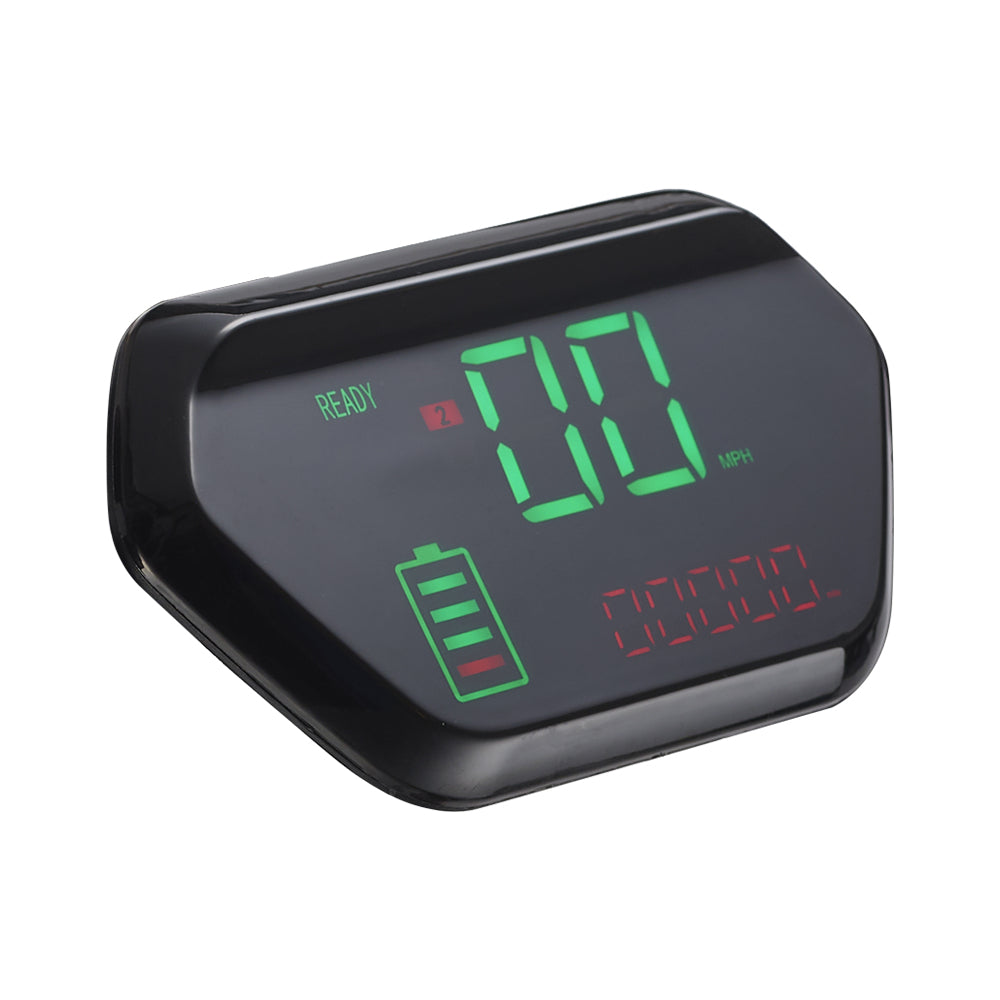

HappyRun Tank G50/G60 LCD Display

Overview

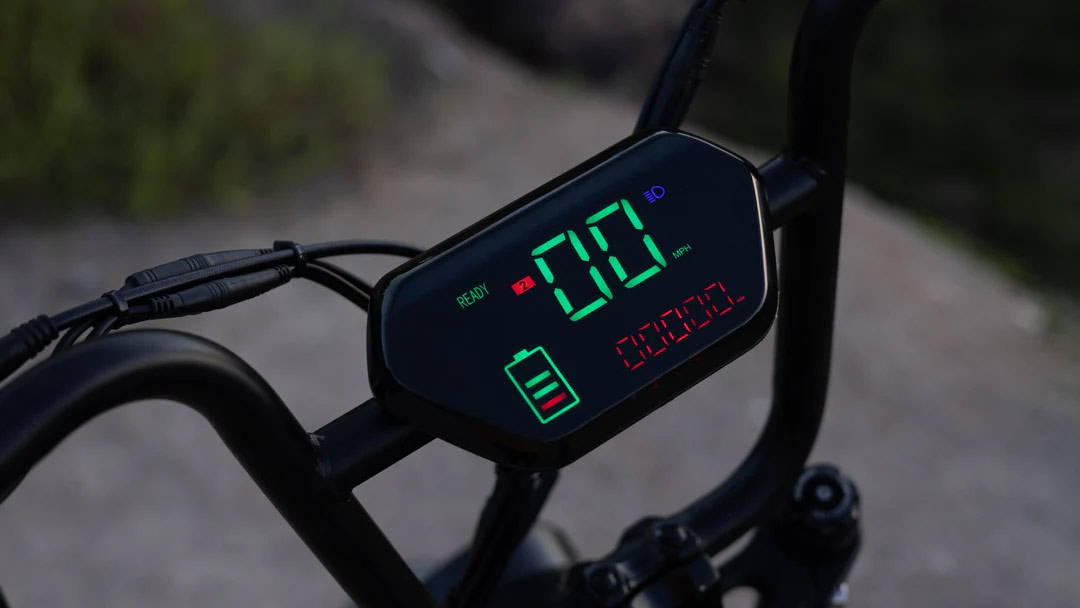

This sleek and compact LCD screen is designed specifically for the HappyRun Tank G50 and G60 electric bikes. It features a bright, easy-to-read display that shows vital information such as speed, battery life, trip distance, and error codes, allowing you to stay informed and make quick decisions while riding.

Benefits

• Enjoy a safer ride by easily seeing critical data without taking your eyes off the road.
• Plan your journeys more effectively by keeping track of your battery status and range.
• Diagnose issues quickly with on-screen error codes, saving you time and effort.
• Easily swap out the display with a plug-and-play installation, minimizing downtime.
• Ride confidently at night or in low-light conditions with the adjustable backlit screen.

Features

• Displays current, average, and maximum speed metrics.
• Shows battery level along with estimated remaining range for peace of mind.
• Includes trip meter and odometer for tracking individual and total distances.
• Indicates assistance levels and allows mode navigation through three control buttons.
• Provides on-screen error codes for quick troubleshooting.
• Backlit monochrome LCD with adjustable brightness for visibility in various lighting conditions.
• Compatible with Tank G50 and G60 wiring via a plug-and-play connector.
• Compact handlebar mount designed to fit seamlessly in place of the original display.

Specifications

• Compatibility: HappyRun Tank G50 and Tank G60 electric bikes
• Display type: Backlit monochrome LCD
• Screen size: 2.8 inches diagonally
• Dimensions: Approximately 95 x 48 x 22 mm
• Weight: Around 95 g
• Input voltage: Rated 48 V, compatible with 36–60 V e-bike systems
• Power consumption: Less than 1 W during regular use
• Connector: 6-pin connector suitable for Tank series
• Buttons: Three physical control buttons for easy navigation and settings
• Operating temperature: From -20 °C to 60 °C
• Ingress protection: IP65 rated for splash resistance
• Housing material: Crafted from ABS plastic with a polycarbonate screen cover
• Cable length: Approximately 20 cm from connector to display
