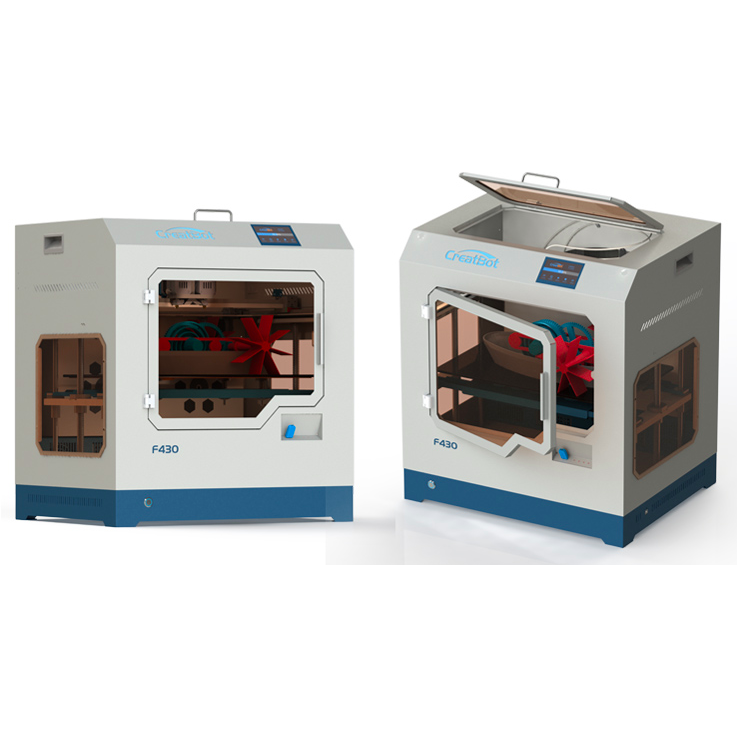

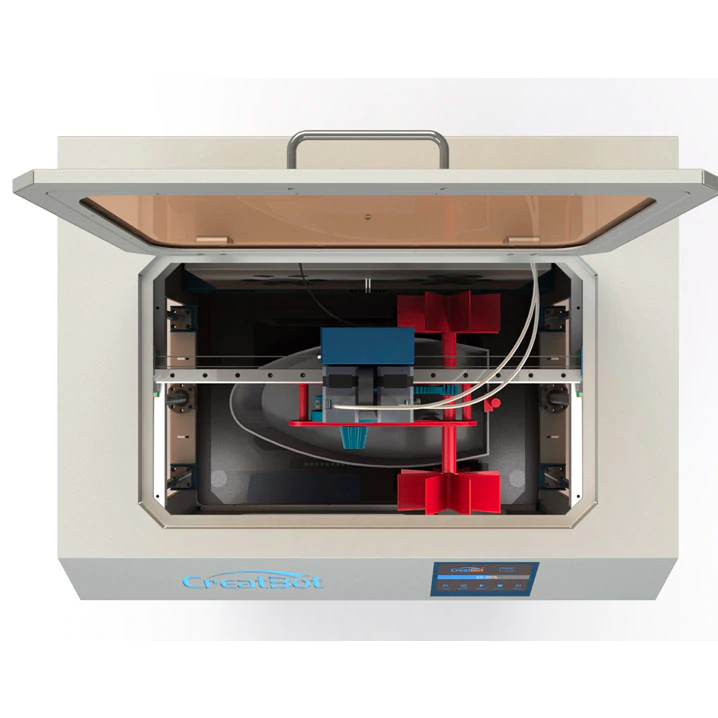

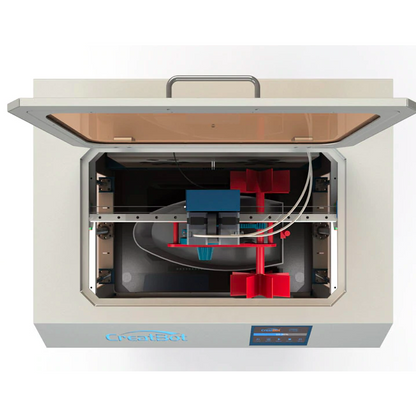

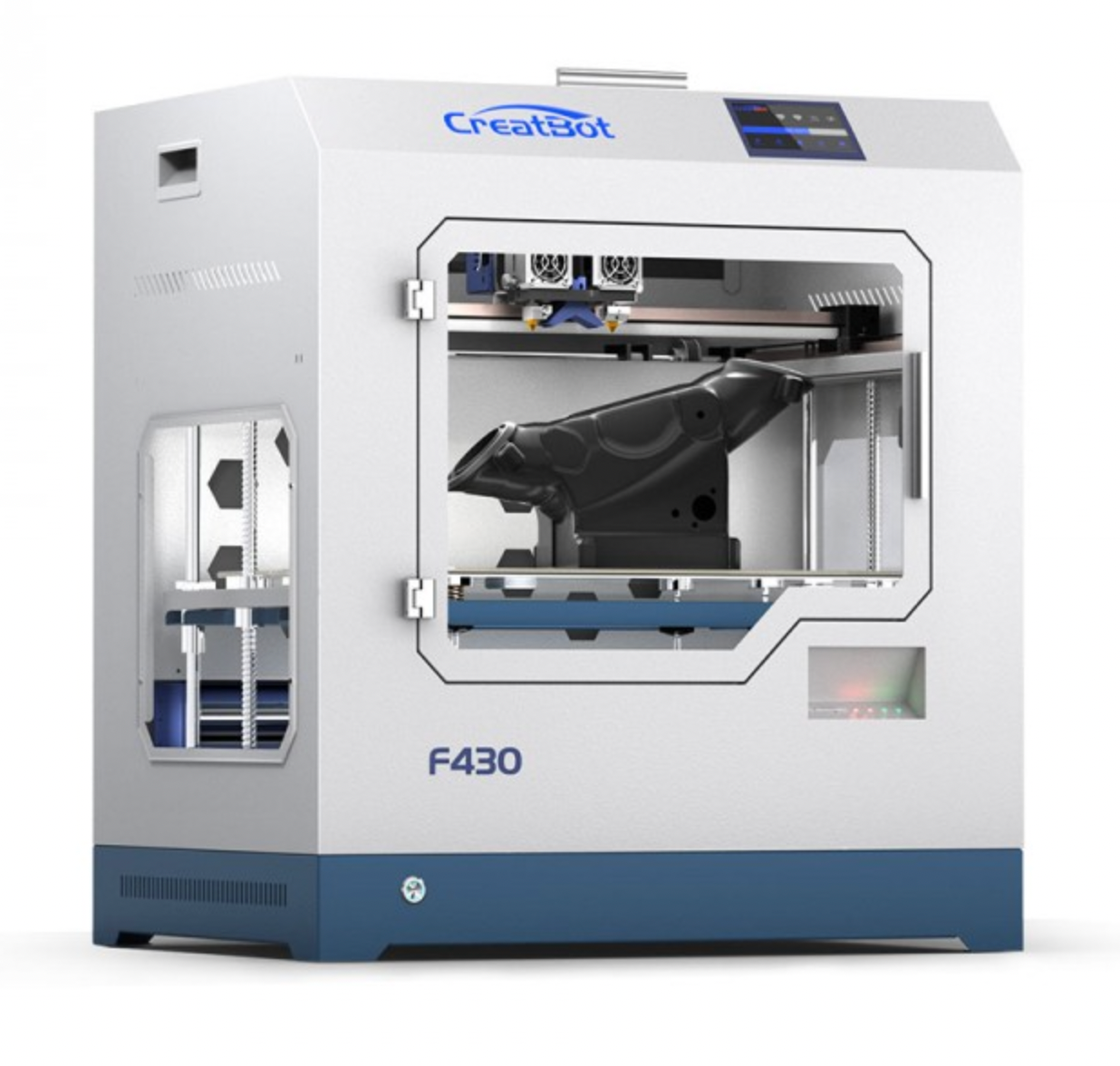

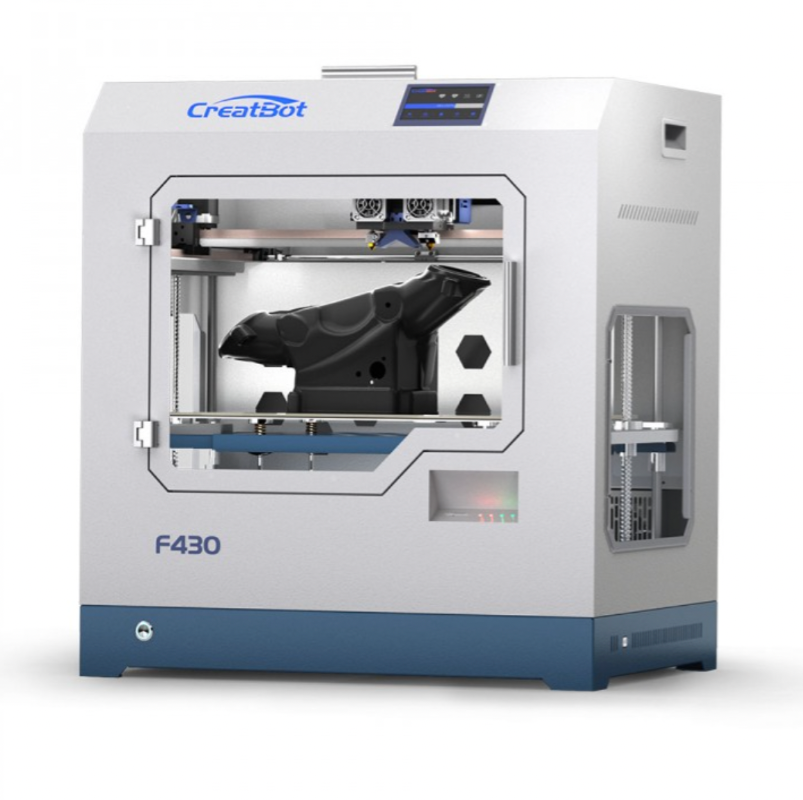

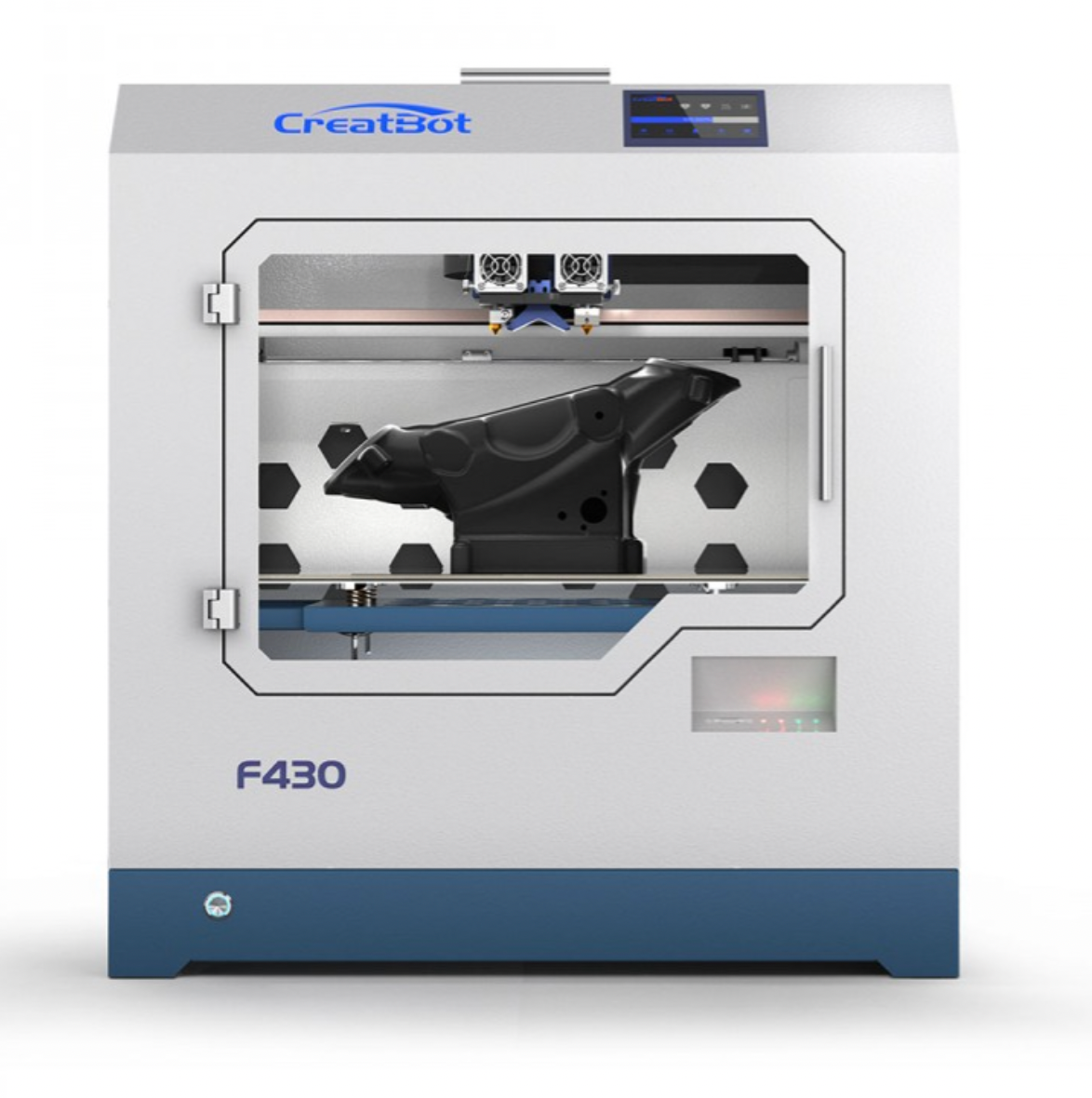

CREATBOT F430 PEEK 3D PRINTER

The CreatBot F430 is an affordable and robust high-temperature 3D printer designed for additive manufacturing with PEEK filament and other advanced engineering materials. Leveraging state-of-the-art 3D printing technology, it excels in various applications ranging from concept design and professional prototyping to large-scale and high-performance polymer printing with materials like PEEK, ULTEM, and ASA. As one of the best options available, the F430 offers an exceptional price-to-performance ratio, ensuring users achieve optimal results.

Benefits

• Create prototypes with advanced engineering materials, enabling innovation across various industries.
• Enjoy reliable and consistent printing with minimal downtime due to built-in fail-safes.
• Experience enhanced print quality with features designed to minimize warping and improve adhesion.

Features

• Automatic bed leveling with BLTouch smart sensor for precise calibration.

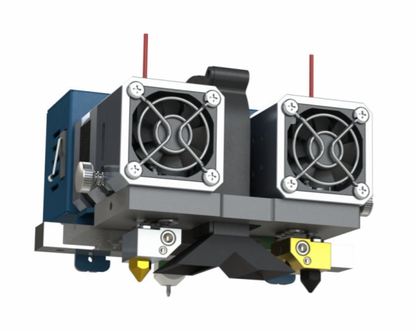

• Dual extrusion capabilities, allowing printing with two materials simultaneously, including support structures.

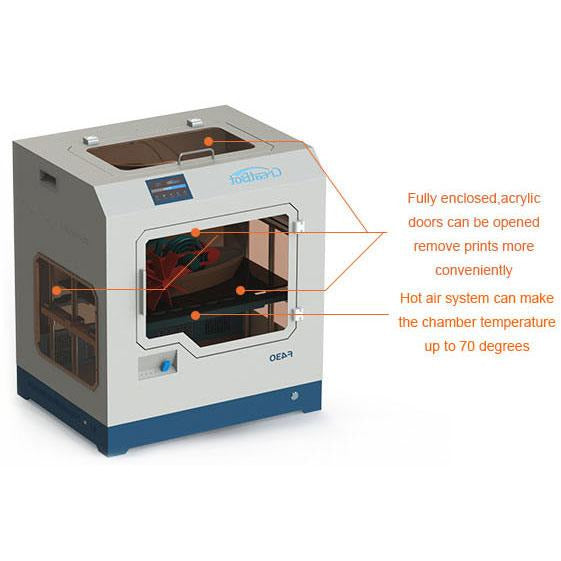

• Closed and heated build chamber that reaches up to 70°C for superior print quality.

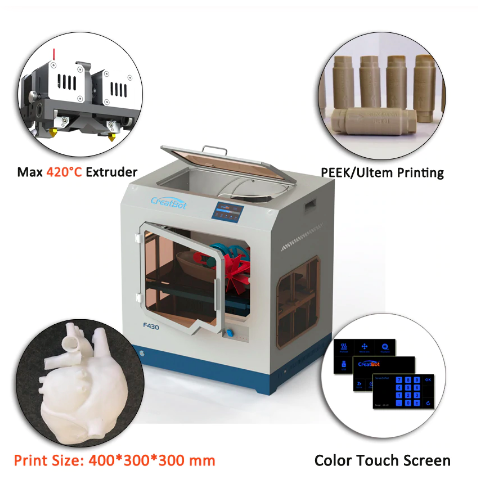

• High-temperature nozzle capable of reaching up to 420°C for versatile material compatibility.
• Carbon-fiber coated glass-ceramic build plate that can heat up to 140°C for enhanced adhesion.
• Filament detector that stops printing when filament runs out to preserve projects.
• Automatic shutdown feature post-printing for energy efficiency.
• Intuitive operation through a user-friendly 4.3" touchscreen interface.
• Built-in air filter for a safe and healthy printing environment.

Specifications

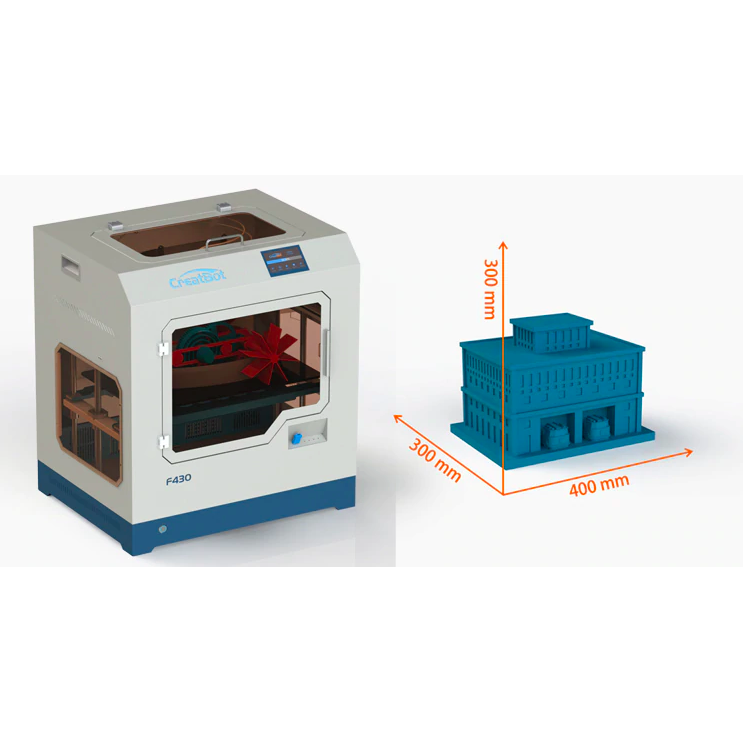

• Build volume: 40 x 30 x 30 cm (400 x 300 x 300 mm or 16" x 12" x 12")
• Min. layer thickness: 0.04 mm
• Max. printing speed: 120 mm/s
• Max. nozzle temperature: Left 260°C, Right 420°C
• Max. bed temperature: 140°C
• Max. build chamber temperature: 70°C
• XY positioning precision: 12.7 ?m
• Z positioning precision: 1.25 ?m
• Dimensions: 620 x 485 x 680 mm
• Weight: 48 kg
• Nozzle sizes: 0.4 mm (also compatible with 0.3, 0.5, 0.6, 0.8, and 1.0 mm nozzle options)
• Compatible materials: PLA, ABS, Carbon Fiber, Wood, Nylon, PC, PETG, HIPS, PP, Flexible, TPU, PVA, PEEK, ULTEM, and others
• Filament diameter: 1.75 mm
• 3rd party material compatibility: Yes
• Interface: 4.3" Touch screen
• Connectivity: USB
• Power input: 100V-110V or 200V-240V / 50-60Hz
• Software Bundle: CreatWare, Simplify 3D, Cura, Slice 3R, etc.
• Operating Systems: Win7/8/10, MacOS
• Key Features: Automatic bed leveling, dual extrusion system, closed heated chamber, filament runout sensor, power outage resume, air filter, and automatic shutdown.
