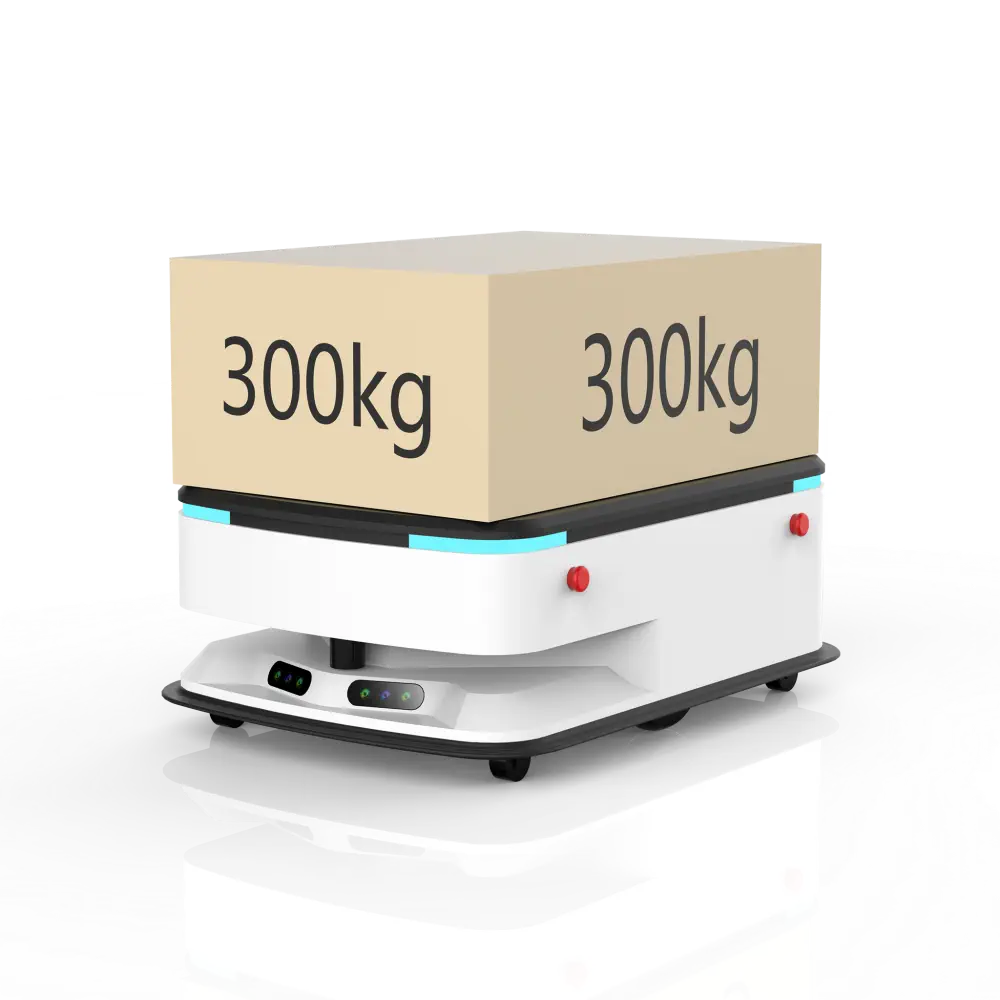

ATEAGO ROBOTIKS S6 — 300 kg Autonomous Robot Carrier

Overview

The ATEAGO S6 is a cutting-edge autonomous mobile robot chassis designed to enhance heavy-duty indoor logistics. Capable of carrying loads up to 300 kg, it employs ATEAGO SLAM 2.0 for precise navigation without the need for floor markers, and it offers compatibility with cloud services and an open SDK for easy integration. The robot also features automatic recharging capabilities, ensuring seamless operation.

Benefits

• Minimize manual lifting and handling to reduce worker fatigue and the risk of injury.
• Transport a larger number of items in each trip, enhancing operational efficiency in warehouses and factories.
• Facilitate easy system integration and customization, thanks to the open SDK and comprehensive APIs.
• Decrease downtime with automatic recharging and cloud-based remote monitoring.
• Ensure reliable operation throughout work shifts with extended battery life and quick recharge options.

Features

• Maximum payload capacity of 300 kg for carrying heavy loads.
• Utilizes ATEAGO SLAM 2.0 for autonomous navigation and positioning, eliminating the need for floor codes.
• Compatible with ROS and AI for sophisticated robot control and sensing.
• Open SDK and API support available for customization and secondary development.
• Integrated cloud service platform for effective fleet management and remote monitoring.
• Includes automatic docking and recharging with a provided charging station.
• Onboard 7-inch touchscreen (1024 x 600) for local control and real-time status updates.
• Adjustable travel speed ranging from 0.1 to 1.0 m/s.

Specifications

• Dimensions: 804 mm (L) x 590 mm (W) x 317 mm (H)
• Weight: 65 kg
• Payload capacity: 300 kg
• Operating system: Android 5.1 or later
• Display: 7 inches, resolution of 1024 x 600
• Travel speed: 0.1 to 1.0 m/s
• Navigation accuracy: ±10 cm
• Battery type: Lithium iron phosphate (LiFePO4), 38.4 V / 25 Ah
• Battery duration: Approximately 8 hours under full load; up to 25 hours with no load
• Charging duration: Approximately 6 hours (under automatic recharge mode)
• Charging method: Automatic recharging and direct charging
• Drive mechanism: 5.5-inch wheel motor
• Power adapter: Input AC 110 to 240 V, 50 to 60 Hz; Output 43.2 V at 5 A
• Charging station: Features overcurrent protection and smart power-failure handling; output rated for 43.2 V DC, 5 A
• Package includes:
  • 1 x Robot
  • 1 x User manual
  • 1 x Wire adapter
  • 1 x Auto-charging station
  • 1 x One-year warranty
  • 24/7 online technical support
• Documentation: Product PDF available for technical manual and chassis datasheet
