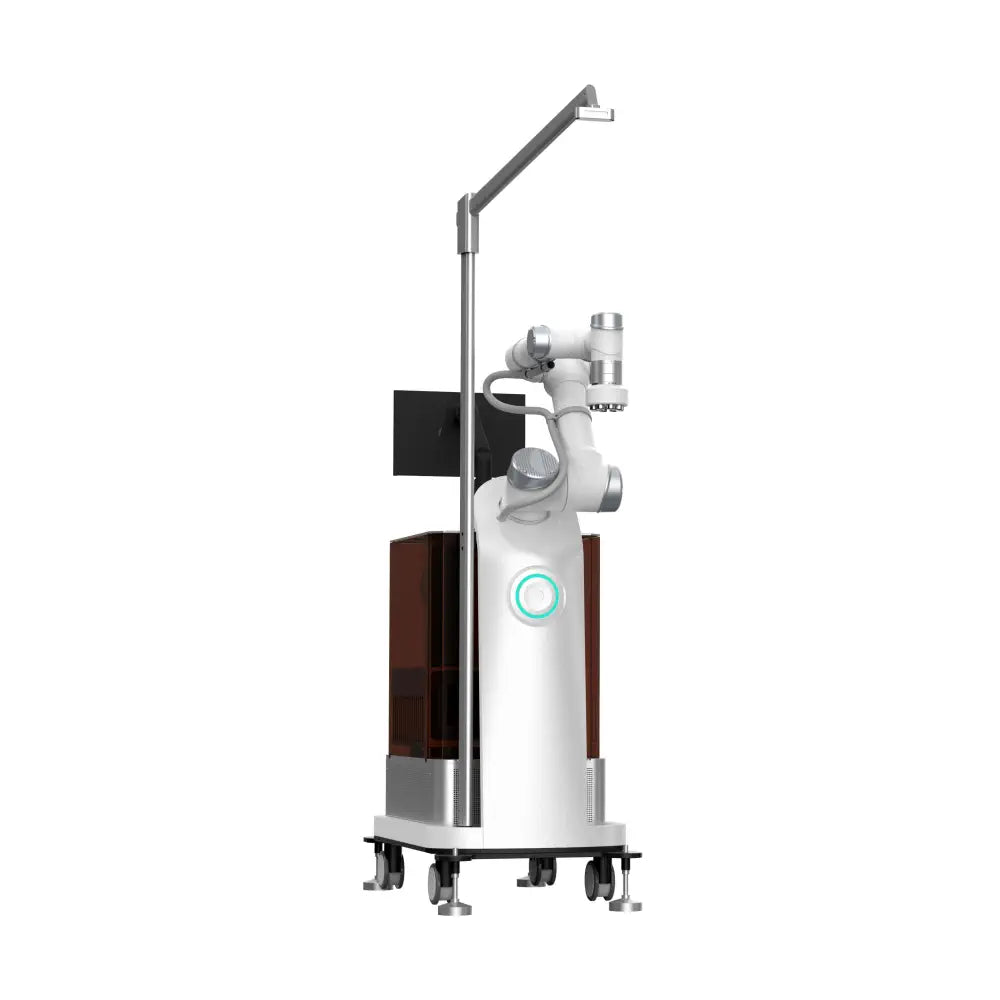

ATEAGO M2 RF Therapy Massage Cobot

Special Order

This item requires special ordering and will be processed within 2-6 weeks.

Overview

The ATEAGO M2 is a state-of-the-art six-joint collaborative robotic arm that specializes in RF-assisted massage, skin tightening, and physiotherapy. Featuring advanced technologies like an independent end-force sensor, a constant-force control algorithm, and an AI vision system, it ensures consistent and customizable treatments while prioritizing safety.

Benefits

• Automates repetitive tasks, allowing clinicians to focus on patient care.
• Delivers consistent pressure and motion for uniform treatments throughout sessions.
• Minimizes practitioner fatigue by managing continuous or precise force application.
• Enhances patient safety with integrated vision monitoring and emergency stop functionality.
• Provides adaptable treatment protocols for specific body areas and goals.

Features

• Six-joint electric-drive collaborative robotic arm equipped for flexible constant-force control.
• Independent end-force sensor offering real-time feedback with automatic adjustments.
• Advanced AI vision system ensuring object and body recognition with multi-view protection.
• RF treatment capability supporting various tip types: single-polar RF, multi-polar RF, sole, and gun.
• Interchangeable treatment heads available in multiple types, enhancing subcutaneous treatment and skin tightening.
• Accurate navigation and dynamic tracking for automated path following and target maintenance.
• Customizable parameters including massage head selection, treatment area, path, duration, strength, and speed.
• Includes safety features such as RF protection mechanisms and an emergency stop switch.
• Program memory allows for lengthy single-track sequences of up to 25,000 nodes.

Specifications

• Robotic arm: 6-joint electric drive
• Working radius: 0.92 m
• Standard load capacity: 5 kg (towing); downward pressure 7 kg
• Limit load capacity: 7 kg (towing); downward pressure 8 kg
• Force sensing range: up to ±10 kg; resolution less than 0.1 kg
• Single-track capacity: 25,000 nodes with over 3 minutes runtime for long tracks
• Maximum running speed: 0.5 m/s
• Tip types: single-polar RF, multi-polar RF, sole, gun
• Tip sizes: examples include 70 × 70 × 55 mm, 100 × 70 × 60 mm, 100 × 75 × 80 mm, and 138 × 55 × 150 mm
• RF frequency: 470 kHz
• RF power: 200 W
• Mainframe dimensions: 1000 × 500 × 1300 mm
• Net weight: 130 kg
• Included accessories: robot body, long and short support rods, power cord, top camera, four types of hand tools, negative plate bottom box, magnetic switch pull cord, screw kit, M8 hex wrench
• Support: online technical assistance available
