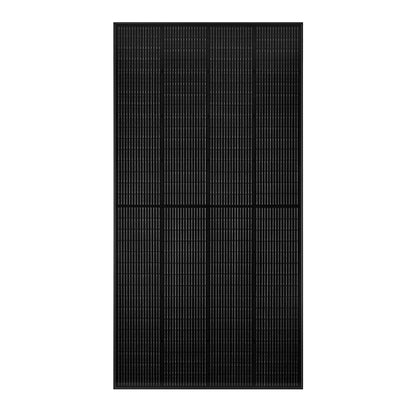

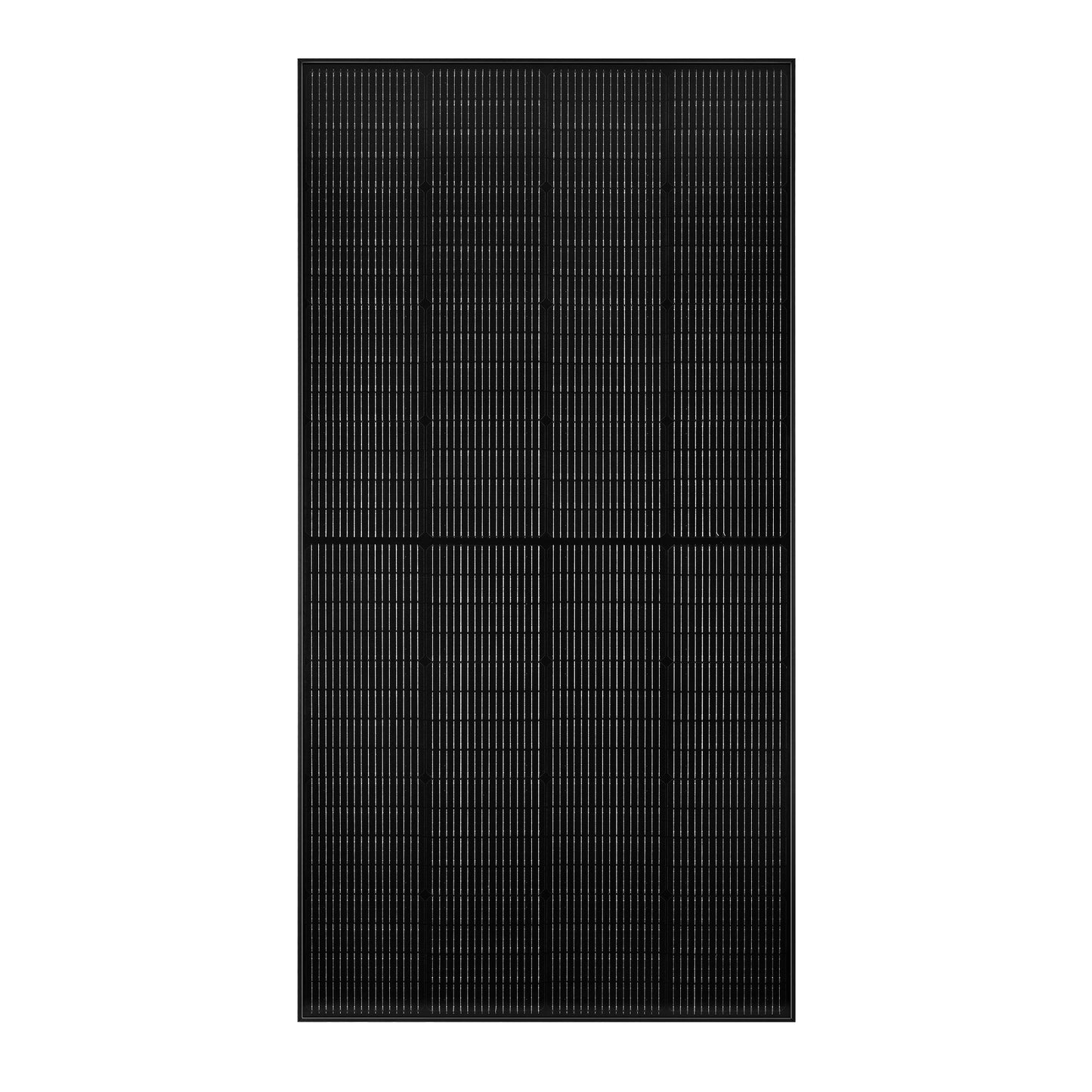

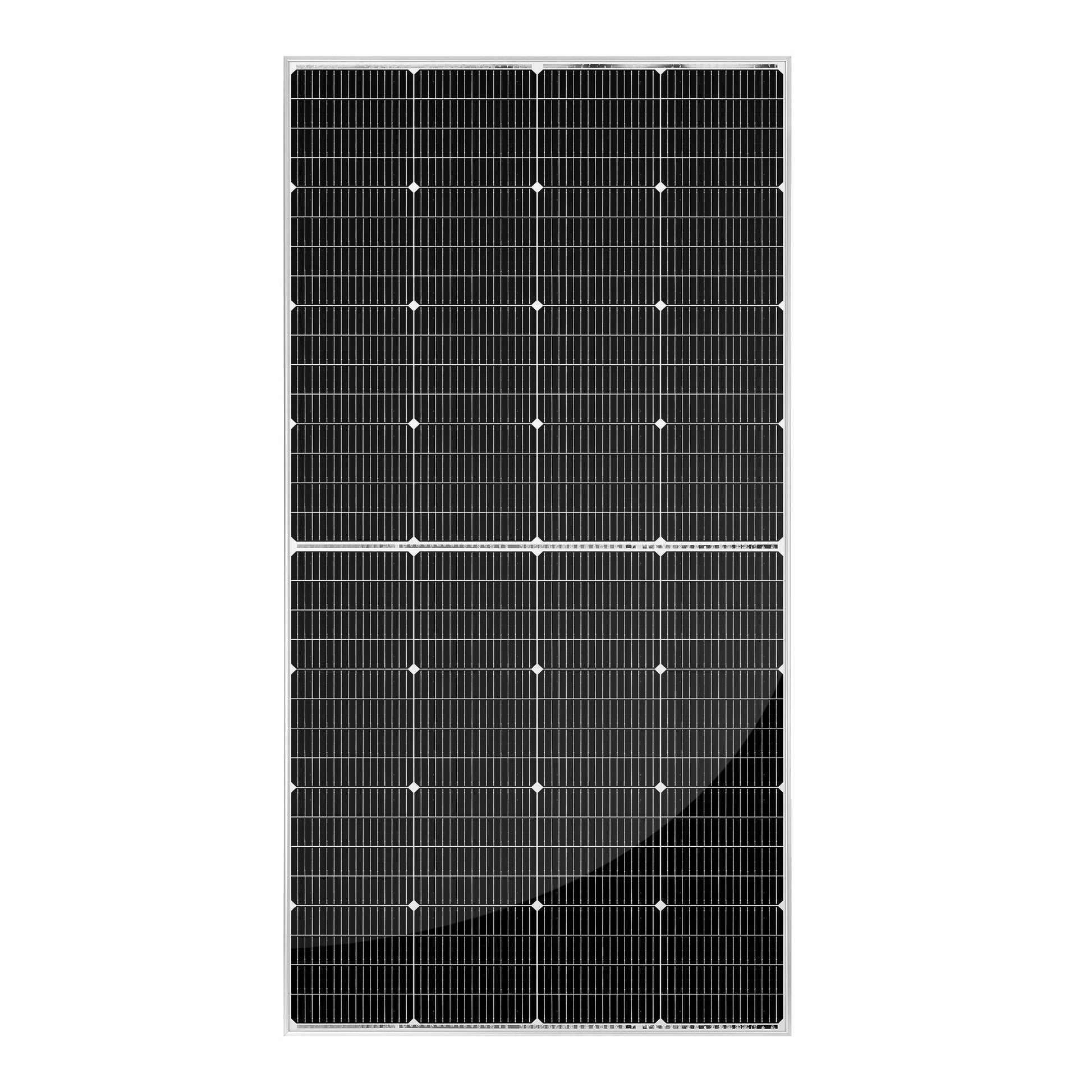

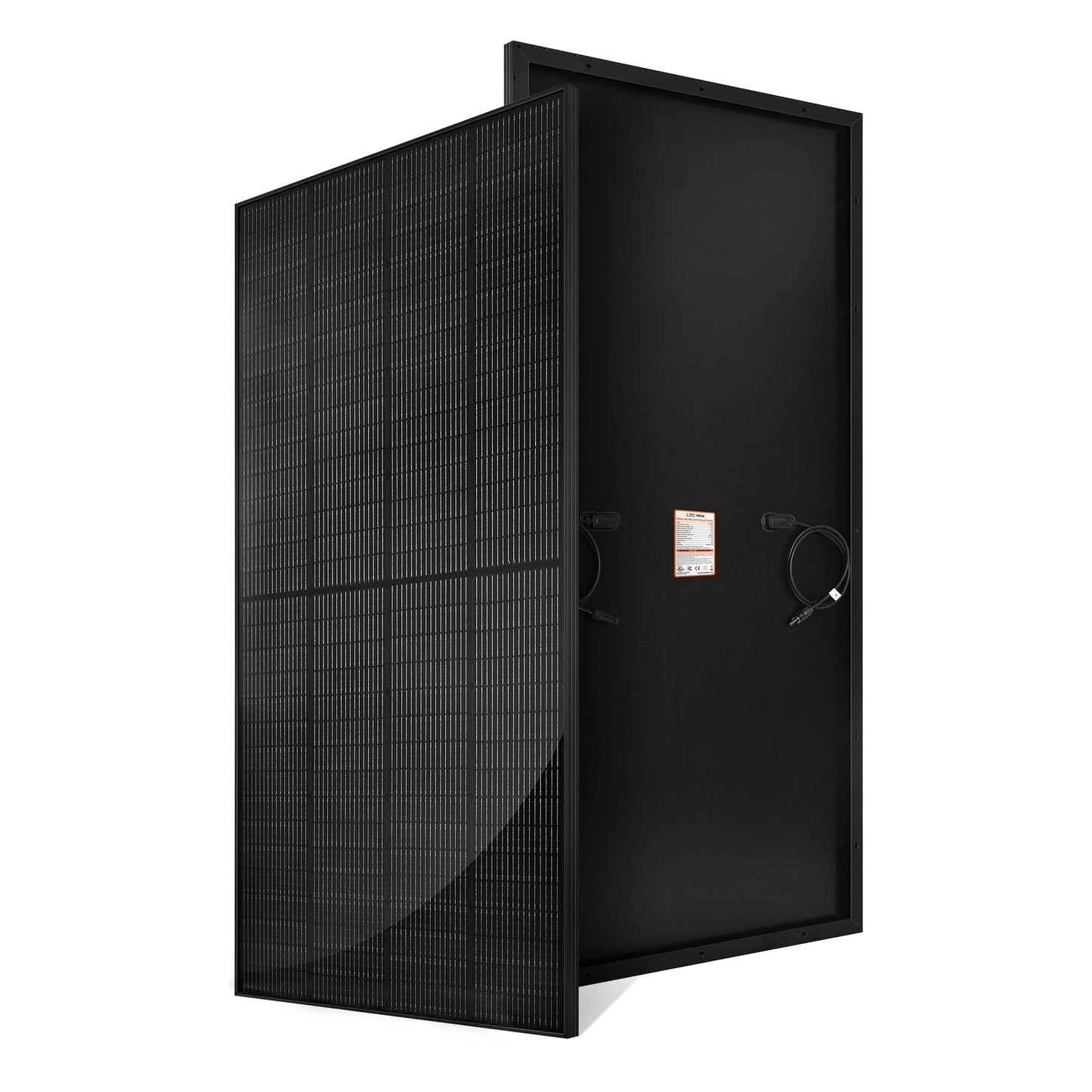

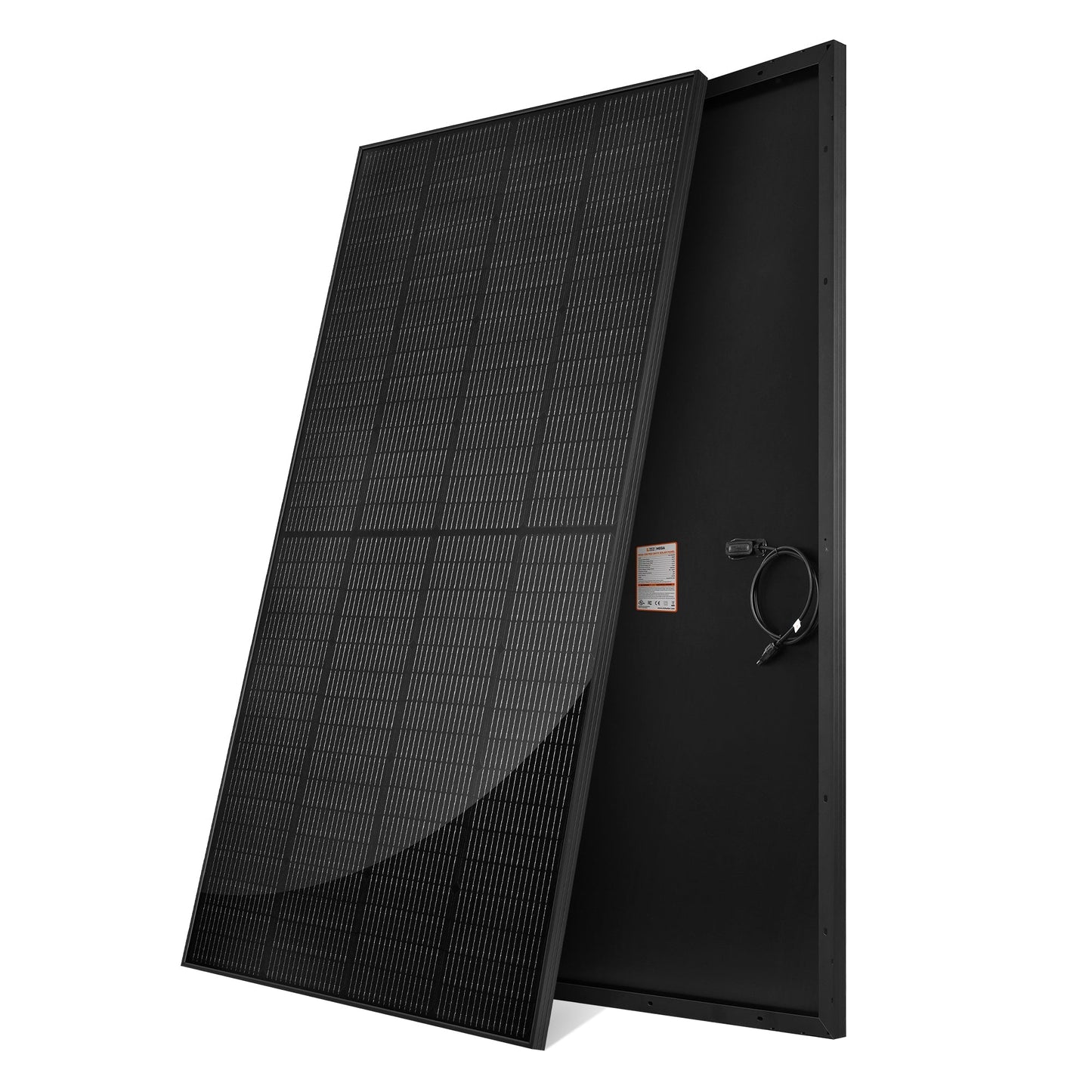

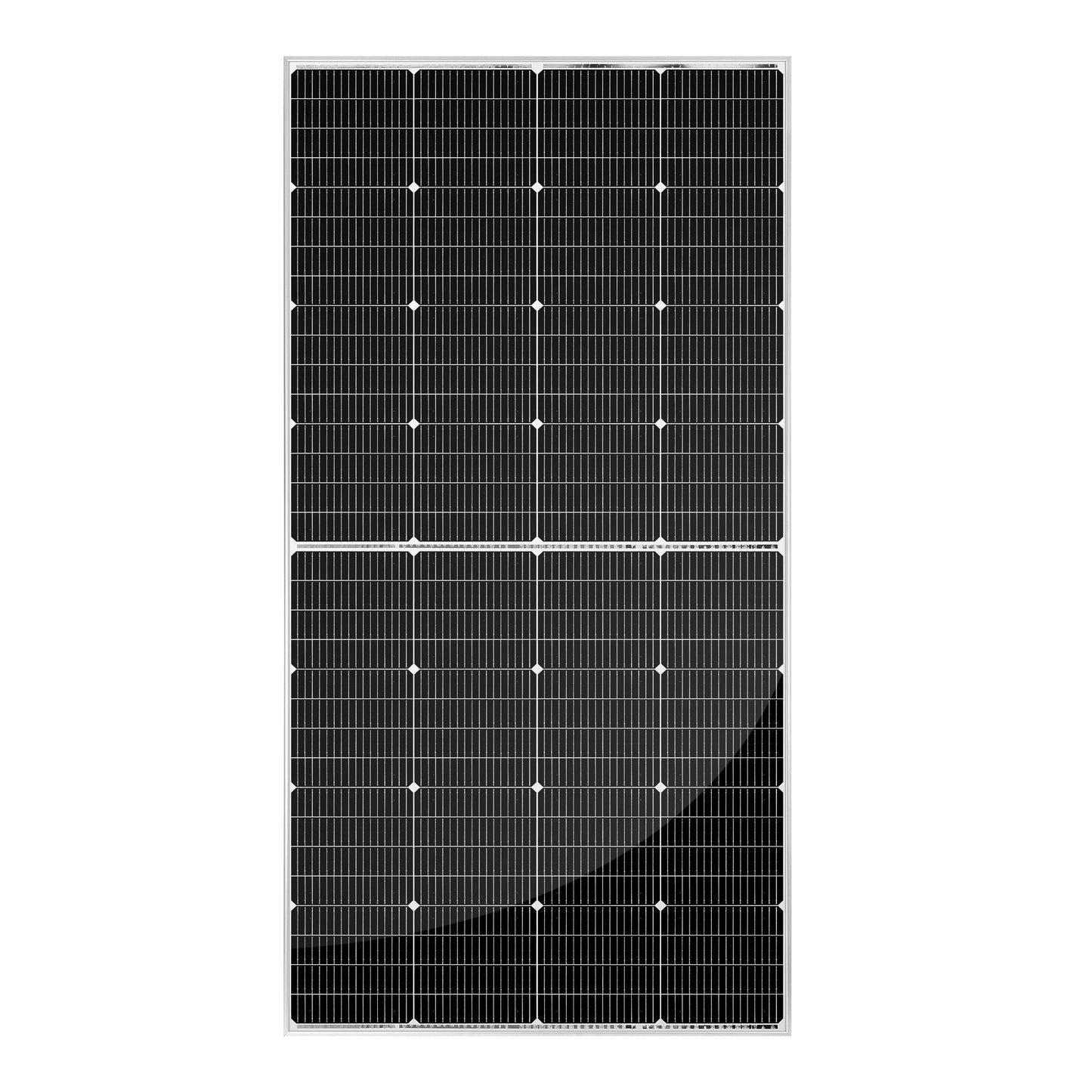

MEGA 250 PRO 24V Solar Panel

Overview

The MEGA 250 PRO is a top-of-the-line 24-volt solar panel designed for consistent power delivery. Perfect for RVs, cabins, tiny homes, and various off-grid applications, it features durable anodized aluminum framing and high-performance anti-reflective tempered glass, making it easy to install and resilient in extreme weather conditions.

Benefits

• Charge your appliances and batteries efficiently, reducing the need for generators and minimizing power worries.
• Utilize energy effectively throughout the day, even during overcast conditions, enhancing productivity at all hours.
• Enjoy long-lasting performance with a corrosion-resistant frame that lowers maintenance and replacement concerns.
• Flexible installation options, whether you choose series or parallel configurations for easy system expansion.
• Save time with pre-drilled holes and standard connectors that fit most common mounts and wiring systems.

Features

• Utilizes split energy technology for optimal output in diverse weather conditions.

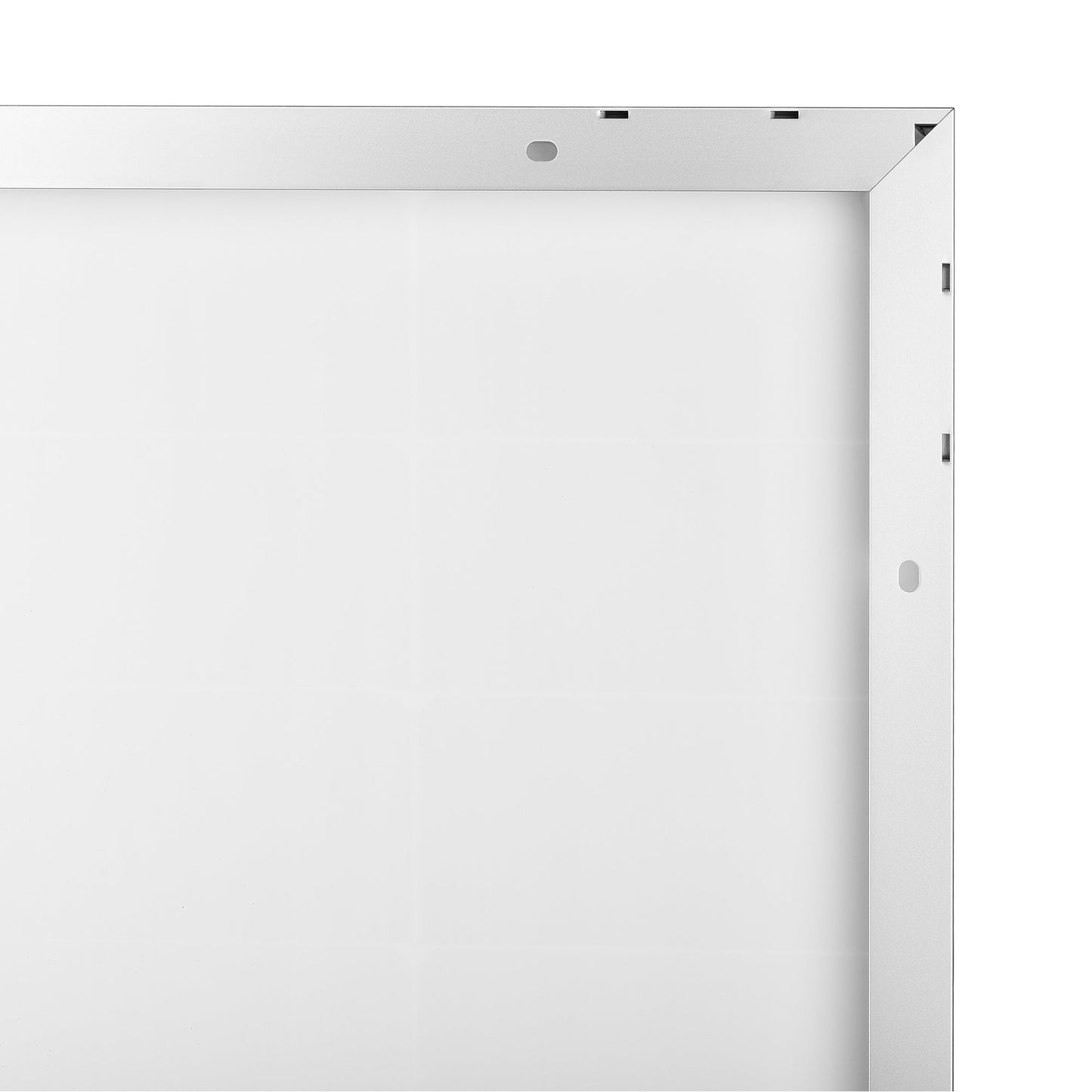

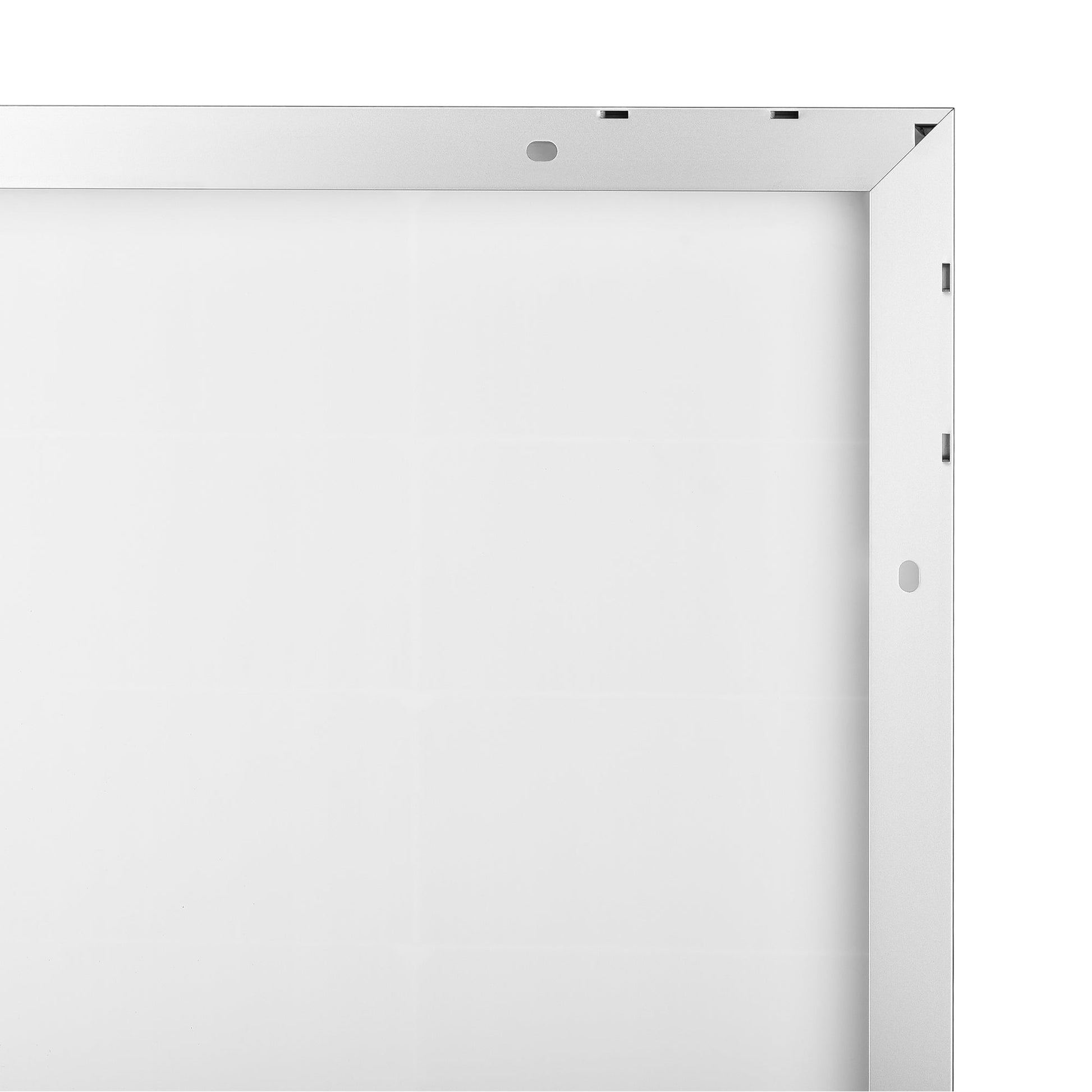

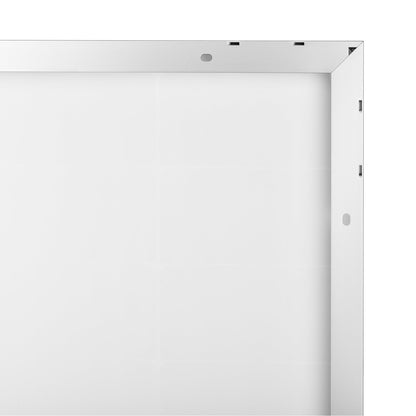

• Constructed with a robust anodized aluminum frame for enhanced strength and corrosion protection.

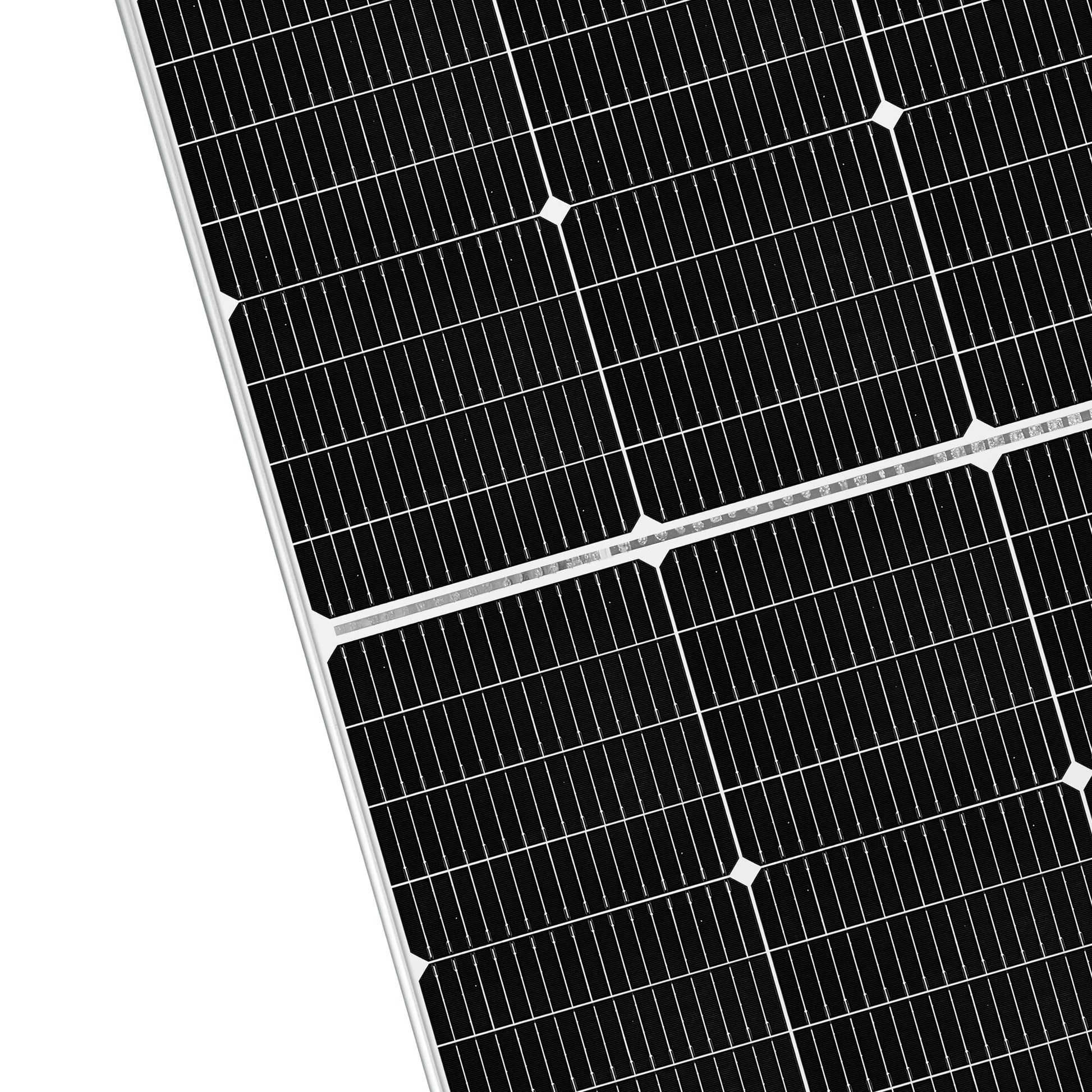

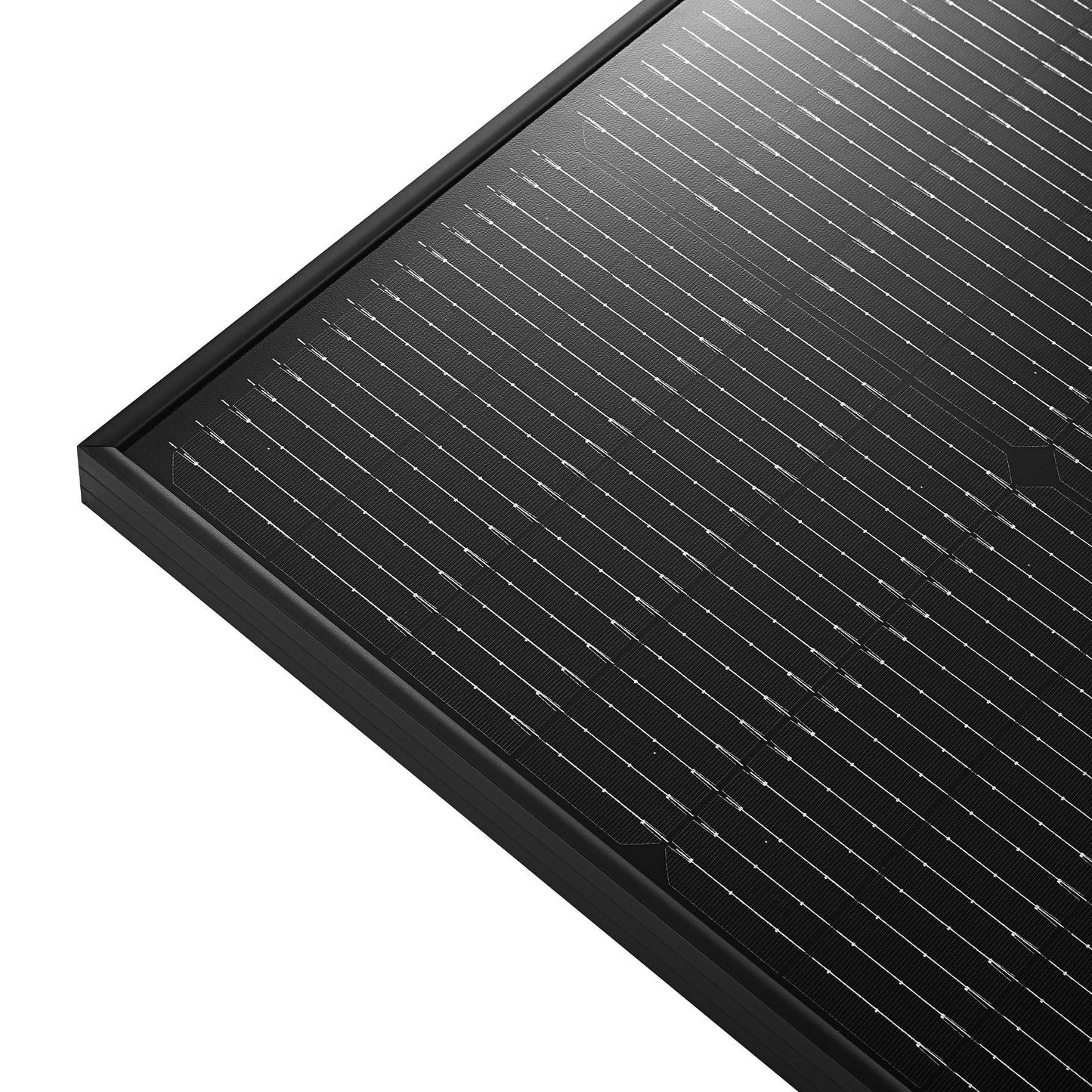

• Equipped with high-transmission anti-reflective tempered glass to maximize light absorption and durability.

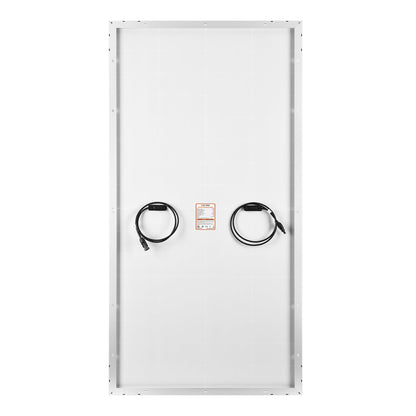

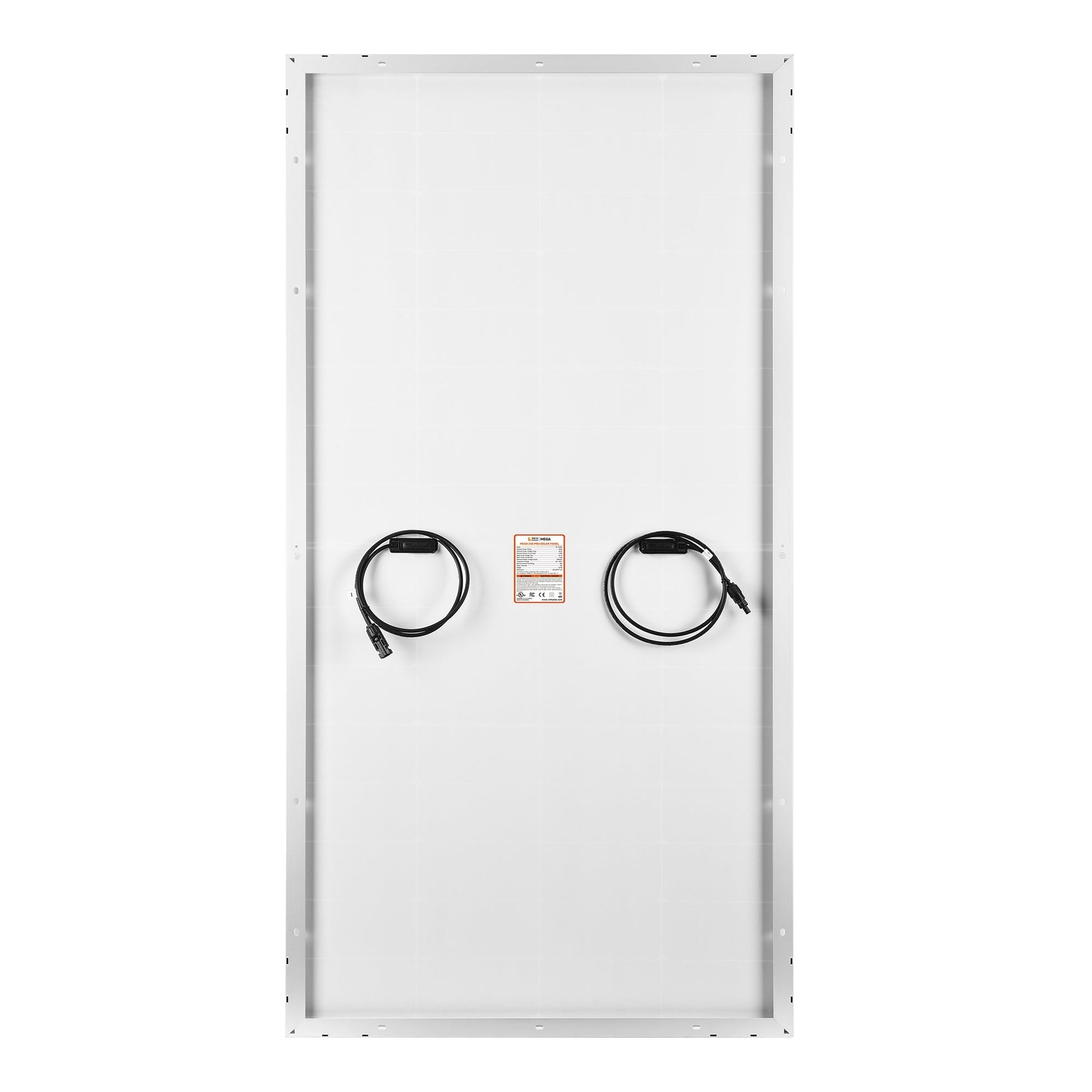

• Compatible with industry-standard quick-connect solar connectors for flexible wiring options.
• Delivers excellent performance in low-light conditions, allowing for earlier energy collection and longer solar usage.

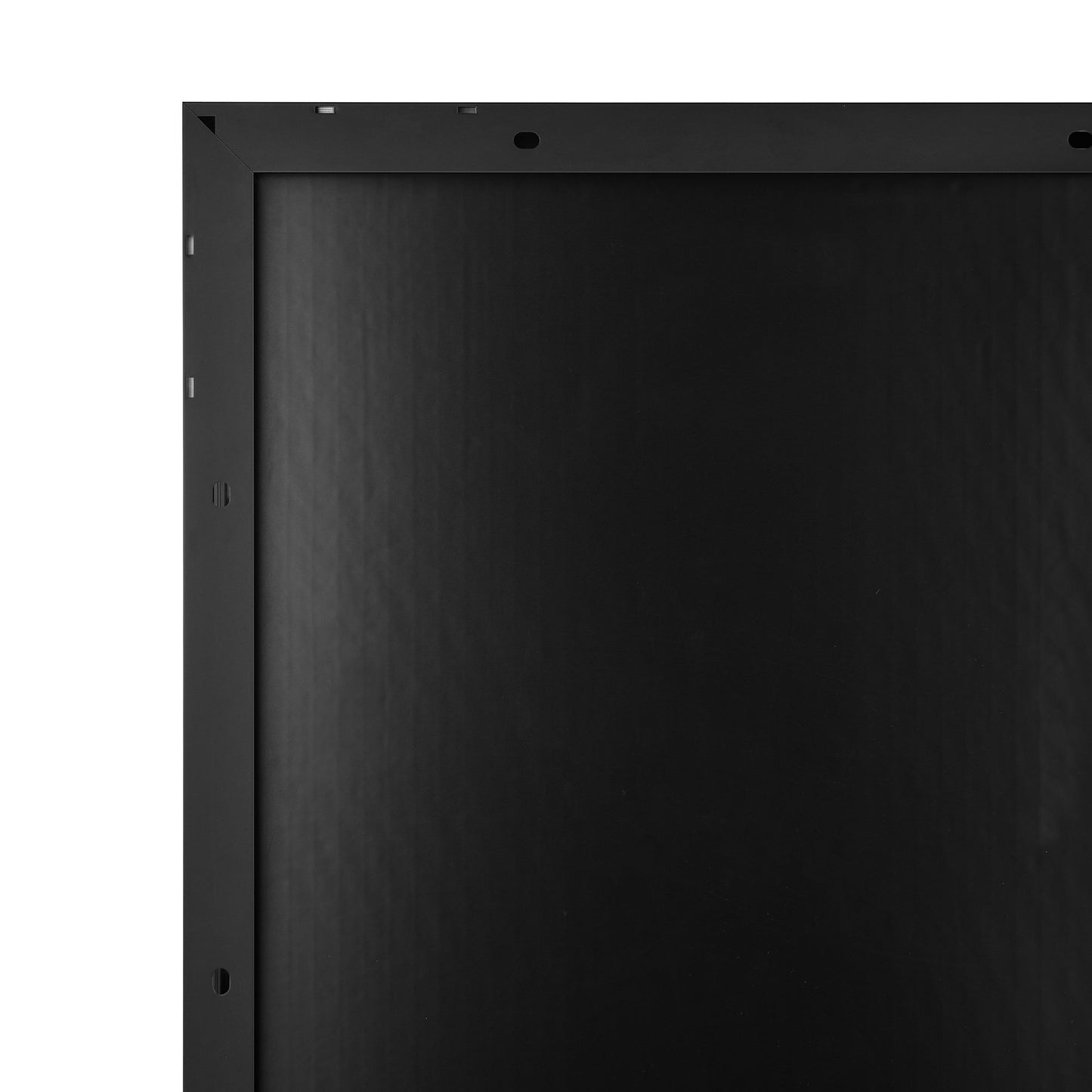

• Features pre-drilled mounting holes suitable for various installations, including ground, Z brackets, pole, and tilt mounts.
• Designed to withstand harsh environmental factors, ensuring longevity and reliability.
• Compatible with both on-grid and off-grid inverter systems.

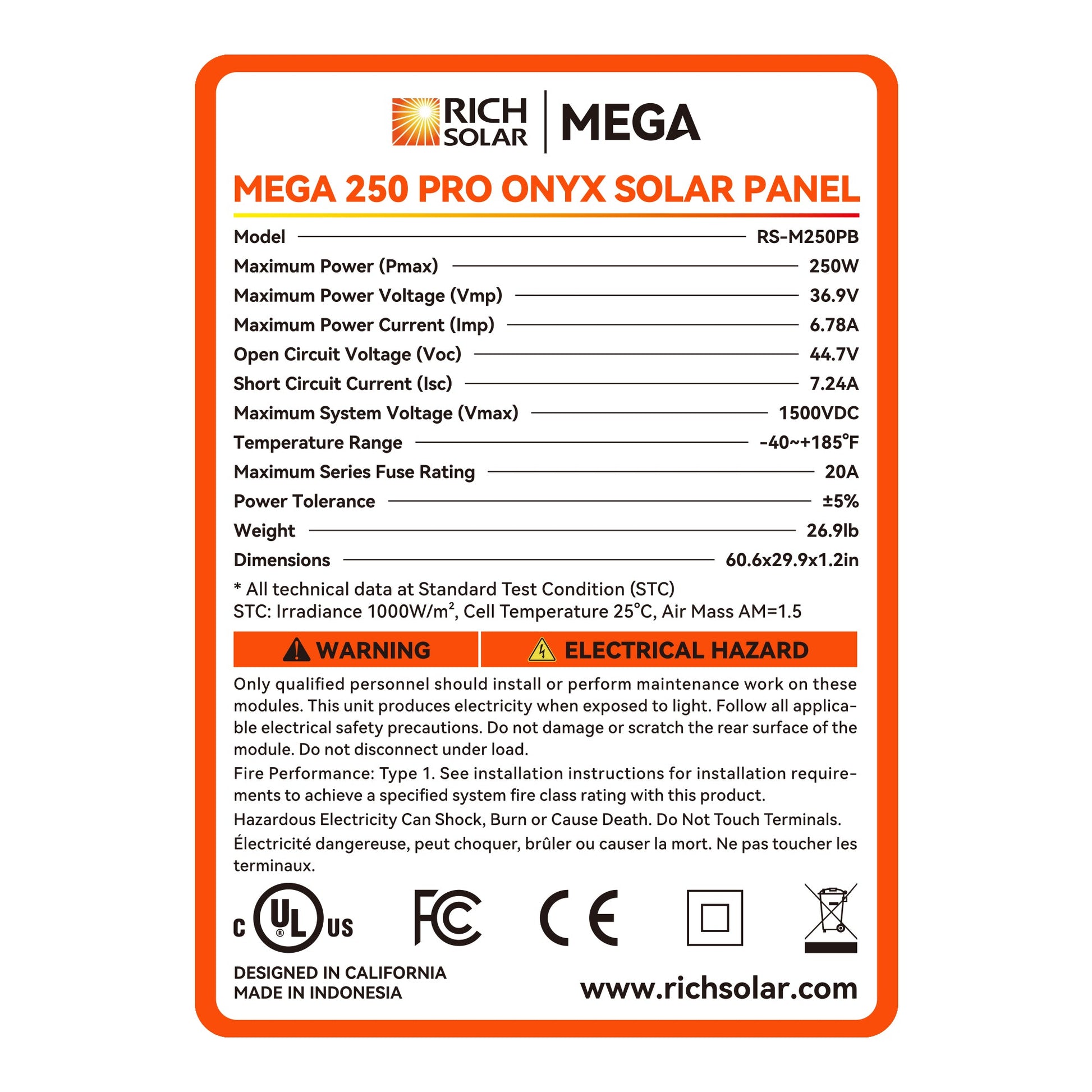

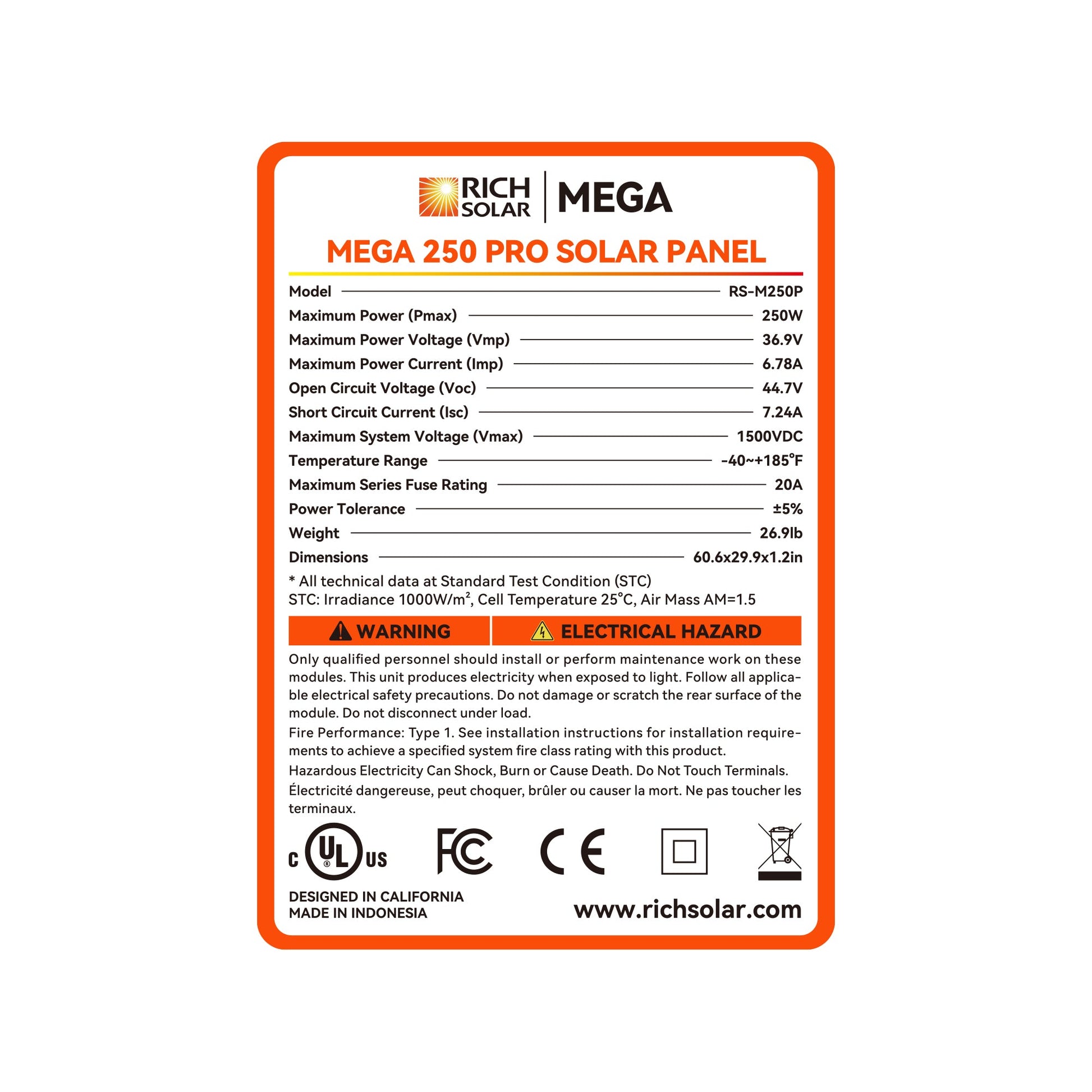

Specifications

• Maximum Power (Pmax): 250 W
• Maximum Power Voltage (Vmp): 36.9 V
• Maximum Power Current (Imp): 6.78 A
• Open Circuit Voltage (Voc): 44.7 V
• Short Circuit Current (Isc): 7.24 A
• Maximum System Voltage (Vmax): 1500 V DC
• Nominal System: 24 V
• Temperature Range: -40°F to +185°F (-40°C to +85°C)
• Weight: 26.9 lb (12.2 kg)

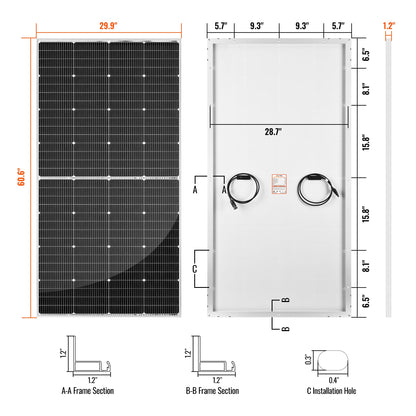

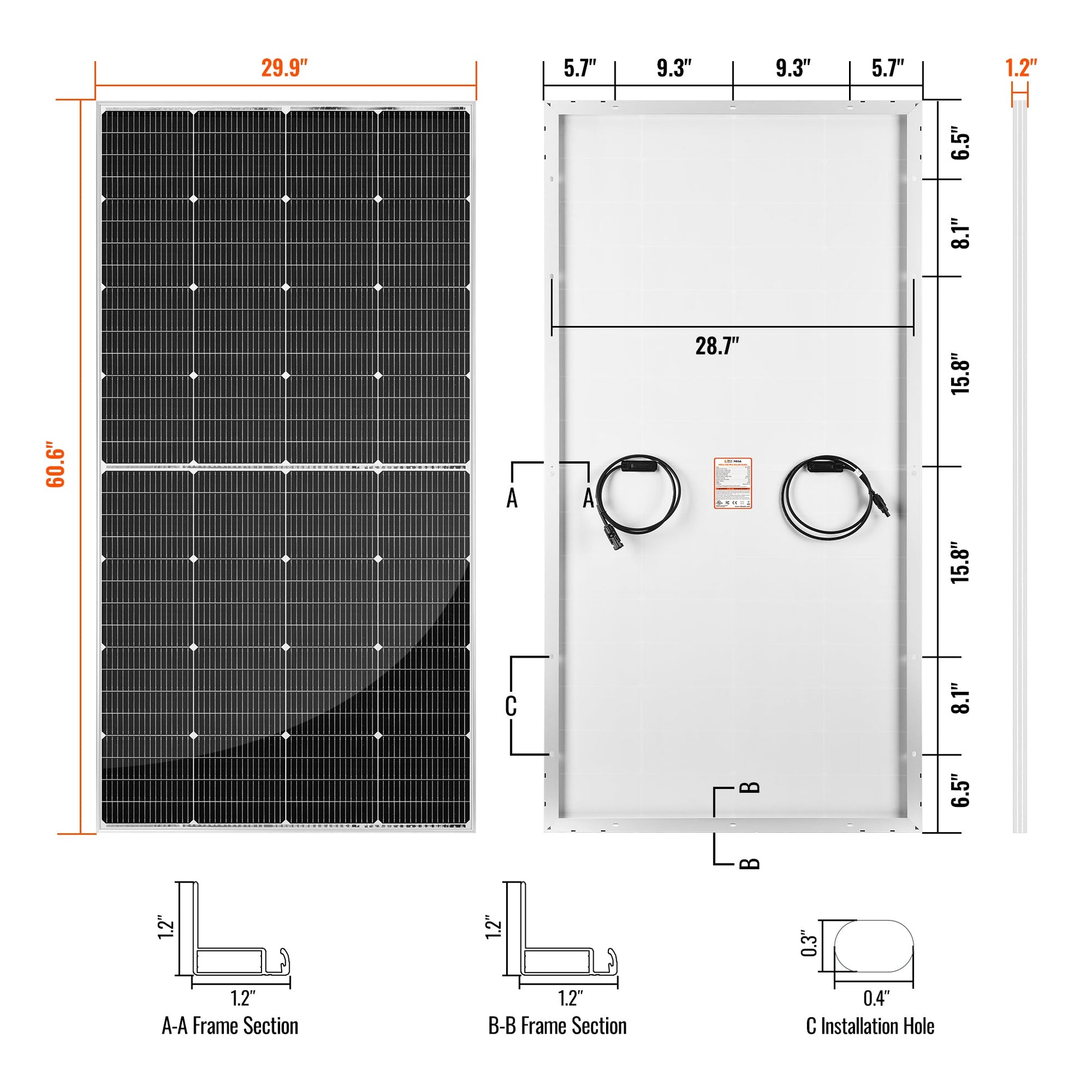

• Dimensions: 60.6 × 29.9 × 1.2 in (1540 × 760 × 30 mm)
• Glass: High-transmission anti-reflective tempered glass
• Frame: Anodized aluminum

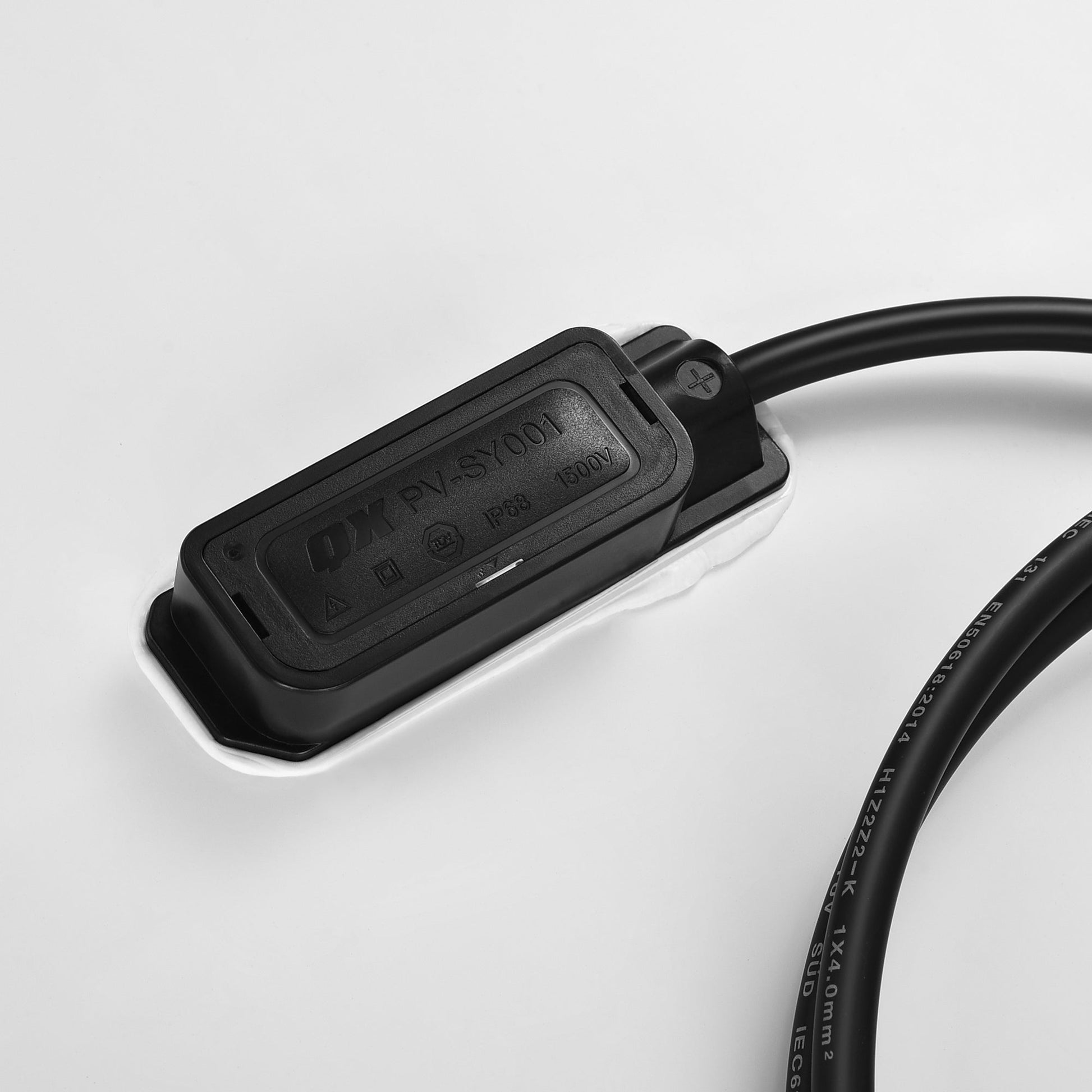

• Connectors: Industry-standard quick-connect solar connectors for series or parallel wiring
• Mounting: Pre-drilled holes for ground, Z brackets, pole, and tilt mounts
• Warranty: 25-year output warranty; 10-year workmanship warranty
