Complete 13kW Off-Grid Solar Power System with 20.48 kWh Rack Batteries

Overview

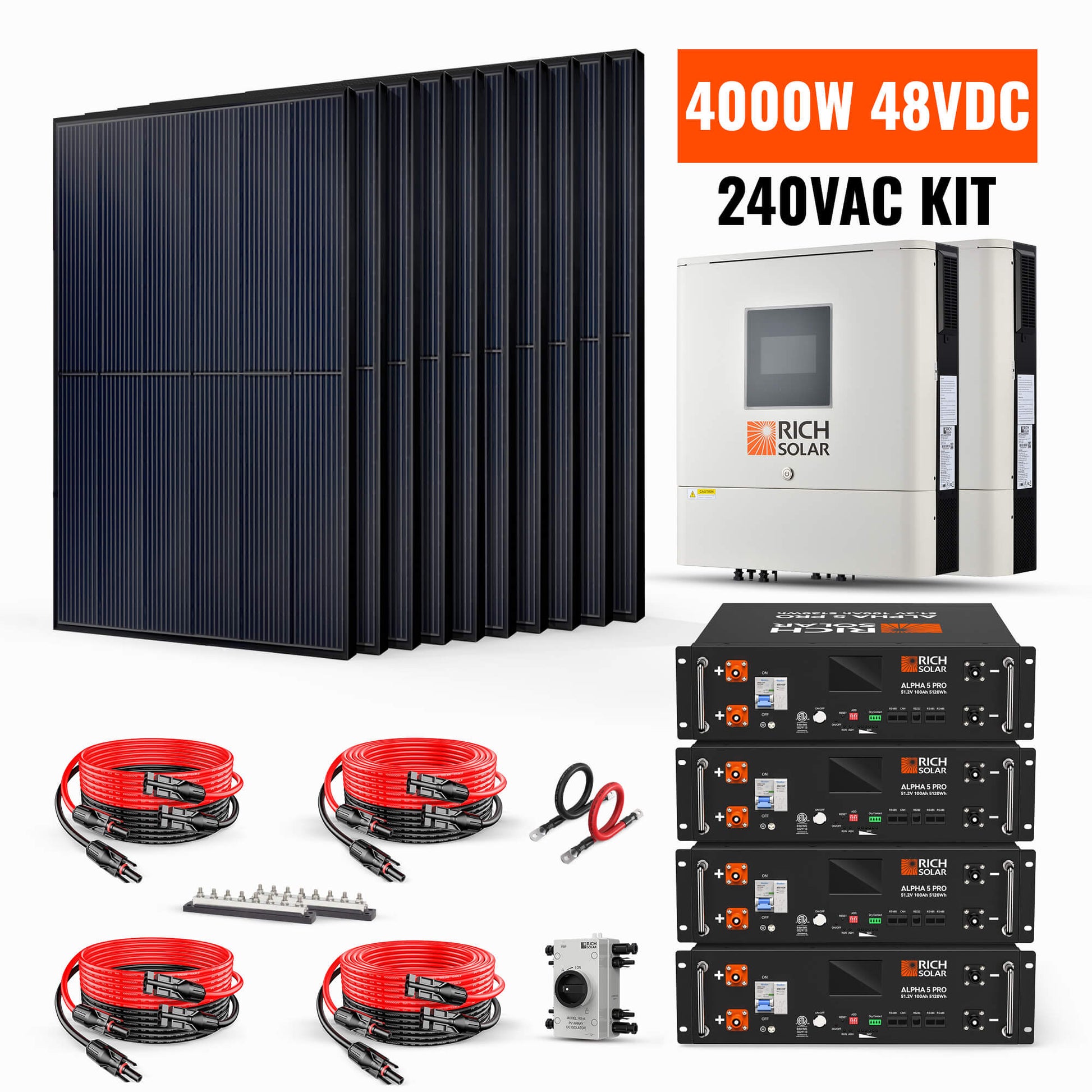

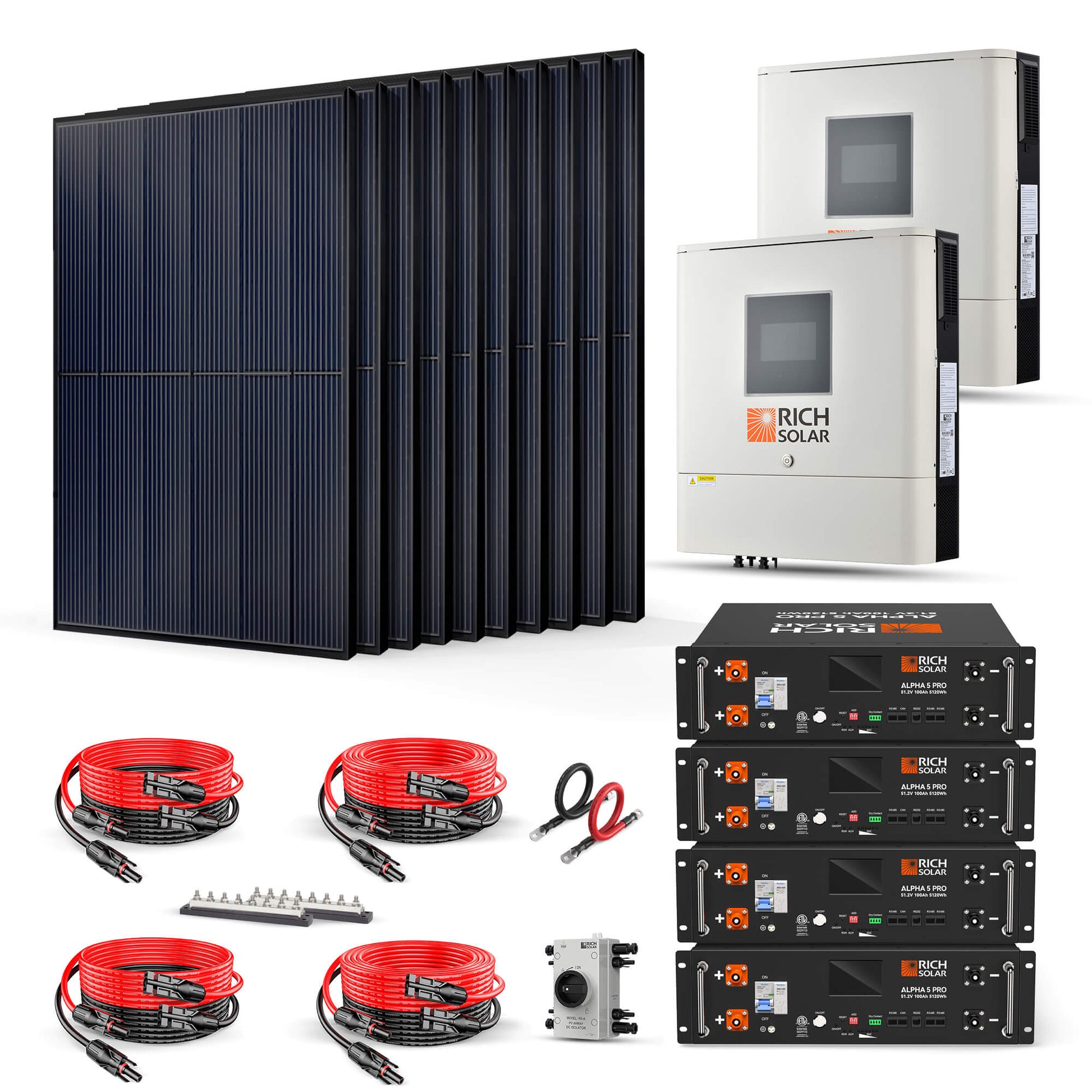

This comprehensive off-grid solar system features dual 6.5 kW inverters, ten 410 W solar panels, and four 5.12 kWh rack-mounted lithium batteries. It delivers dependable, high-capacity power for homes or small sites, allowing you to maintain energy independence and keep critical systems operational during blackouts.

Benefits

• Reliable power during outages ensures vital appliances continue to operate, minimizing disruptions to your daily life.
• Generate and store your own energy, leading to reduced utility bills and enhanced energy self-sufficiency.
• Expandable capacity accommodates future needs or larger power demands, offering flexibility over time.
• Enjoy quieter and cleaner energy sources compared to traditional generators, providing a more peaceful environment.
• Simplified installation and maintenance with a rack-mounted battery design and included connections for ease of setup.

Features

• Two 48 V off-grid inverters (Model H6548S) for parallel operation, increasing output and providing backup.
• Robust solar array consisting of ten MEGA 410W panels (Model RS-M410), ensuring consistent energy production.
• Designed with rack-mounted lithium battery modules (Model RS-B5121P) for efficient storage in a compact format.
• Integrated DC isolation complemented by a PV DC quick disconnect (Model RS-i4) for safe maintenance of solar panels.
• Durable 600 A busbars for secure power distribution between batteries and inverters.
• All essential interconnects, such as extension cables and a 4/0 AWG battery cable, are included for straightforward installation.

Specifications

• Inverters: 2 × 6500 W, 48 V Off-Grid Solar Inverter (Model H6548S) with a combined continuous capacity of 13,000 W.
• Solar panels: 10 × MEGA 410 W (Model RS-M410) yielding a total nominal power of 4,100 W.
• Batteries: 4 × ALPHA 5 PRO 5.12 kWh Server Rack Lithium Battery (Model RS-B5121P) offering a total usable capacity of 20.48 kWh.
• Busbars: 2 × 600 A busbar units for effective power distribution.
• Extension cables: 2 × 10 AWG, 30 ft (Model RS-30102) and 2 × 10 AWG, 10 ft (Model RS-10102).
• PV DC Quick Disconnect: 1 × RS-i4 for safe isolation of PV strings.
• Battery cable: 1 × 4/0 AWG, 5 ft (Model RS-4/0A5F3) for main connections.
• System voltage: 48 V battery/inverter nominal as per inverter specifications.
• Form factor: Rack-mounted battery modules with inverters and additional system components designed for off-grid installation.
