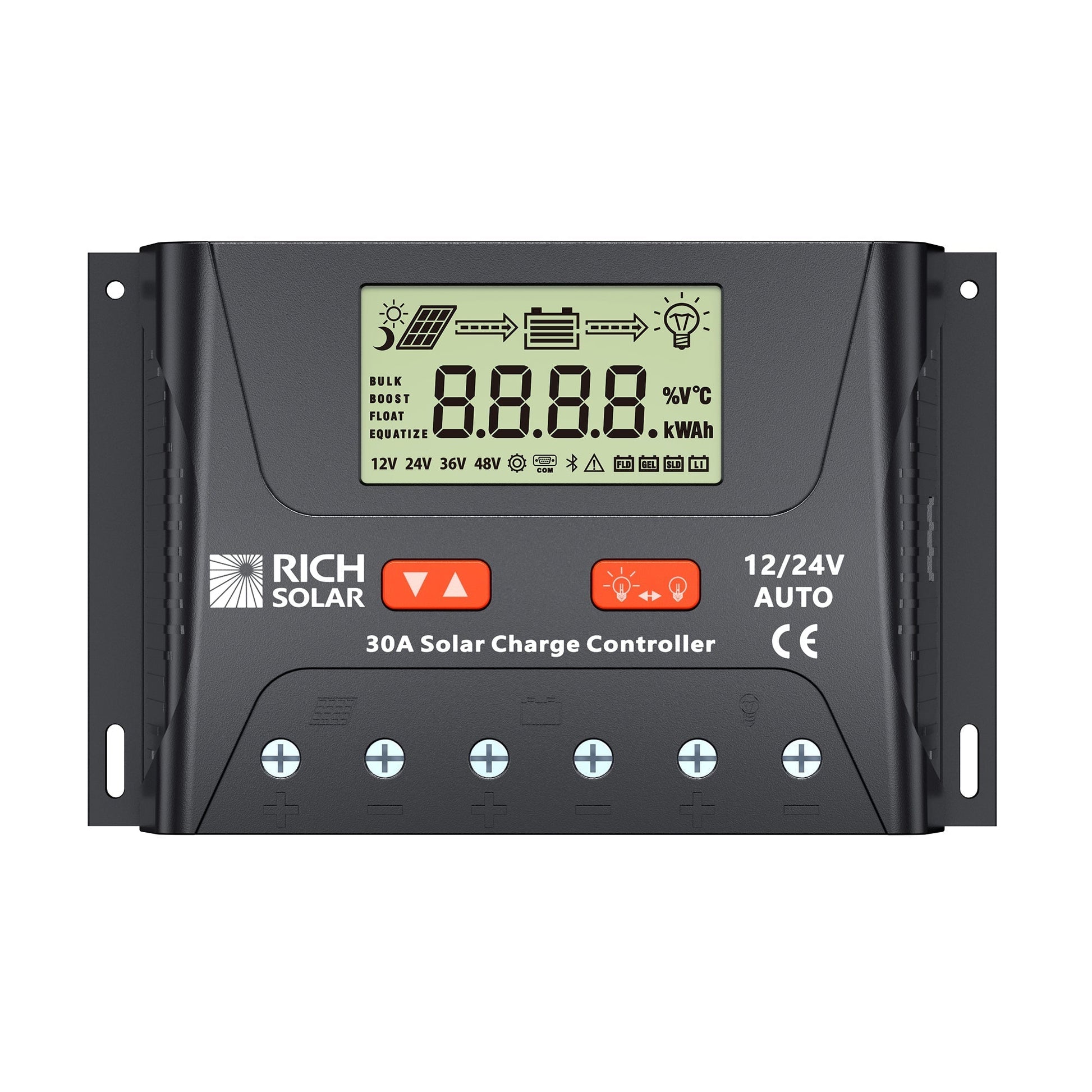

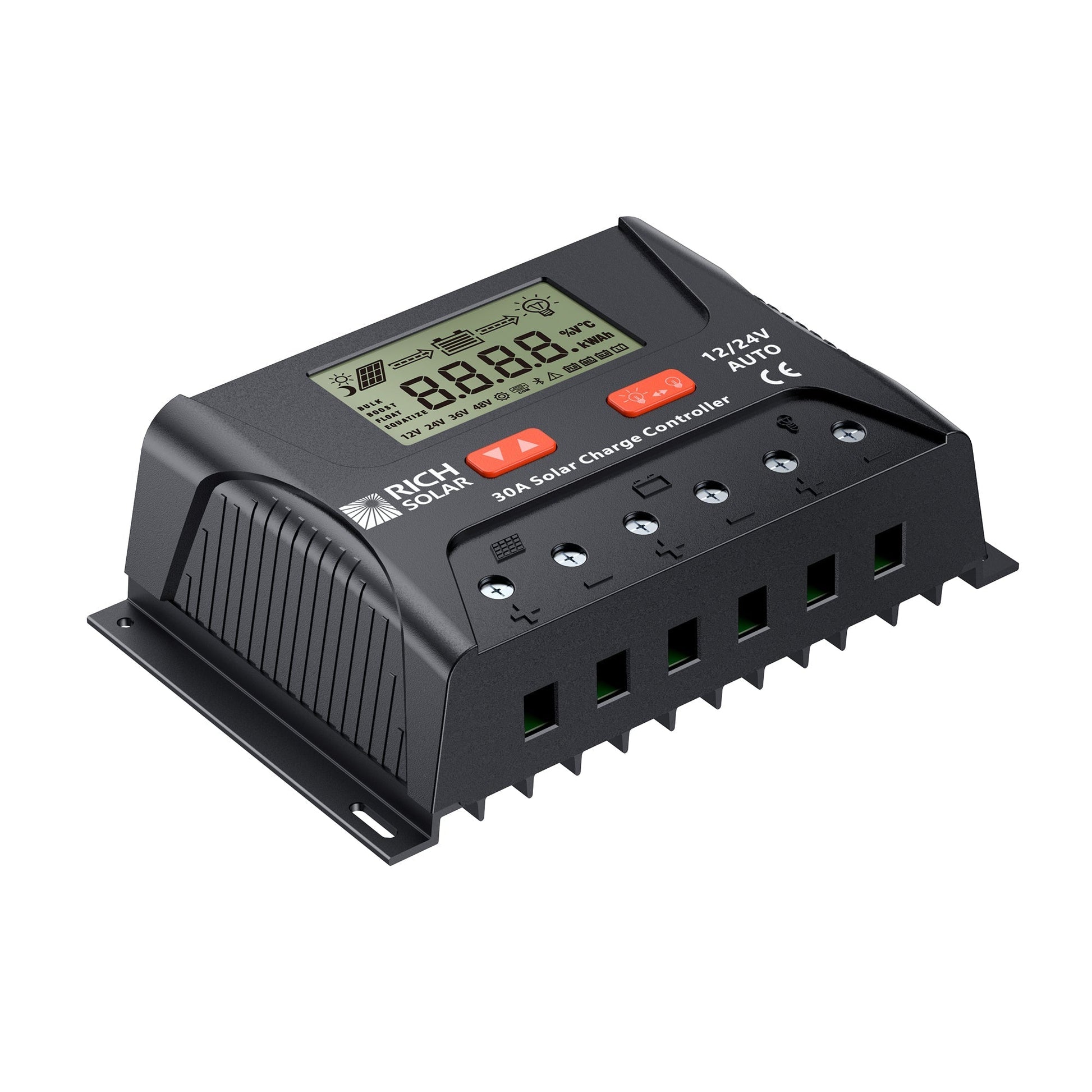

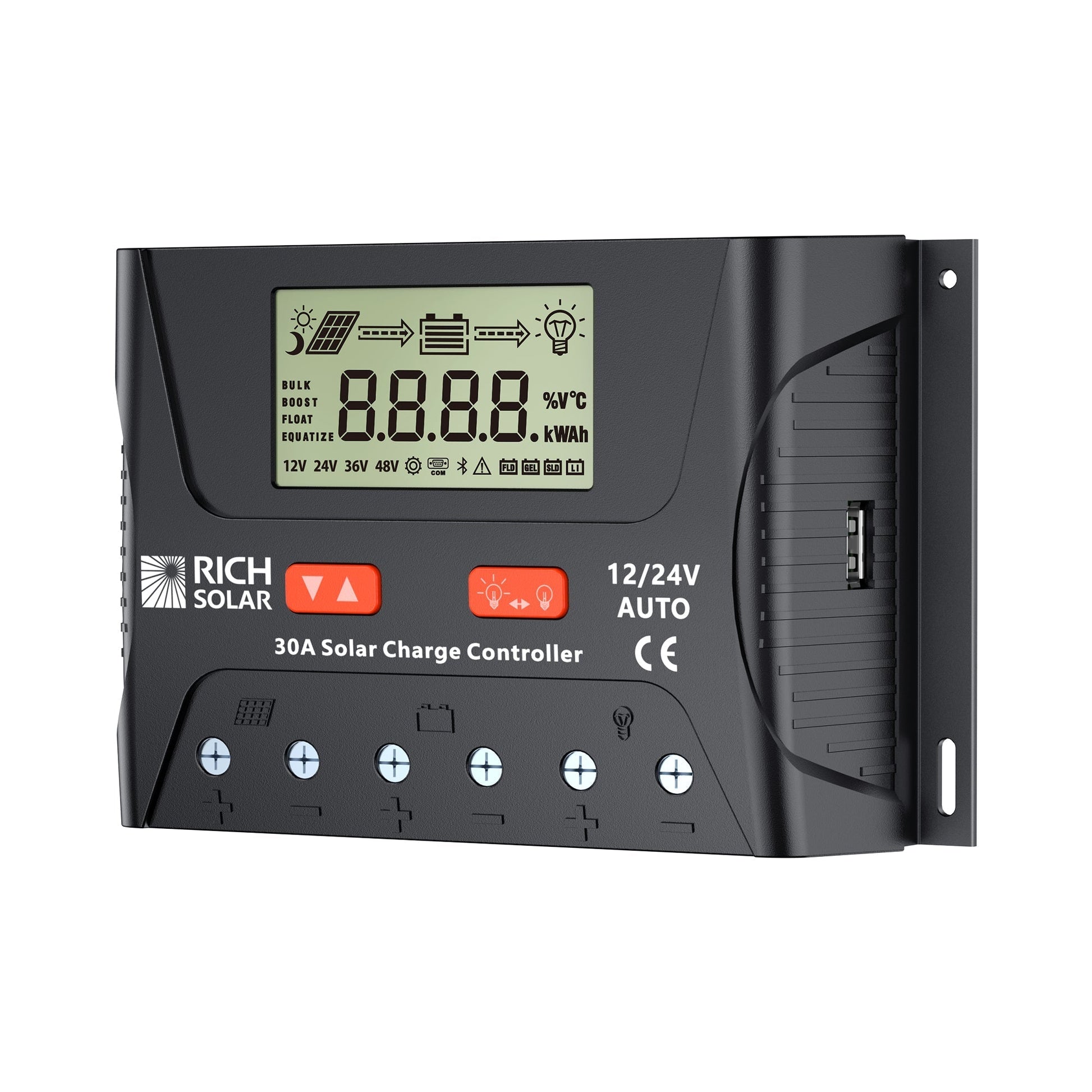

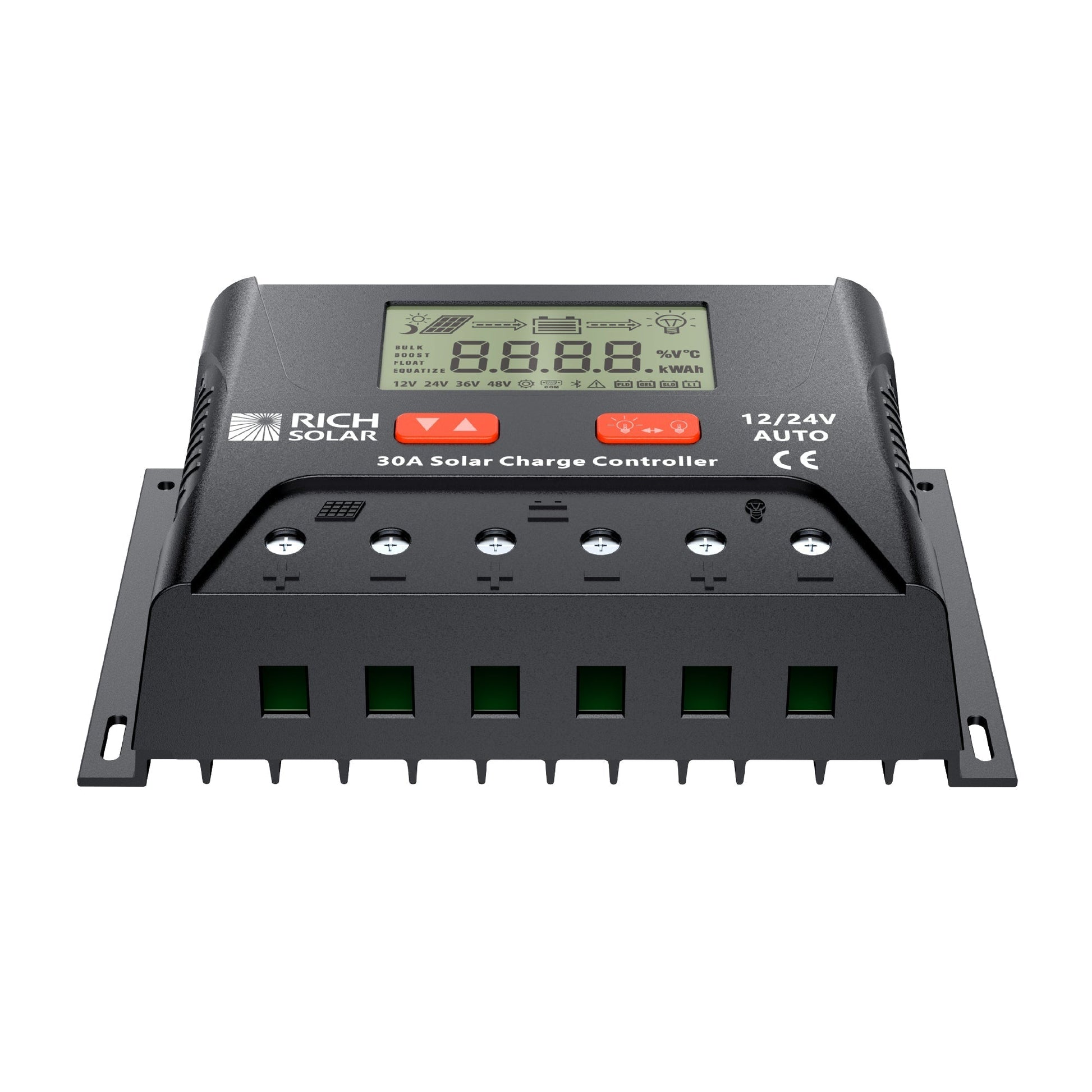

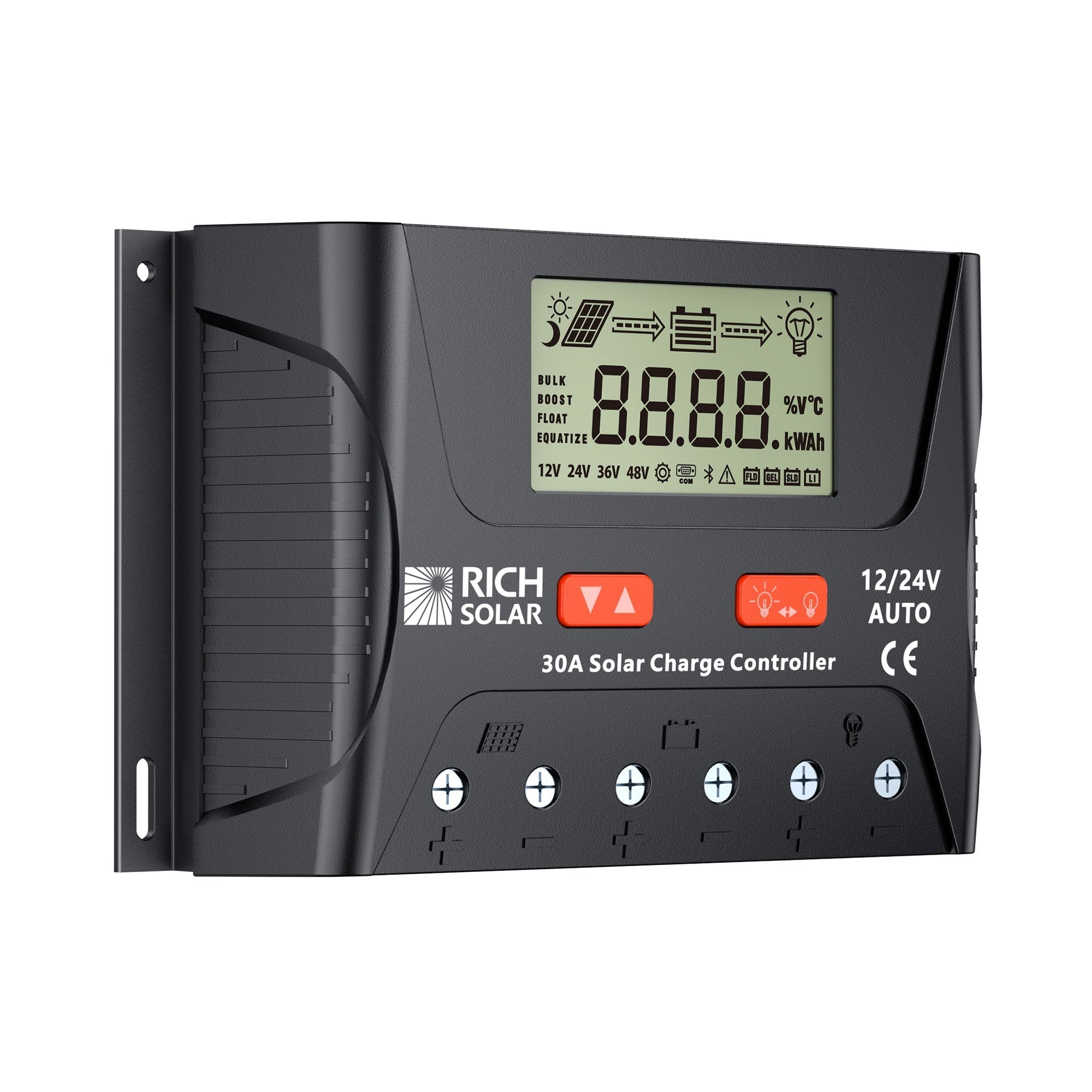

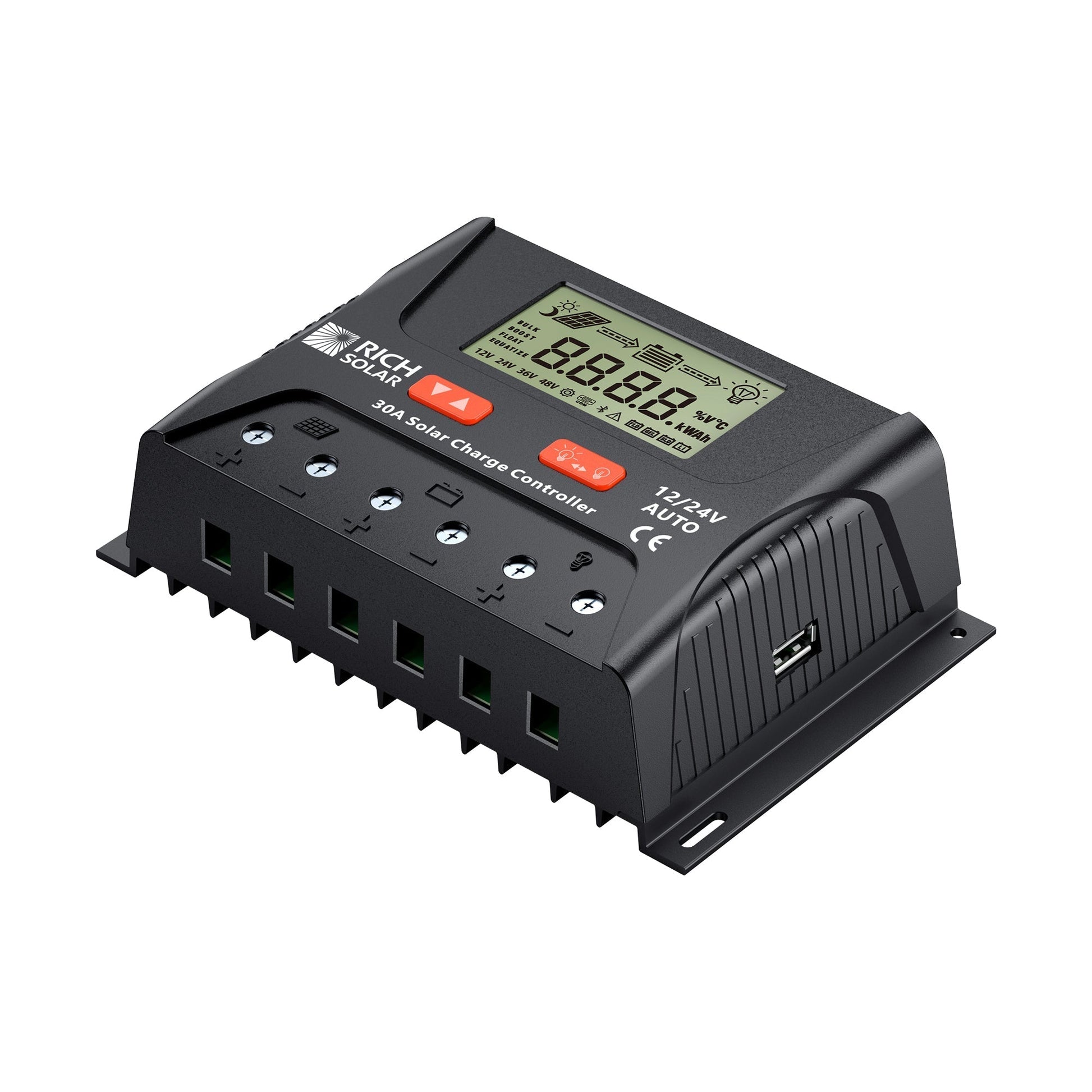

Smart 12V/24V PWM Charge Controller - 30A

Overview

This 30A PWM charge controller efficiently identifies whether you're using a 12V or 24V system and optimizes charging for Sealed, GEL, Flooded, and Lithium batteries. Featuring three-stage charging, temperature compensation, various load modes, and built-in safety protections, this device offers reliable solar charging with minimal maintenance. The clear dot-matrix LCD and intuitive two-button operation simplify the user experience.

Benefits

• Extend battery life and minimize maintenance with charging profiles that optimize performance and prevent sulfation on lead-acid batteries.
• Streamline installation with automatic voltage detection for 12V/24V systems and an easy manual override option.
• Protect your equipment from damage or downtime with robust safeguards against overcharge, over-discharge, overload, short-circuits, and reverse polarity.
• Customize control of lights and loads to fit your schedule or requirements, thanks to five different operating modes.
• Enjoy confidence in various settings, with clear display feedback and retained settings for use after power interruptions.

Features

• Auto Voltage Detection: Automatically recognizes 12V or 24V systems, with the option for manual setup
• Multi-Battery Support: Tailored charging profiles for Sealed, GEL, Flooded, and Lithium batteries
• 3-Stage PWM Charging: Boost, Float, and Equalization processes to enhance battery health (Equalization not applied to GEL or Lithium)
• Temperature Compensation: Automatically adjusts voltage by 3.0 mV/°C per 2V, excluding Lithium batteries
• Five Load Modes: Options include Light Control, Timer Control, Manual, Debug, and Always ON
• Comprehensive Protections: Safeguards against overcharging, over-discharging, overloads, short-circuits, and reverse polarity
• User Interface: Real-time monitoring via a dot-matrix LCD with easy two-button control and memory for stored settings
• Durable Construction: Designed with an IP30 enclosure for reliable operation across various temperatures

Specifications

• Rated Current: 30A
• System Voltage: Automatically recognizes 12V / 24V (manual setup optional)
• Rated Power: 450W at 12V, 900W at 24V
• Maximum Solar Input Voltage: Less than 55V
• Maximum Battery Voltage: Less than 34V
• No-load Loss: Less than 13 mA at 12V, less than 15 mA at 24V
• Battery Compatibility: Supports Lithium, Sealed, GEL, and Flooded batteries
• Temperature Compensation: Adjusts by 3.0 mV/°C per 2V, not applicable for Lithium
• Operating Temperature: Ranges from -13°F to +131°F (-25°C to +55°C)
• Protection Rating: IP30
• Dimensions: 164 x 103 x 47 mm (6.46 x 4.07 x 1.85 inches)
• Net Weight: 0.39 kg (0.86 lbs)
