MEGA 550: 550W TOPCon Solar Panel

Overview

The MEGA 550 is a powerful 550W solar panel engineered to produce maximum energy in a compact design. Featuring advanced TOPCon cell technology, a sturdy anodized aluminum frame, and high-performance AR-coated tempered glass, this panel is ideal for various installation environments, both off-grid and on-grid. Note that this product is available for pallet shipping only. For additional shipping options or bulk quantities, please contact us at 1-800-831-9889 or email sales@richsolar.com.

Benefits

• Reduce electricity costs by generating more energy per panel, requiring fewer installations.
• Conserve roof or mounting space with a high output of 550W and 21.3% module efficiency.
• Experience quicker setup and simplified handling with pre-drilled holes and standard quick-connect cables.
• Enjoy reliable power generation in various lighting conditions, such as mornings, evenings, and cloudy days, due to excellent low-light performance.
• Gain confidence from strong environmental ratings and thorough quality assessments.
• Count on long-lasting performance with a 25-year limited power output warranty and a 10-year workmanship warranty.

Features

• Maximum power generation of 550W powered by TOPCon solar cell technology.
• Ten-busbar cell design for enhanced current collection efficiency.
• Durable anodized aluminum frame for strength and corrosion resistance.
• High-transmission, anti-reflective (AR) coated tempered glass for optimal light capture.
• Plug-and-play, IP68-rated waterproof junction box equipped with built-in bypass diodes.
• IP67-rated waterproof solar connectors with industry-standard quick-connect cables for flexible configuration.
• Pre-drilled mounting holes compatible with various types of installations, including ground mounts and pole mounts.
• Versatile compatibility with both on-grid and off-grid inverter systems, suitable for residential, agricultural, commercial, and mobile applications.
• Engineered to endure severe weather conditions, tested rigorously for wind, snow, and hail resistance.

Specifications

• Maximum Power (PMAX): 550 W
• Maximum Power Voltage (VMP): 41.96 V
• Maximum Power Current (IMP): 13.11 A
• Open Circuit Voltage (VOC): 49.90 V
• Short Circuit Current (ISC): 14.00 A
• Module Efficiency: 21.3%
• Nominal System: 24 V generation
• Max Series Fuse Rating: 30 A
• Weight: 73.19 lb (33.2 kg)

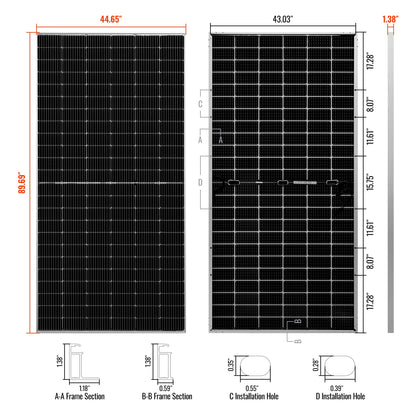

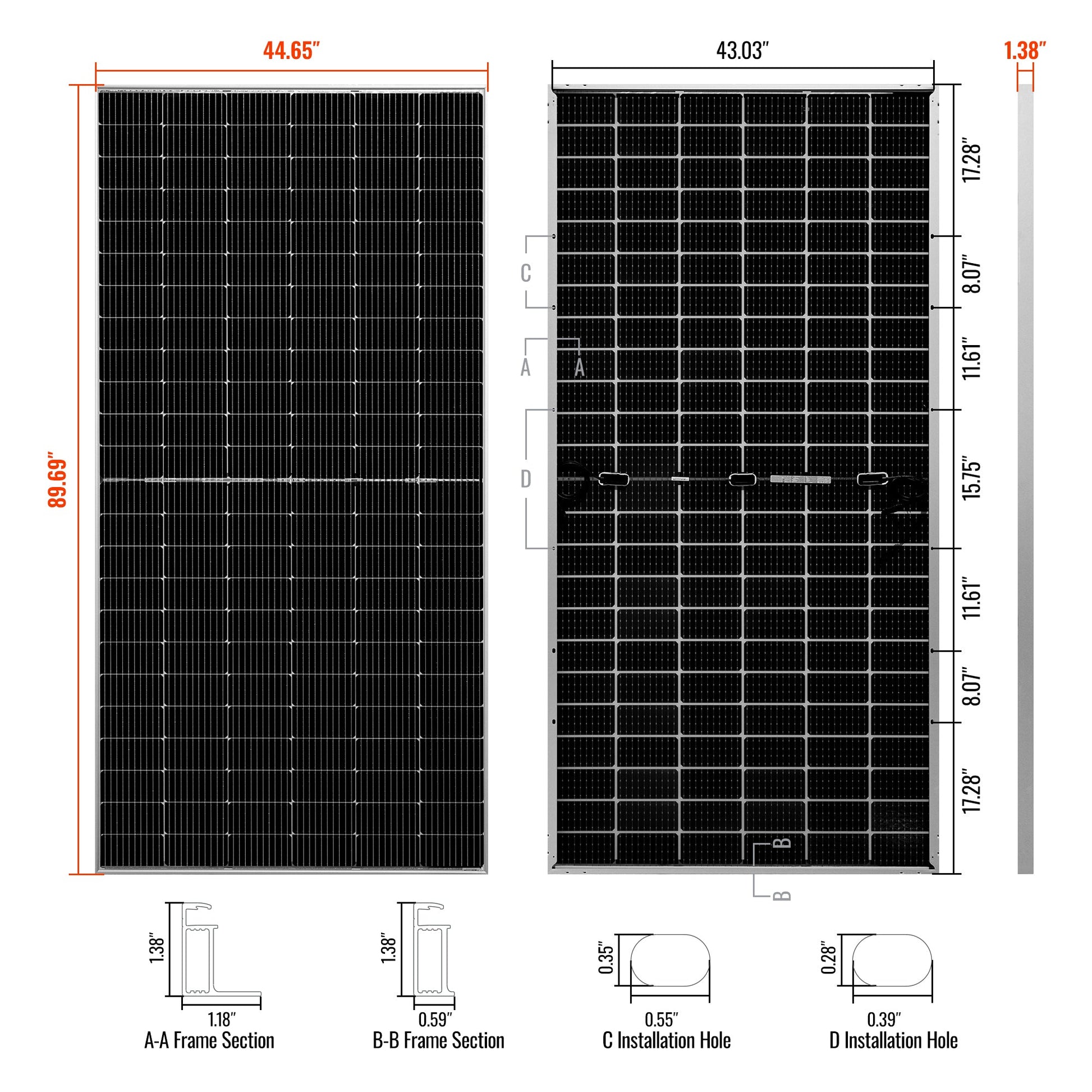

• Dimensions: 89.69 x 44.65 x 1.38 in
• Cell Configuration: 10-busbar TOPCon cells
• Frame Material: Lightweight anodized aluminum
• Glass: AR-coated tempered glass
• Junction Box: IP68-rated with built-in bypass diodes
• Connectors: IP67-rated waterproof solar connectors; leads (pair): 4 ft each
• Environmental Ratings: 2400 Pa wind load, 5400 Pa snow load, hail resistant up to 35 mm at 97 km/h
• Quality Testing: Over 30 in-house evaluations including UV, thermal cycling, and PID resistance, along with 100% EL double inspection
• Warranty: 25-year limited power output warranty; 10-year workmanship warranty

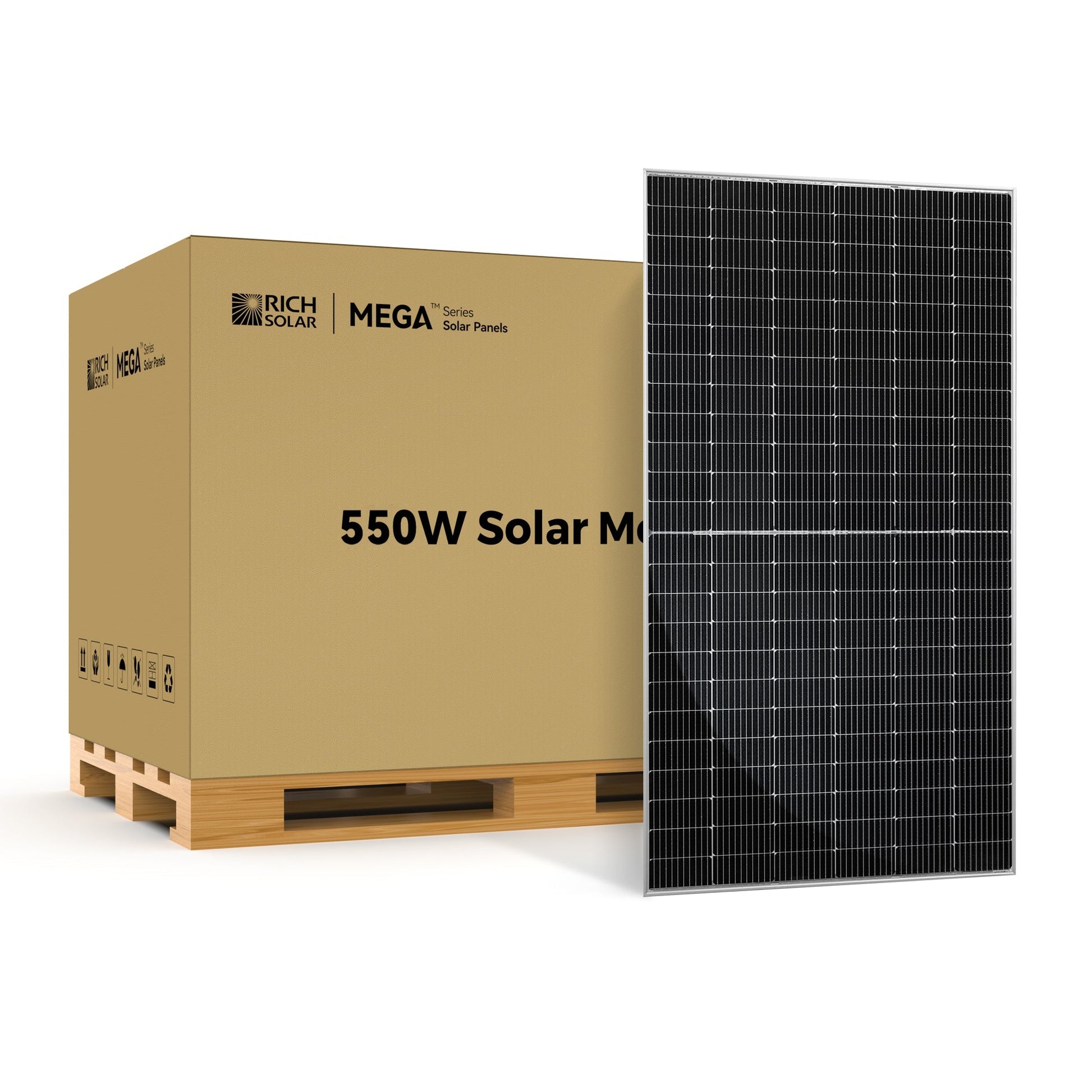

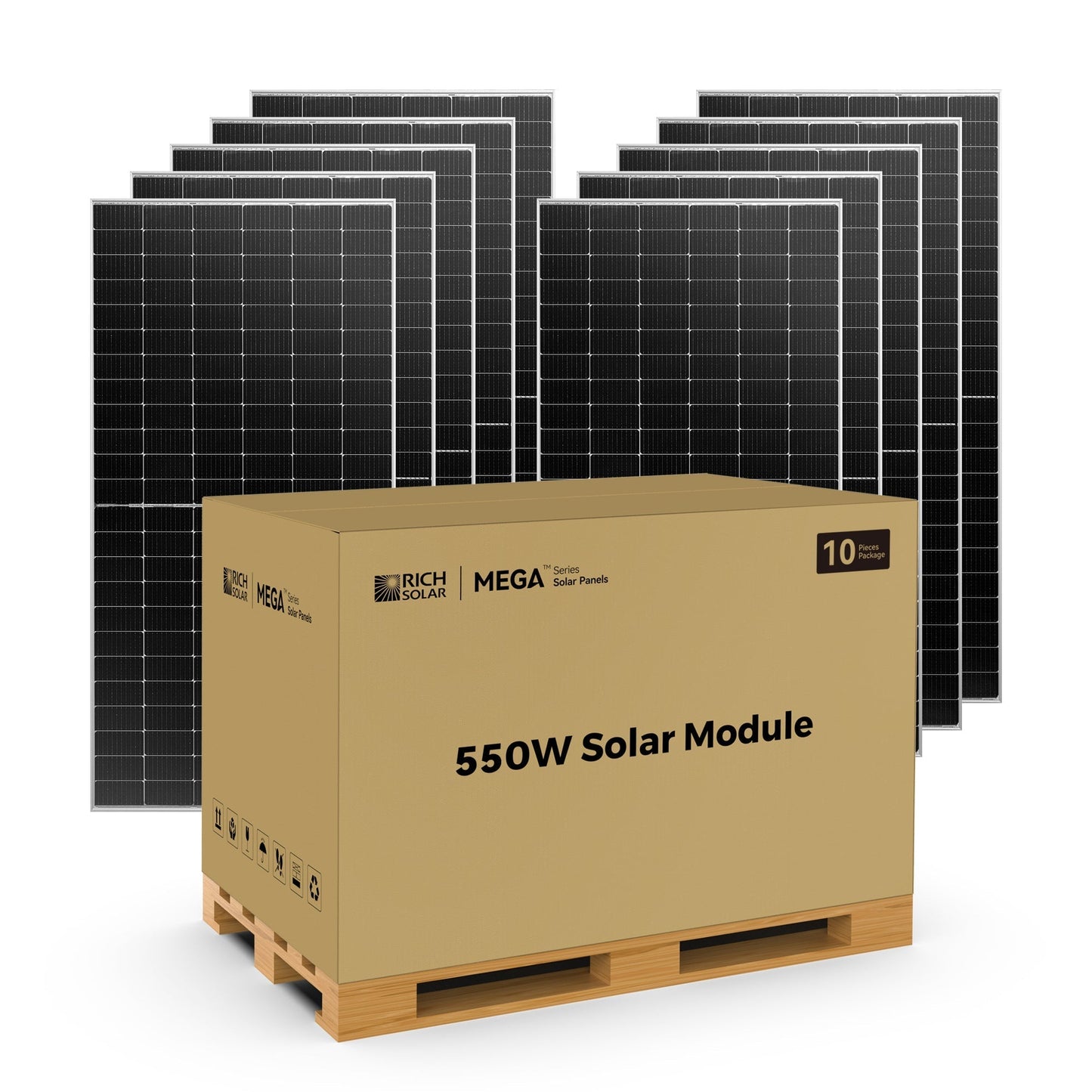

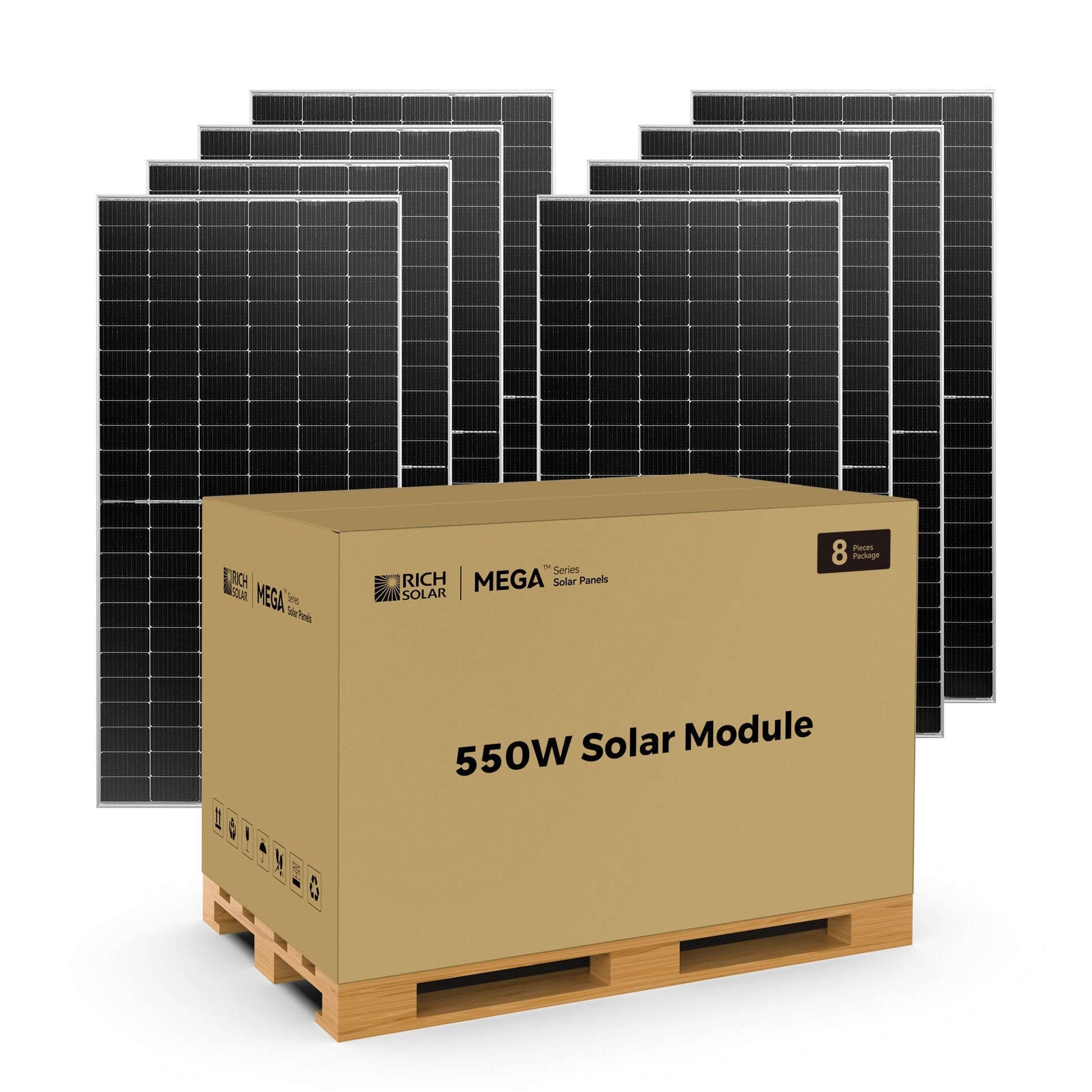

• Shipping: Pallet shipping only; reach out for alternative arrangements or quantities (1-800-831-9889, sales@richsolar.com)
