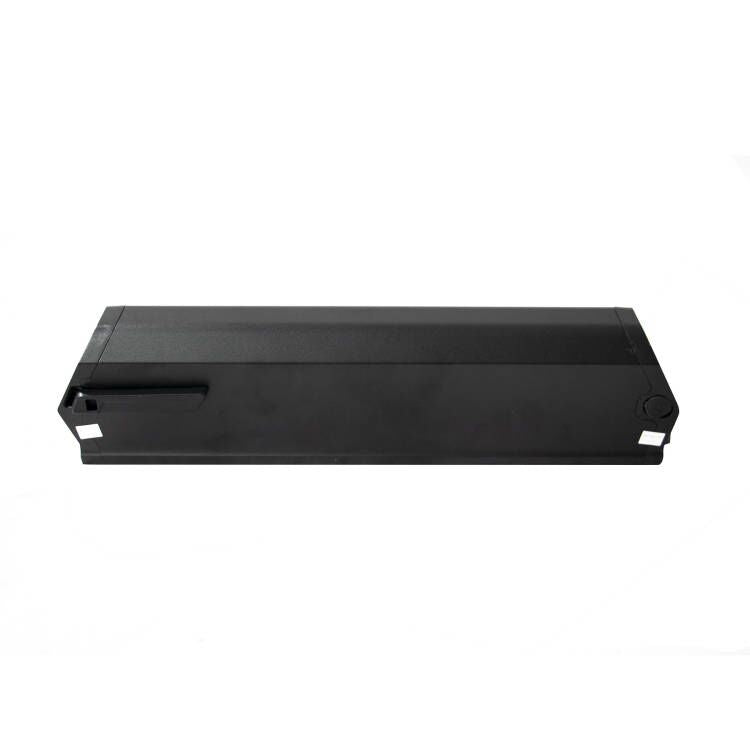

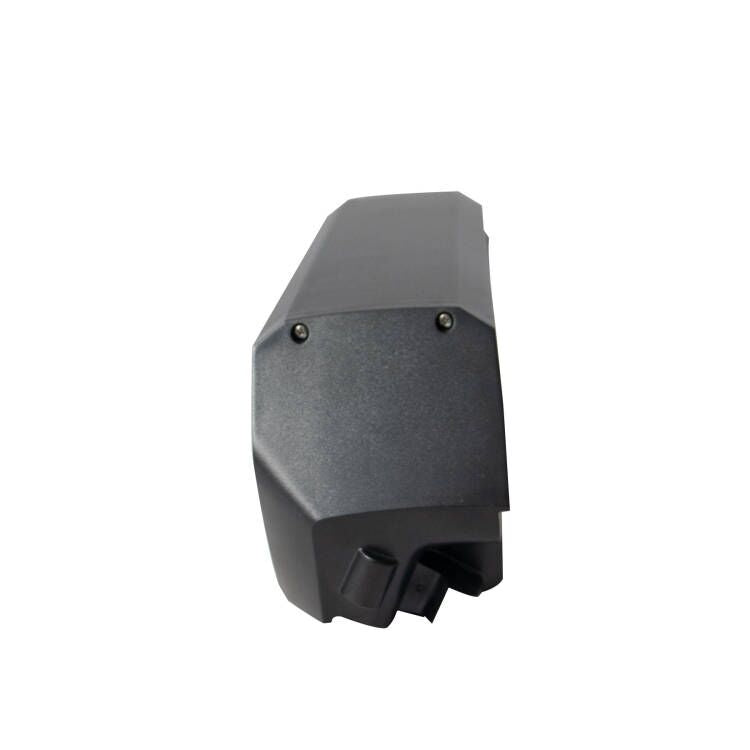

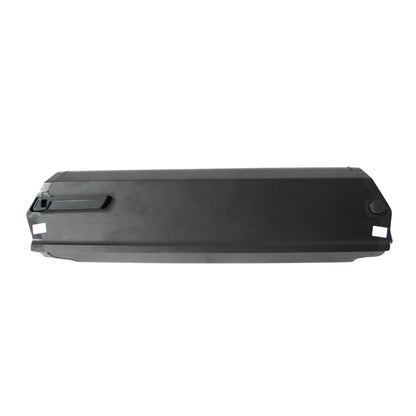

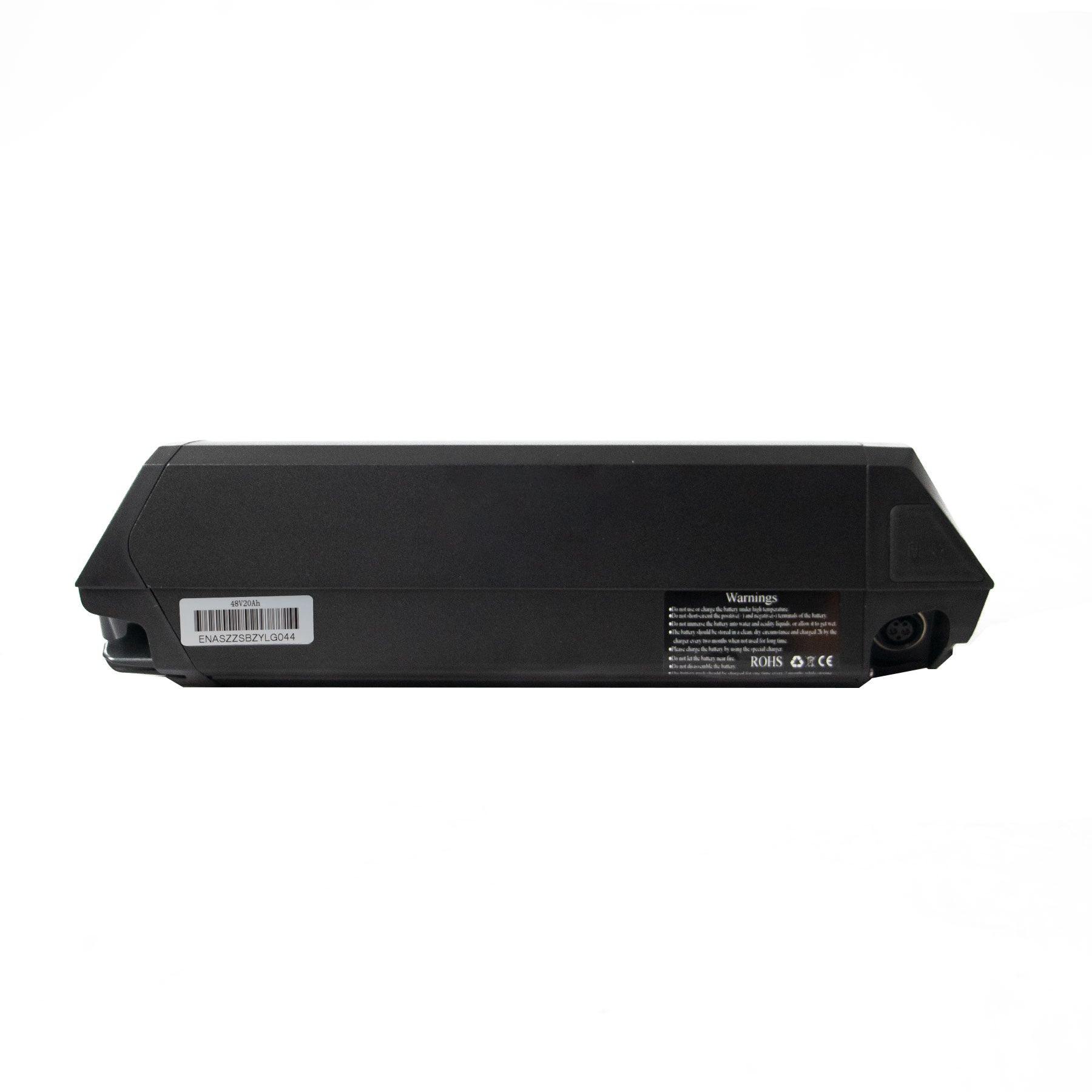

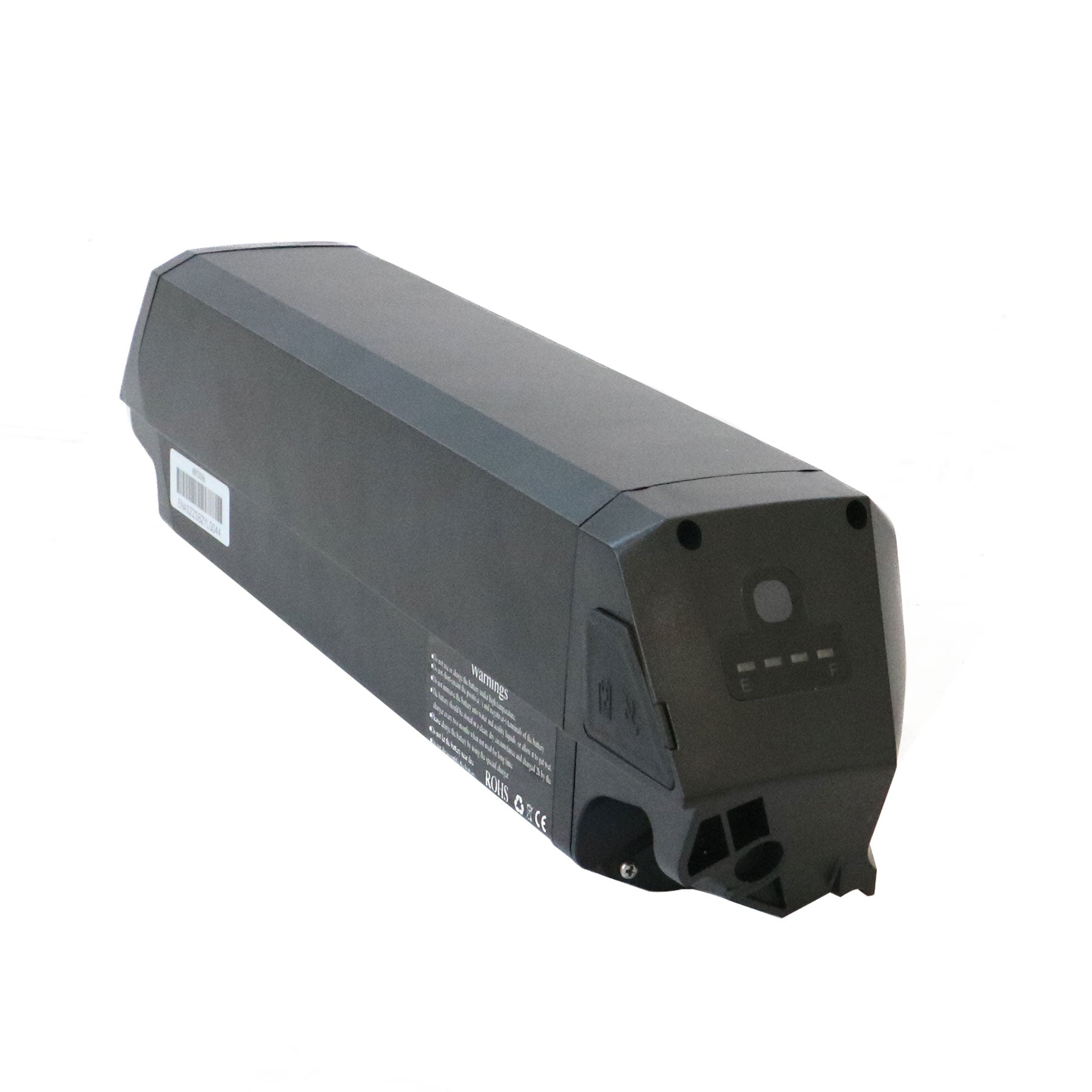

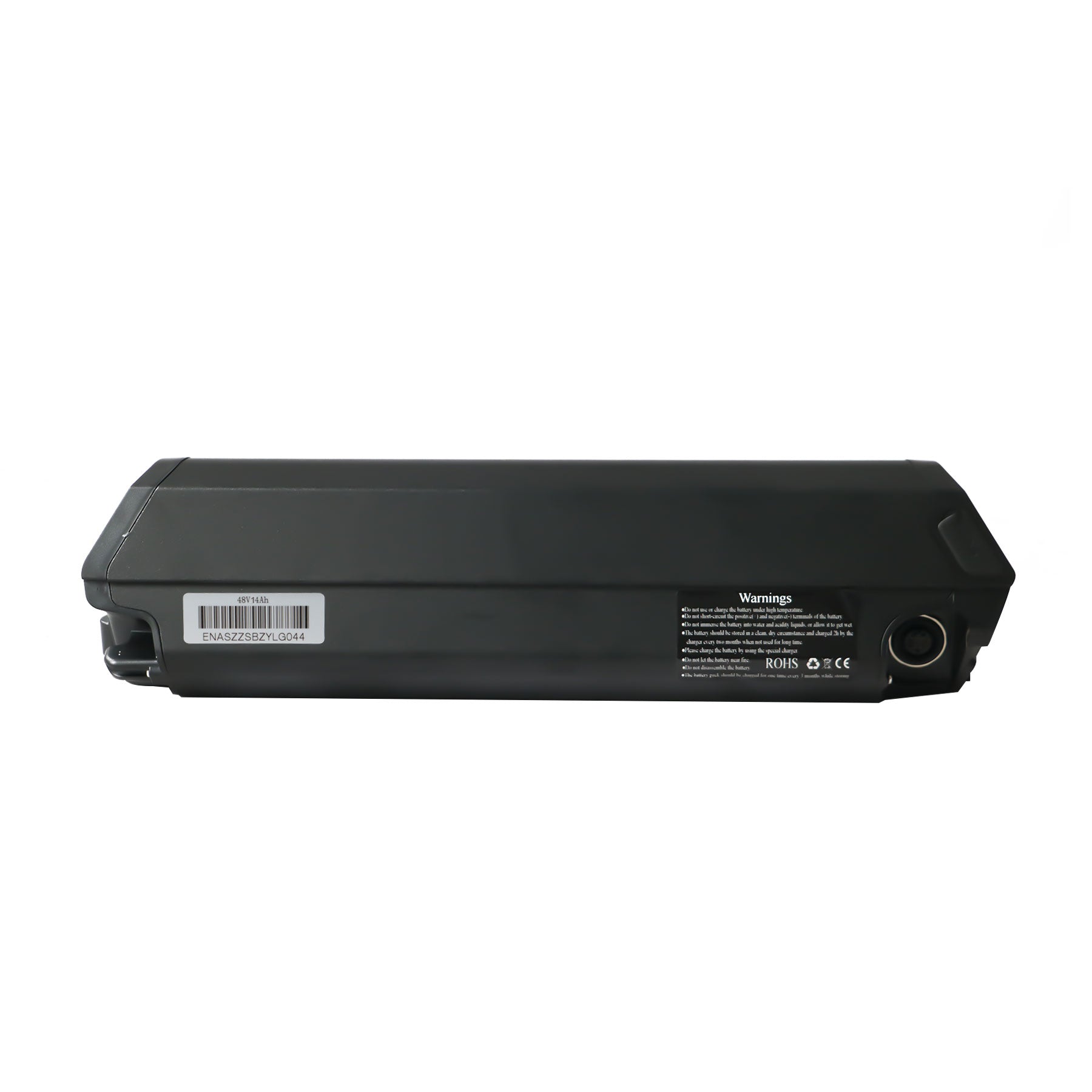

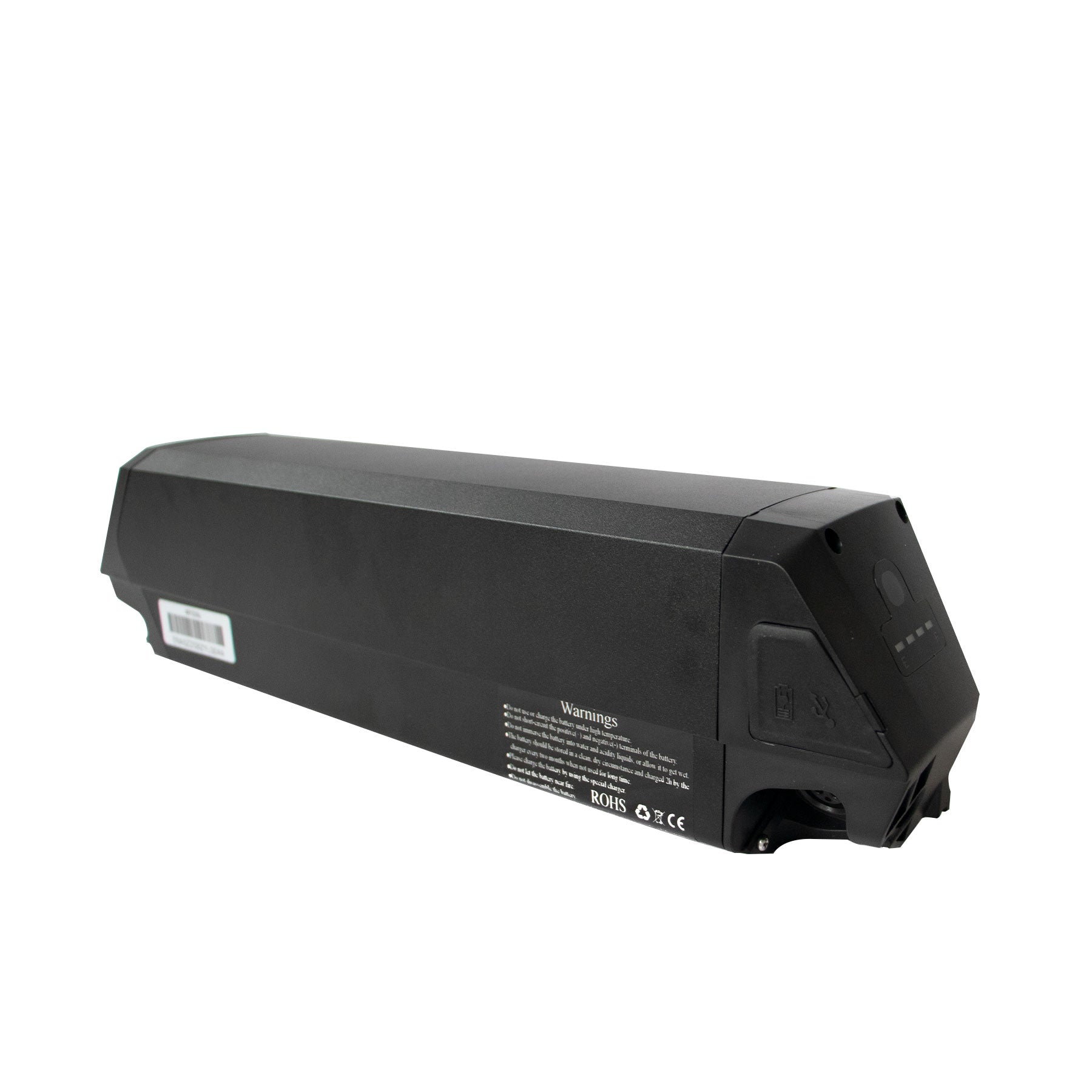

EUNORAU 48V 14Ah Battery (Samsung 35E) – Perfect Fit for Max Cargo, G20 Cargo, G30 Cargo

Overview

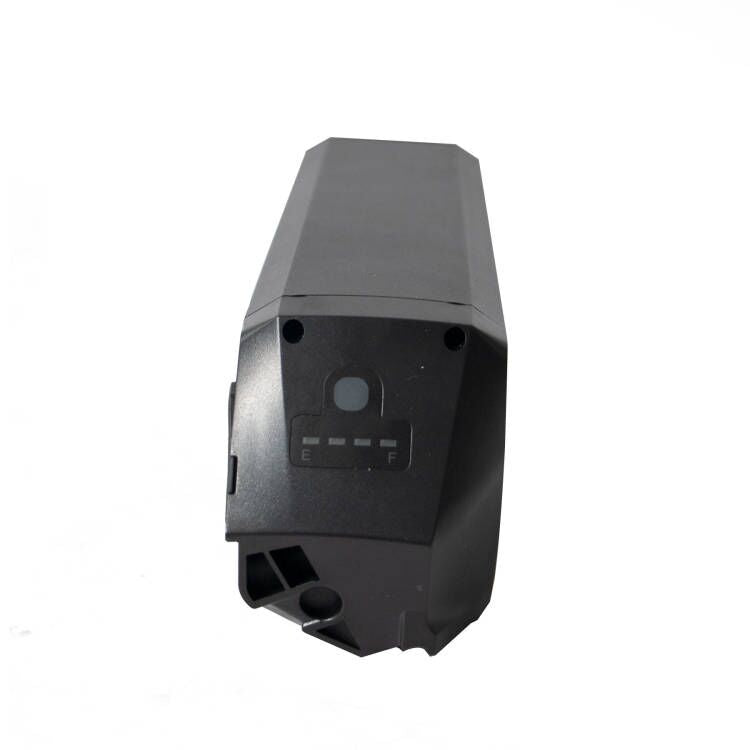

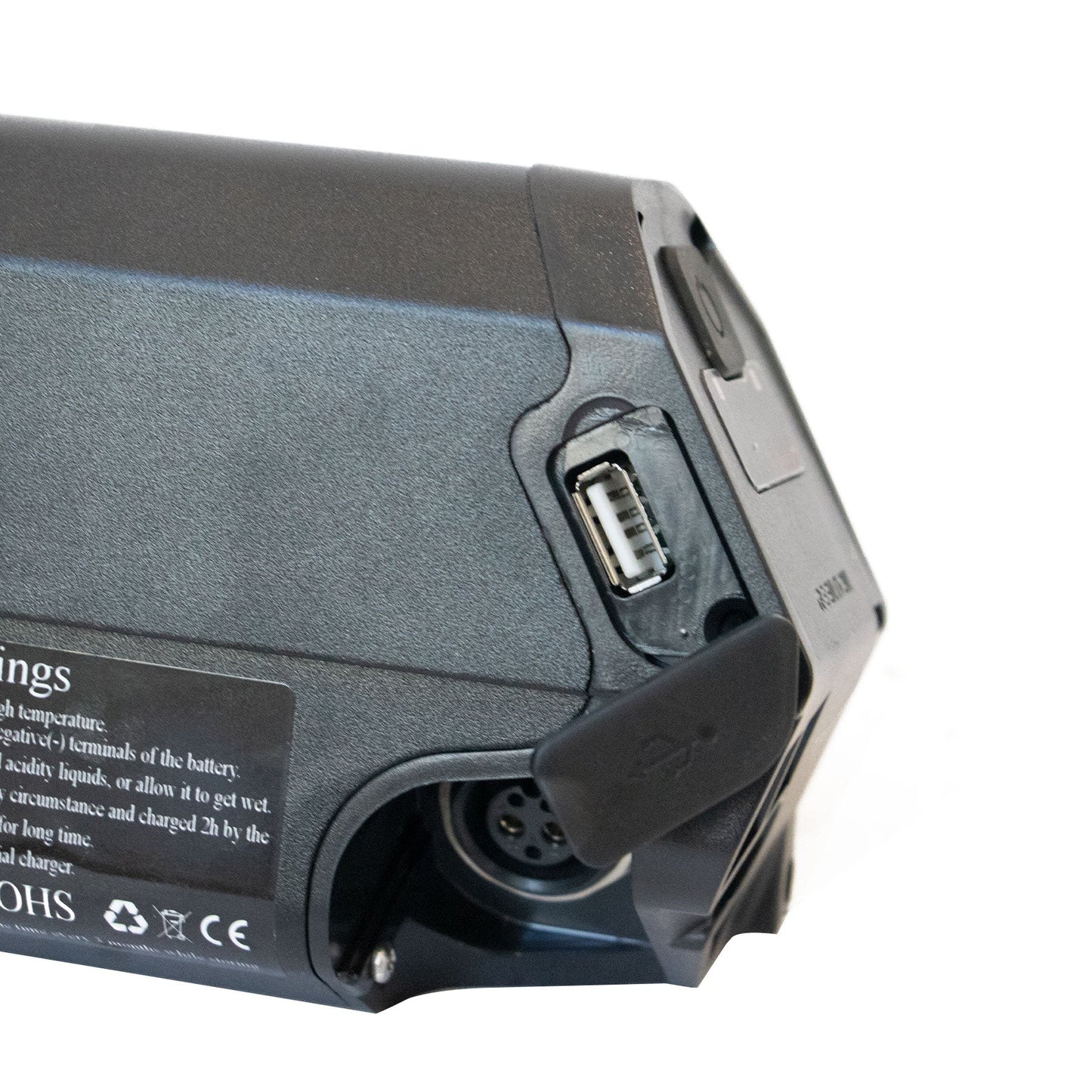

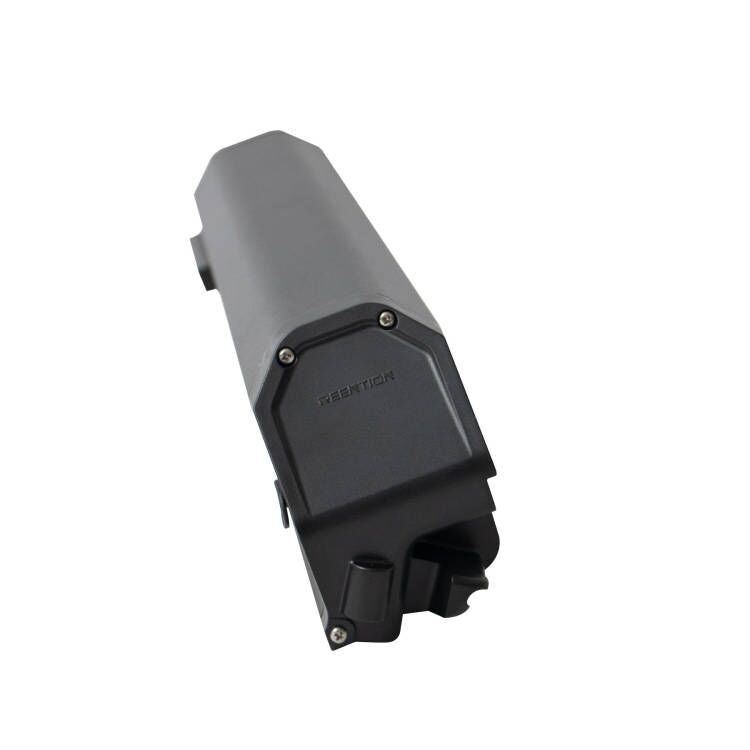

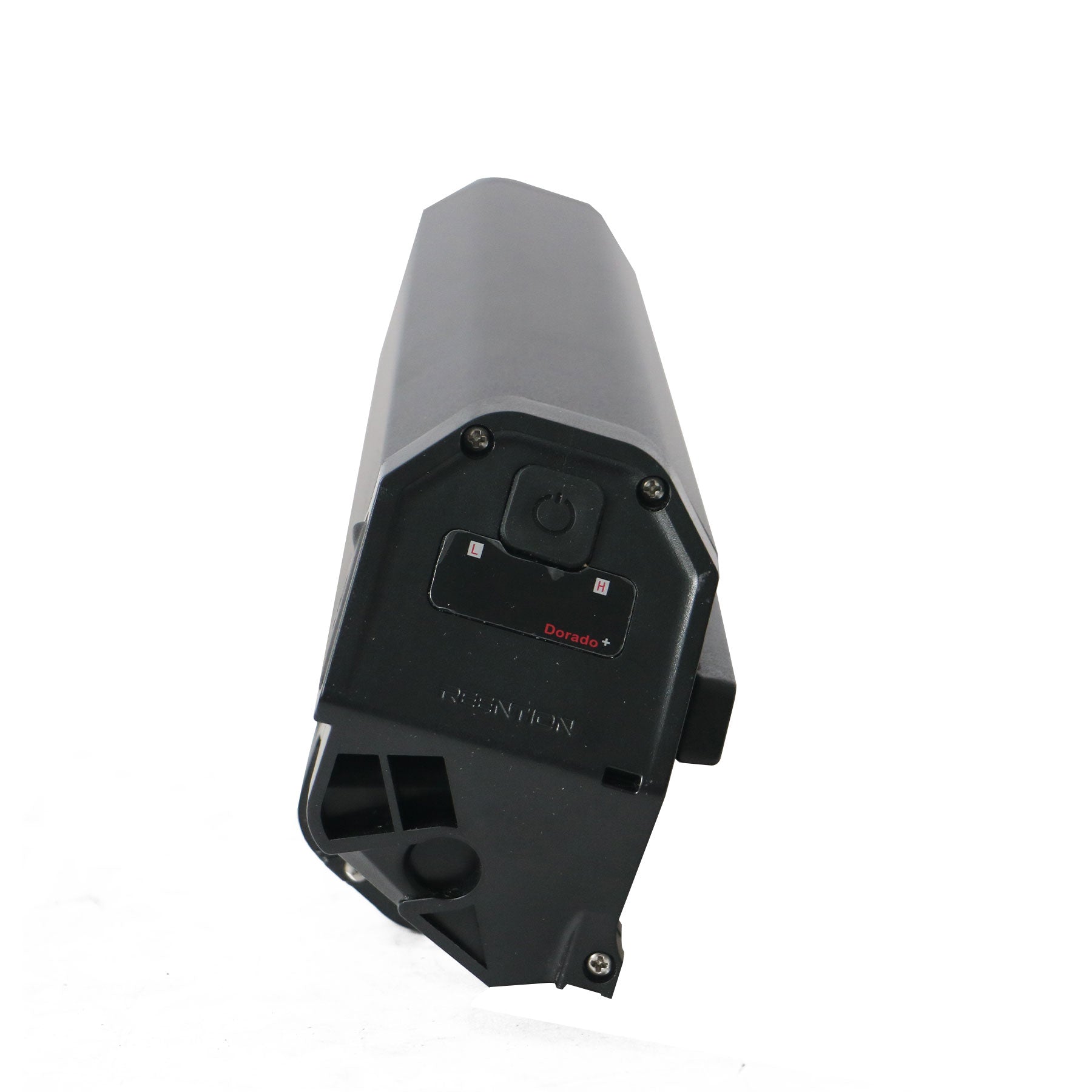

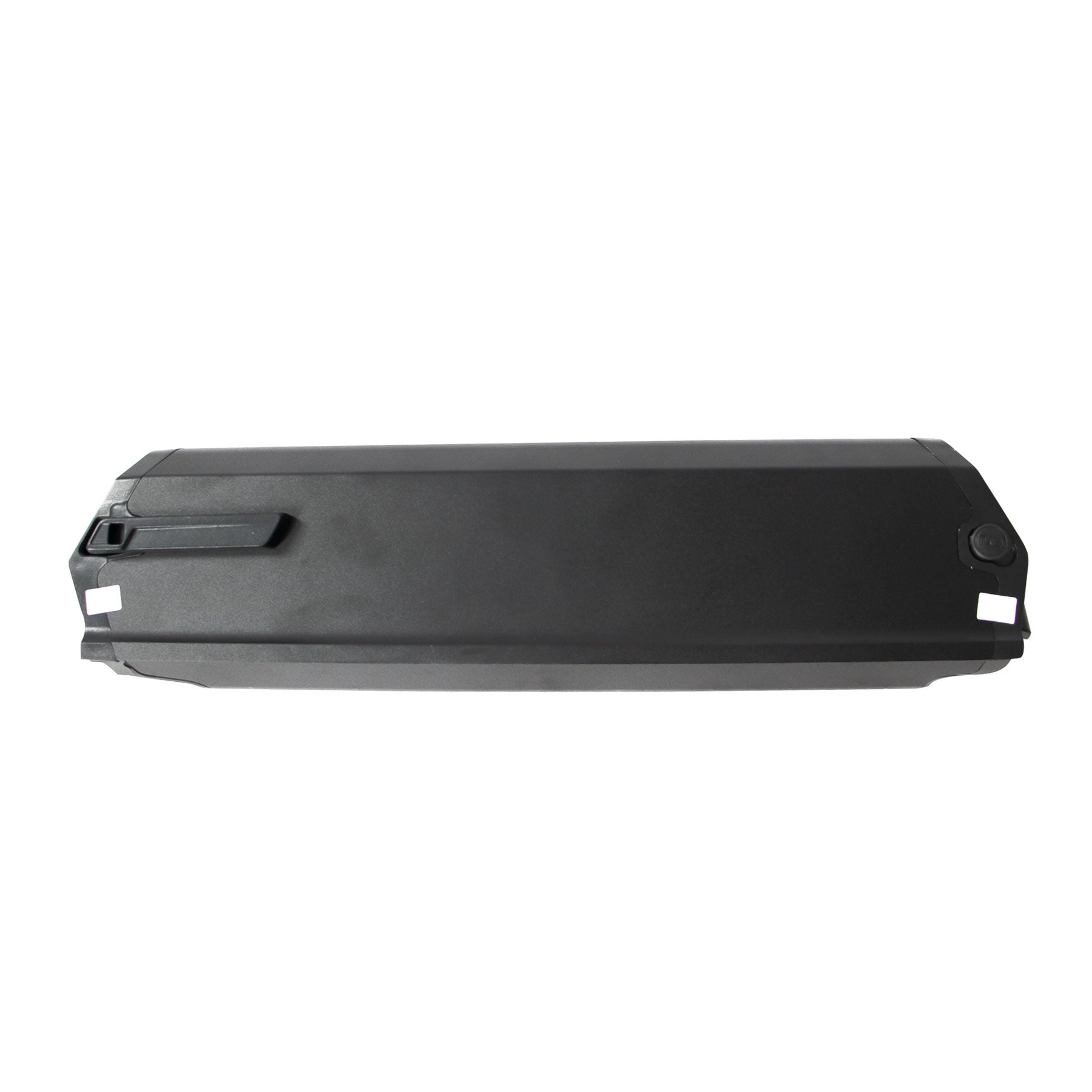

This 48V, 14Ah replacement battery features authentic Samsung 35E 18650 cells arranged in a 13S4P configuration (440 mm in length). It delivers 672 Wh of usable energy and includes a built-in BMS for cell balancing and essential safety protections, making it an ideal drop-in pack for supported cargo e-bikes.

Benefits

• Travel further on a single charge with 672 Wh for greater riding range.
• Manage heavy loads effortlessly with consistent performance, even on inclines.
• Reduce maintenance time with approximately 500 cycles of reliable lifespan.
• Enjoy peace of mind with multiple safety features that minimize risks during use.
• Experience easy installation with a compact size designed for compatible cargo models.

Features

• Authentic Samsung 35E 18650 lithium-ion cells for dependable performance.
• 13S4P design for a 48V nominal system and 14 Ah capacity.
• 672 Wh total energy for extended riding range on one charge.
• Integrated BMS ensuring cell balancing and protection for charge, discharge, current, and temperature.
• Compatible charge limit of 54.6 V with standard e-bike chargers.
• Continuous discharge capability for prolonged riding and higher short bursts for acceleration or steep hills.
• Compact size of 440 mm to fit the specified cargo bike models.

Specifications

• Model No.: 48V-14AH-440
• Cell Brand: Samsung (35E)
• Cell Type / Code: 18650 Li-ion
• Configuration: 13S4P
• Nominal Voltage: 48 V
• Capacity: 14 Ah
• Rated Energy: 672 Wh
• Pack Size (Length): 440 mm
• Inner Resistance: 75 m?
• Charger Voltage Limit: 54.6 V
• Continuous Discharge Current: 20 A
• 10-minute Discharge Current: 35 A
• 5-second Peak Discharge Current: 45 A
• Storage Temperature: -20 to 40 °C
• Operating Temperature – Charge: 0 to 45 °C
• Operating Temperature – Discharge: -20 to 60 °C
• Cycle Life: Approximately 500 cycles
• PCB / BMS Safety Functions:
  • Cell balancing
  • Over-charge protection
  • Over-discharge protection
  • Over-current protection
  • Temperature protection
  • Secondary protection
• Compatible with: Max Cargo, G20 Cargo, G30 Cargo electric bikes
