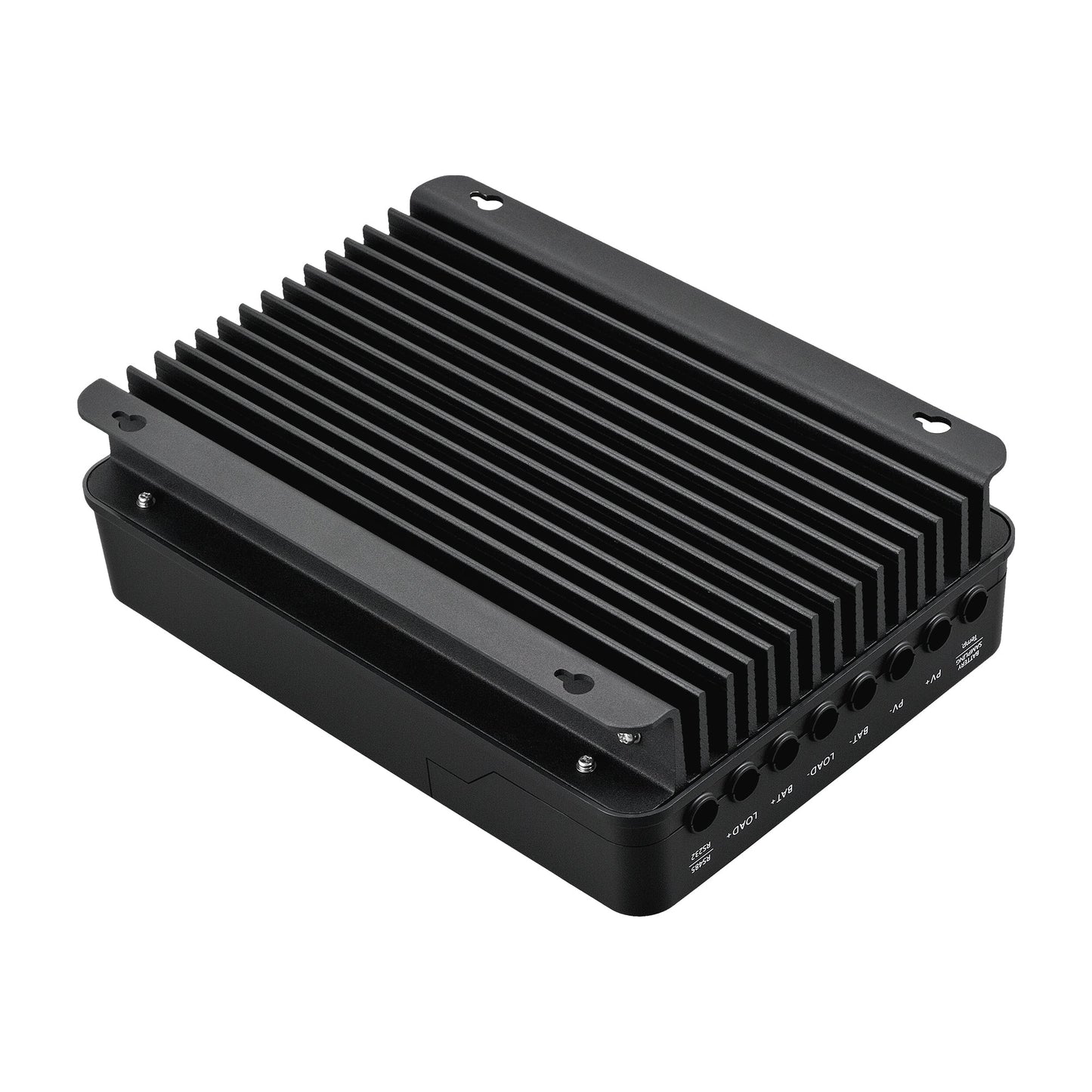

Advanced 60A MPPT Solar Charge Controller

Overview

This innovative MPPT solar charge controller seamlessly adjusts to 12V, 24V, 36V, or 48V systems, accommodating a variety of battery types. With cutting-edge MPPT technology, it optimizes solar energy utilization, providing real-time status updates via an LCD screen and LED indicators. Designed for safe and efficient off-grid power management, it offers essential protections and load control.

Benefits

• Maximize energy harvested from your solar panels through superior MPPT tracking and high efficiency.
• Simplify system management with automatic voltage detection and easily configurable settings.
• Safeguard your batteries and equipment with built-in protective features that minimize damage risks.
• Enjoy flexible installation in compact spaces due to the efficient die-cast aluminum housing.
• Easily monitor and troubleshoot your system's performance with the informative LCD display and LED indicators.

Features

• Automatically detects DC system voltages of 12V, 24V, 36V, or 48V.
• Compatible with sealed, gel, flooded, and lithium deep-cycle batteries.
• Delivers MPPT technology with up to 99% tracking efficiency and 98% peak conversion efficiency.
• Includes electronic protections against reverse polarity, overcharge, over-discharge, overload, short circuits, and reverse current.
• Features an LCD screen alongside various LED indicators for system status, programmable settings, and error notifications.
• Offers load control functions, including charging for over-discharged lithium batteries.
• Constructed with a die-cast aluminum enclosure for optimal heat dissipation.
• Equipped with an RS232 port for communication with the BT-1 Bluetooth module.

Specifications

• Rated battery current: 60 A
• Rated load current: 20 A
• Max solar input voltage: 150 V at 77°F, 145 V at -13°F
• Max solar input power:
  • 800 W at 12 V
  • 1600 W at 24 V
  • 2400 W at 36 V
  • 3200 W at 48 V
• Charge circuit voltage drop: ? 0.26 V
• Discharge circuit voltage drop: ? 0.15 V
• Operating temperature range: -31°F to 113°F
• Max terminal size: < 11 mm
• Overall dimensions: 11.2 x 8.1 x 3.7 in
• Net weight: 7.94 lb
